The transition from legacy silicon IGBTs to Silicon Carbide (SiC) and Gallium Nitride (GaN) switching circuits allows modern wholesale variable high voltage supplies to operate at switching frequencies exceeding 100 kHz. This slashes transformer volume by 45%, decreases heat dissipation requirements, and maintains sub-millivolt ripple at potential drops up to 100kV DC.
For sensitive analytical instruments like mass spectrometers, electron beam microscopes, and wafer inspection tools, voltage variation causes severe resolution loss. Contemporary power modules integrate active ripple attenuation and multi-stage LC filtering, achieving stability factors of <0.001% per hour and temperature coefficients below 10 ppm/°C.
Modern factory automation requires programmatic voltage ramp rates, current limiting loops, and continuous telemetry. Microprocessor-governed high-voltage units feature embedded Ethernet/LXI, RS-485, and USB interfaces executing standardized SCPI commands, giving system integrators microsecond-level pulse tailoring and instant fault isolation.
Integrating high-voltage electrical engineering with streamlined component networks to achieve unmatched price-performance ratios and rapid scaling.
Rapid custom potting mold preparation, winding transformer fabrication, and localized high-voltage dielectric validation shorten prototype cycles from 16 weeks to under 21 days.
100% full-load thermal stress screening, vacuum-potting partial discharge testing, and hi-pot endurance checks guarantee field failures below 120 DPPM across industrial shipments.
Direct proximity to global suppliers of high-voltage ceramic capacitors, precise voltage divider resistors, and insulated gate drivers cuts procurement lead time by 60% compared to Western counterparts.
Seamless transition from custom pilot-run orders of tens of modules to automated high-capacity rollouts of tens of thousands, backed by ISO9001 and ISO14001 certified plants.
Versatile voltage generation spanning fractions of a kilovolt to multi-hundred-kilovolt systems across major vertical industries.
Applications: Ion Implantation, E-Beam Lithography, Sputtering
During wafer inspection and focused ion beam (FIB) milling, the electrostatic lens demands absolute spatial consistency. Any thermal drift in high-voltage modules deflects the beam, resulting in measurement distortion. Variable high voltage units engineered with dual-polarity switching and ultra-stable ceramic voltage dividers maintain nanometer-level targeting across multi-day fab runs.
Applications: Industrial Scrubbers, Electrostatic Flocking, Powder Coat
Industrial coating and particulate scrubbing regularly induce transient air-gap breakdowns and arcs. Legacy power supplies trip or sustain damage under direct short circuits. Variable HV power supplies equipped with fast arc detection throttle voltage output in less than 5 microseconds, extinguishing the arc and returning to designated bias instantly without halting assembly belts.
Applications: X-Ray Generators, CT Scanning, Mass Spectrometry
Medical imaging demands high power density paired with zero electrical leakage. Custom high-voltage rack systems utilize hermetically sealed silicone or oil potting to resist atmospheric changes, delivering repeatable kilovolt acceleration gradients for X-ray tube filaments while meeting IEC 60601-1 safety barriers.
Anticipating next-generation testing challenges through predictive safety telemetry, miniaturization, and software-defined regulation.
Next-generation high-voltage modules now incorporate micro-edge sensors tracking internal dielectric leakage current, board temperatures, and corona discharge events in real-time. Onboard machine learning models forecast insulation degradation before catastrophic breakdown occurs, preventing unscheduled line shutdowns in 24/7 manufacturing plants.
Traditional hand-wound high-voltage transformers are being replaced by multi-layer PCB planar magnetics combined with high-thermal-conductivity nanocomposite potting resins. This innovation eliminates air voids, doubles the breakdown voltage barrier, and permits up to 30% reduction in chassis footprint without reducing electrical clearances.
As electric vehicle battery packs, aerostat capacitors, and grid-tied systems scale past 1,000V DC, high-voltage test supplies must efficiently discharge high capacitances. Modern variable power supplies feature regenerative active-front-end stages that return over 92% of stored capacitive energy back to the AC grid during cycling.
Essential checklist parameters for global procurement managers specifying variable high-voltage platforms.
Assess total joules stored in the output capacitor filter stage. Devices exceeding 10 Joules require emergency interlock loops, automated bleeder resistors, and earth grounding poles to meet occupational safety directives.
Identify whether your testing protocol requires fixed positive, fixed negative, reversible, or bipolar four-quadrant operation. Slew rates vary widely from milliseconds to kilovolts-per-microsecond depending on capacitive loading.
Always verify supplier capability for ISO/IEC 17025 accredited calibration reports, hi-pot baseline logs, and thermal run-in test certificates with matching serial number identification before clearing export dispatch.
High voltage gear requires hermetic moisture barriers, anti-vibration crating, and desiccants to preserve unsealed insulator oil baths and solid resin encapsulations during maritime transit.
Comprehensive engineering and commercial answers to streamline your evaluation process.

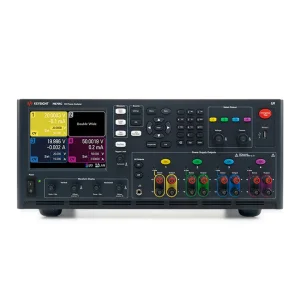

Complete your laboratory test rig with original, calibrated DC power analyzers, spectrum equipment, and precision measurement platforms.
