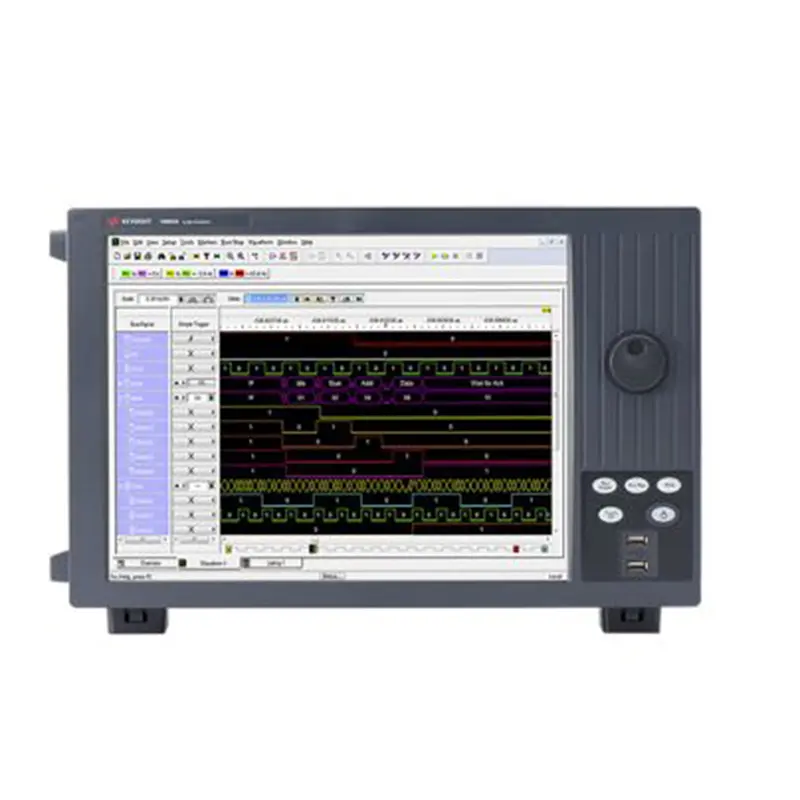

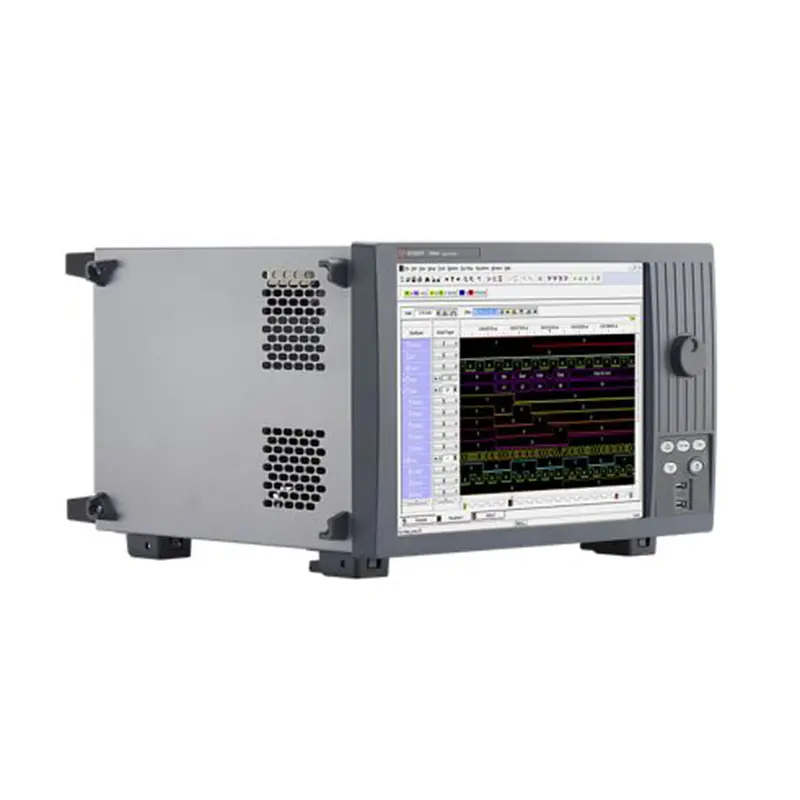

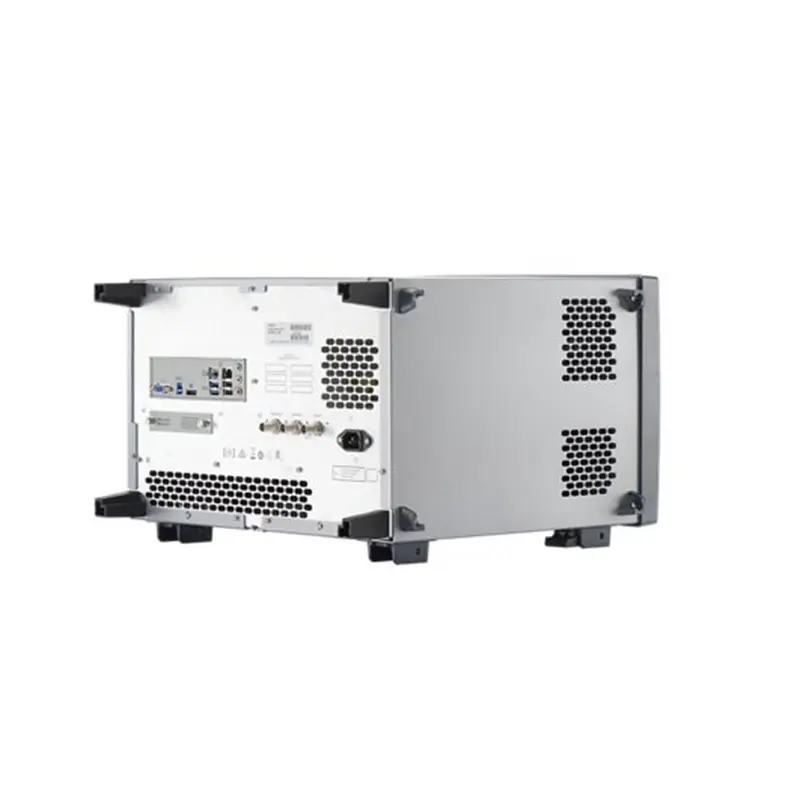

| Parameter | Specification Details |
|---|---|
| Type | Portable Logic Analyzer |
| Number of Channels | 34 |
| Maximum Timing Speed | 5 GHz Conventional / 12.5 GHz Timing Zoom |
| Maximum Memory Depth | 128 Mpts |
| Supported Protocols | DDR4, DDR3, DDR2, DDR, LPDDR4, LPDDR3, LPDDR2, LPDDR |
| Signal Type | Single-ended differential |
| Pattern Generation (Stimulus) | No |
| Specifications | 16861A | 16862A | 16863A | 16864A |
|---|---|---|---|---|
| Channels | 34 (32 data, 2 clock) | 68 (64 data, 4 clock) | 102 (96 data, 6 clock) | 136 (128 data, 8 clock) |
| Single Clock: Clock (Pod 1) | 1 | 1 | 1 | 1 |
| Single Clock: Clock Qualifiers | 1 | 3 | 4 | 4 |
| Single Clock: Reset Qualifier | 0 | 0 | 0 | 1 |
| Multi-Clock: Clocks/Qualifiers | 2 | 4 | 4 | 4 |
| Multi-Clock: Reset Qualifier | 0 | 0 | 0 | 0 |
| Height | 291.57 mm (11.48 in) |
| Width | 450.65 mm (17.74 in) *Add 1.25 inches to account for probes plugged into the right side |
| Depth | 456.54 mm (17.97 in) Max |
| Net Weight | 12.5 kg (27.6 lbs) |
| Max Shipping Weight | 23.3 kg (51 lbs) |
