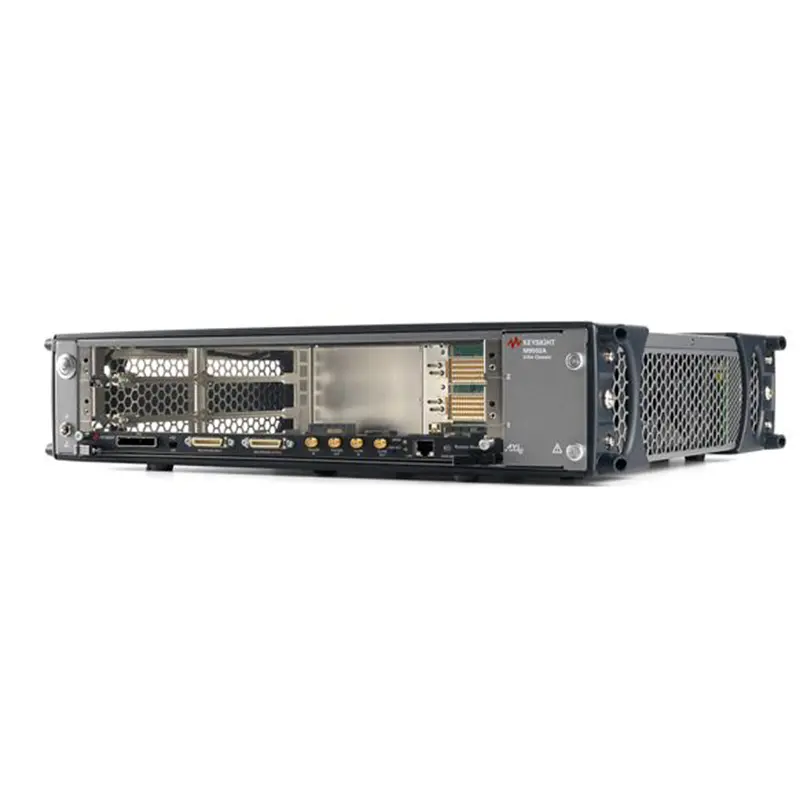

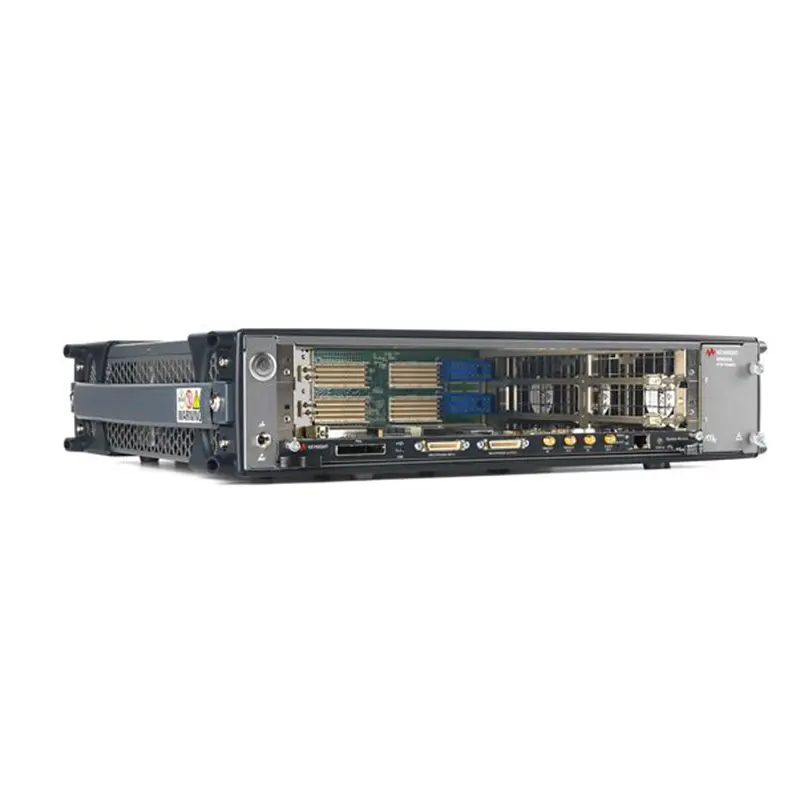

Original Keysight M9502A AXIe 2 Slot Chassis Supplier Wholesale Distributor Buy In Stock Modular Test Platform Factory Price

Overview

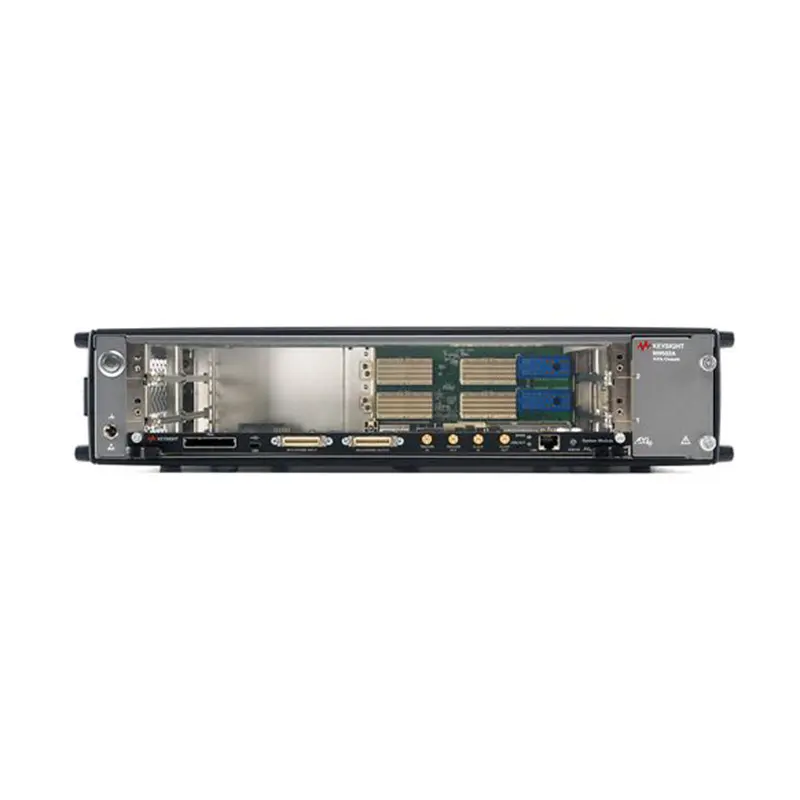

The AXIe 1.0 specification is completely compatible with the M9502A AXIe Chassis. An embedded system module (ESM) that doesn't occupy an instrument slot is one of its features. The chassis management tasks outlined in the AXIe specification are carried out by this system module. It also contains external clock and trigger connectors, Keysight-only inter-chassis synchronization connectors, and PCI and LAN interfaces for connecting to an external computer.

The M9502A's local bus offers the maximum of 62 pairs permitted by the AXIe specification. To maximize system bandwidth, pair the M9502A with the M9048A PCIe Desktop Adaptor.

For portable applications that demand a higher level of AXIe performance, the M9502A is ideal. The instrument module slots are positioned horizontally to reduce rack space, and it can also be mounted in a rack. The chassis may be racked in under 2U of space thanks to this configuration and a high-performance cooling system. Because the fan tray and power supply may be taken out while the chassis is still in the rack, the M9502A is also made to be readily maintained.

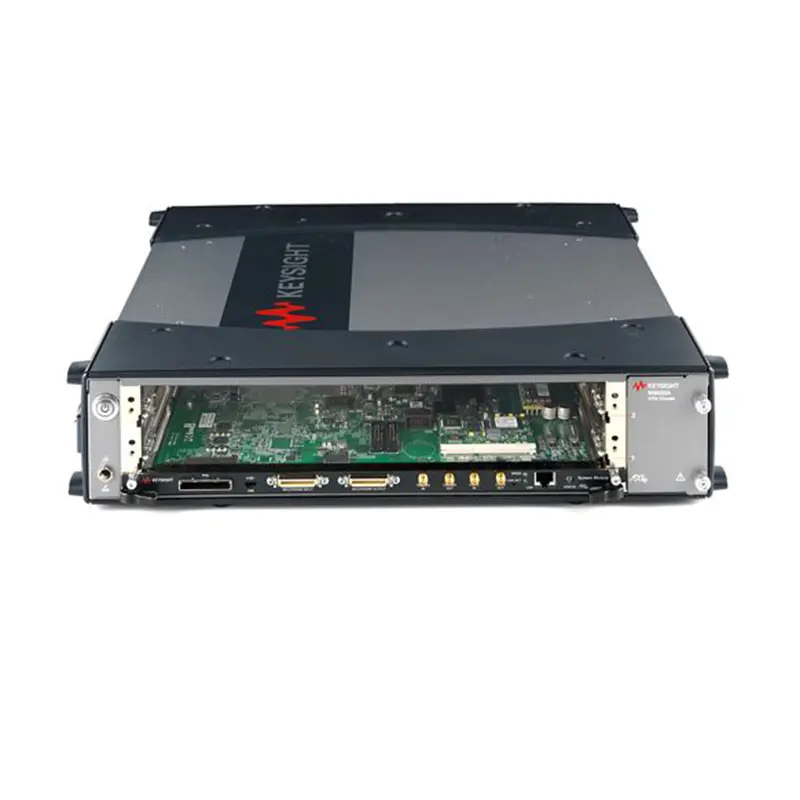

Dedicated ESM: Embedded system module executes chassis management without occupying an instrument slot.

High-Speed Bus: Supports the maximum 62 local bus pairs with up to 4 GB/s system throughput.

Compact 2U Design: Horizontal module orientation optimized for both benchtop portability and rack-mount integration.

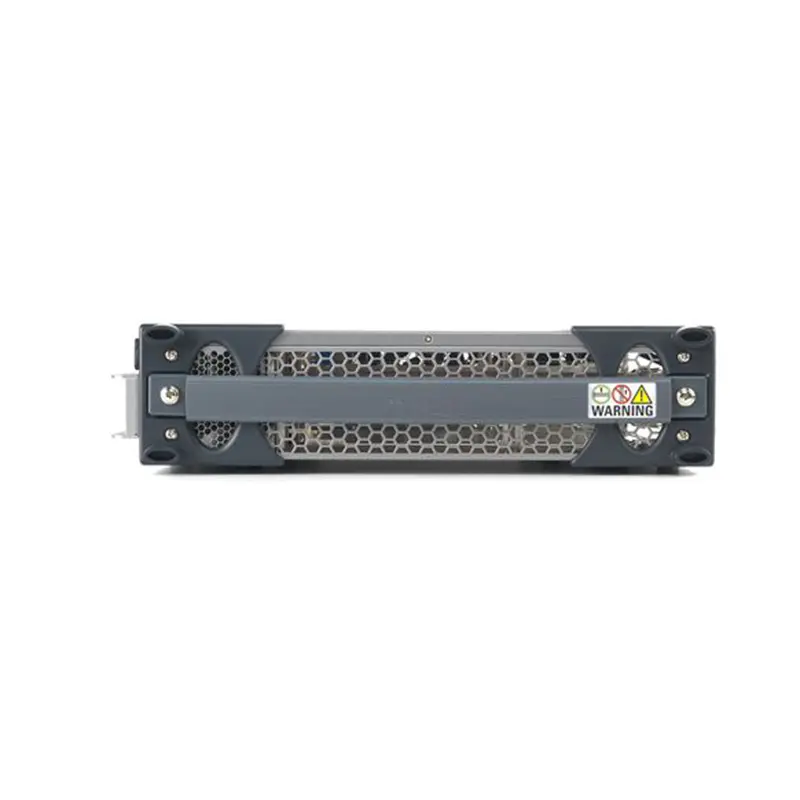

Easy Maintenance: Fan tray and power supply can be replaced directly while remaining installed in the rack.

Specifications

Bandwidth	4 GB/s	Connectivity	LAN, PCIe
Description	M9502A 2 - slot AXle chassis for transportable applications. Includes embedded system module and Gen 2, x8 link to external controller.
Form Factor	AXle	Platform	AXle
Height	2U	Type	AXI Chassis
Slots	2 Slots

Models & Options

Model	Description
M9502A	AXIe chassis: 2 - slot with embedded system
M9505A	AXIe chassis: 5 - slot with embedded system
Opt 900 - 932	Optional power cords
Opt U20	ESM USB 2.0 Includes USB cable

Delivery & Dimensions

Model	Weight	Size with bumpers	Size without bumpers
M9502A	7.7 kg (17 lbs)	462 mm W x 102 mm H x 414 mm D	432 mm W x 87 mm H x 414 mm D
M9505A	13.3 kg (29.3 lbs)	462 mm W x 193 mm H x 436 mm D	432 mm W x 177 mm H x 436 mm D

Manuals & Resources

Keysight DAQ970A DAQ973A Data Acquisition System Document

keysight DAQ970A_DAQ973A Data Acquisition System.pdf

Download Resource

Keysight DAQ970A DAQ973A Security Specification Document

keysight DAQ970A、DAQ973A security.pdf

Download Resource

Frequently Asked Questions

Does the Embedded System Module (ESM) take up any instrument slots in the M9502A?

No, the embedded system module (ESM) does not occupy an instrument slot. It handles all chassis management functions outlined in the AXIe specification independently, leaving all instrument slots fully available for user hardware.

What bandwidth and external connection interfaces are supported?

The M9502A delivers up to 4 GB/s system bandwidth via a Gen 2, x8 link to an external controller. It supports LAN and PCIe interfaces, along with the maximum 62 local bus pairs permitted by the AXIe specification.

How much rack space is required to install the M9502A chassis?

The M9502A can be mounted in under 2U of rack space. Its horizontal slot configuration and high-performance cooling system allow efficient thermal management in tight rack installations.

Can maintenance be performed while the chassis remains mounted in a rack?

Yes, both the fan tray and the power supply unit are engineered to be easily removed and serviced while the chassis remains mounted inside the equipment rack.

What are the dimensions and weight differences between the M9502A and M9505A?

The 2-slot M9502A weighs 7.7 kg (17 lbs) with a height of 87 mm (without bumpers) or 102 mm (with bumpers). The 5-slot M9505A weighs 13.3 kg (29.3 lbs) and has a height of 177 mm (without bumpers) or 193 mm (with bumpers).
