Custom Rohde & Schwarz R&S®ZNLE4 vector network analyzer Manufacturer, Suppliers

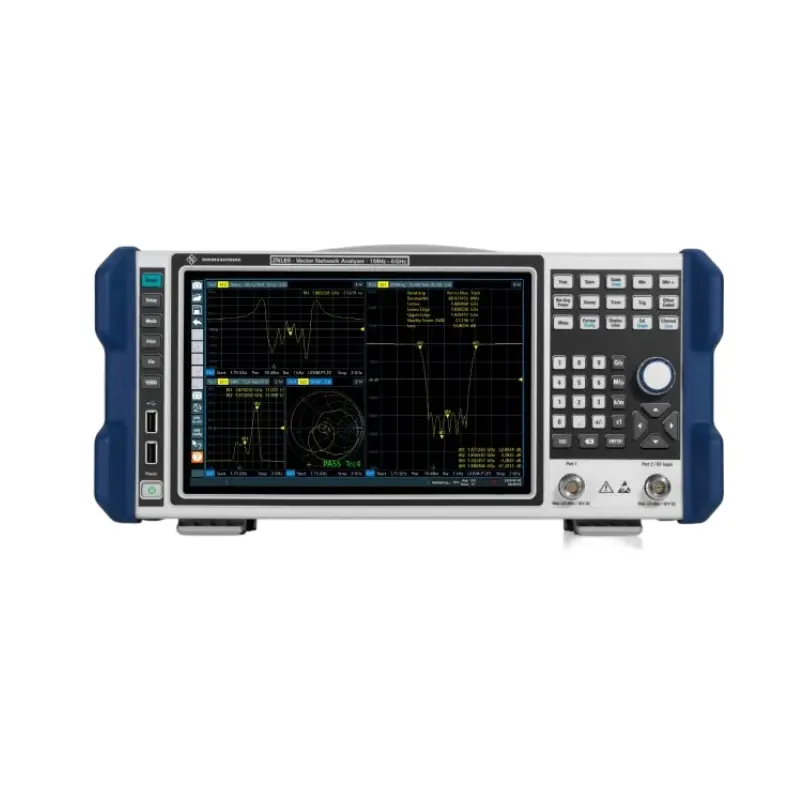

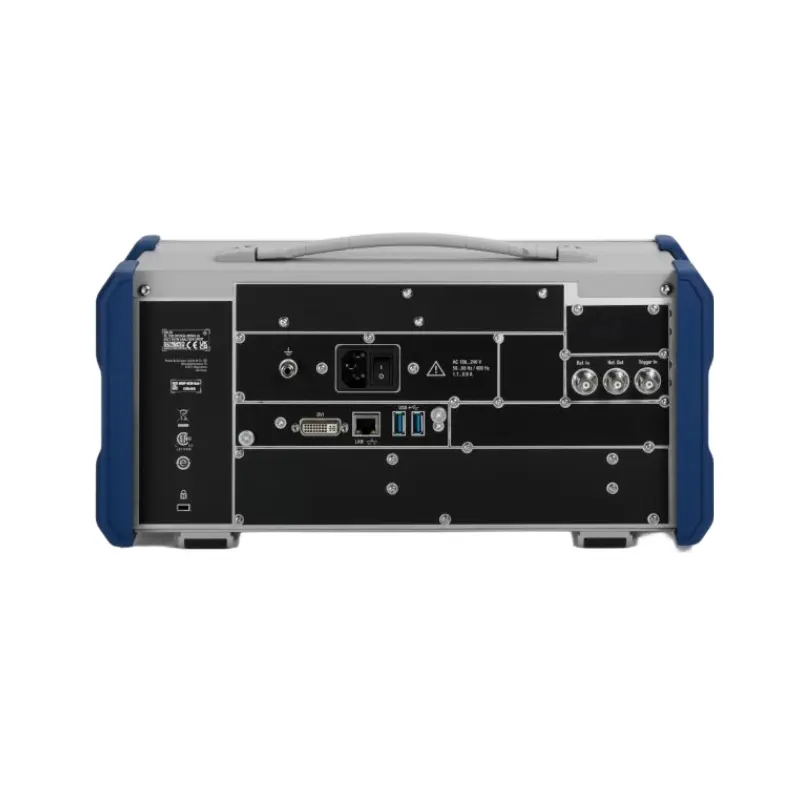

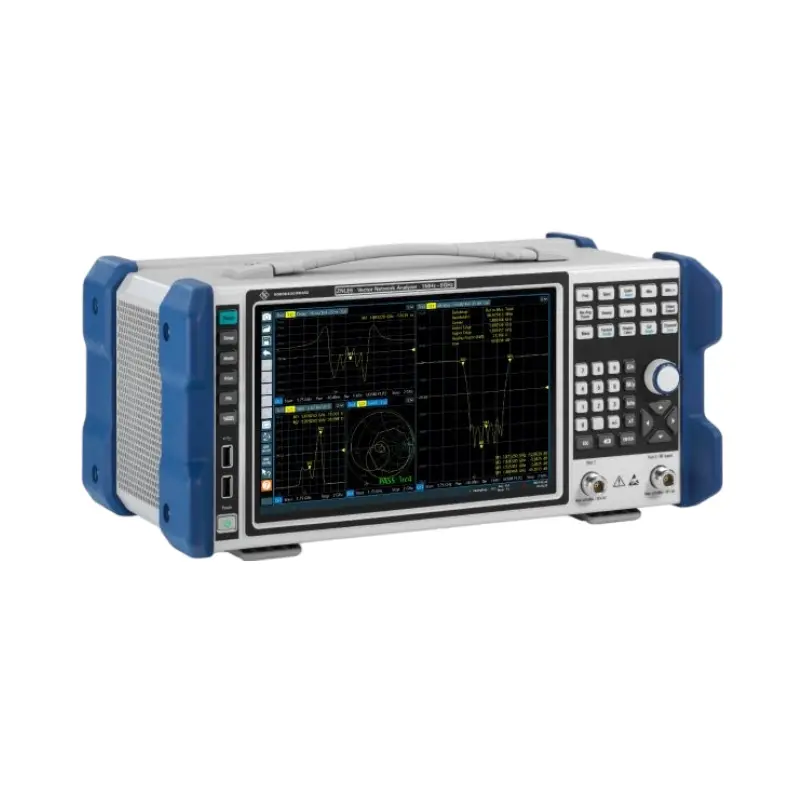

The Rohde & Schwarz R&S®ZNLE4 is a vector network analyzer offering a frequency range from 100 kHz to 20 GHz. Equipped with two ports for bidirectional measurements, it enables precise detection of S11, S21, S12, and S22 parameters for passive components. As a fully self-contained analyzer, it requires no external PC or monitor for configuration, featuring a powerful integrated PC platform running Windows 10.

Send Inquiry

Product Description

Rohde & Schwarz R&S®ZNLE4 is a vector network analyzer introduced by Rohde & Schwarz. Below is an overview:

Basic Information

Brand: Rohde & Schwarz.

Frequency Range: 100 kHz to 20 GHz.

Number of Ports: 2 ports for bidirectional measurement of S11, S21, S12, and S22 parameters on passive components.

Performance Features

Low Trace Noise: Typical value of 0.001 dB (at 10 kHz measurement bandwidth), enabling highly accurate, stable, and repeatable measurements even at wider intermediate frequency bandwidths.

High-speed Measurement: Performs rapid measurements using large bandwidths while delivering excellent trace stability.

Product Advantages

Standalone Operation: Configure measurement settings without an external PC or monitor. The instrument features a powerful integrated PC platform running Windows 10, functioning as a complete standalone analyzer. Its solid-state drive ensures fast boot times and reliability.

Simple Operation: Configuration requires just three steps: select the frequency range, decide whether a GPIB interface is needed, and determine if time domain analysis or fault location measurement is required. Its innovative user interface makes both calibration and measurement setup extremely easy.

Convenient Calibration: Rohde & Schwarz offers manual calibration kits (R&S®ZN-Z1xx) and automatic calibration units (R&S®ZN-ZE1xx). Automatic calibration enables quick and convenient calibration, reducing operator errors and improving calibration repeatability.

Applications

Due to its high performance and cost-effectiveness, it is suitable for basic vector network analysis applications such as production testing, education, and cost-sensitive environments requiring accurate measurements.

Specifications

Specification	Details
Frequency Range	100 kHz to 4.5 GHz (with R&S®ZNLE - B100 option, can be extended down to 100 kHz)
Number of Ports	2
Measurement Bandwidth	1 Hz to 500 kHz (stepped in 1/1.5/2/3/5/7)
Frequency Resolution	1 Hz
Number of Measurement Points per Trace	1 to 5001
Dynamic Range	Up to > 120 dB (typical value at 10 Hz measurement bandwidth)
Output Power	Up to +2 dBm (typical value)
Measurement Speed	201 measurement points, 100 kHz IFBW, 200 MHz span, full two - port calibration: 9.6 ms
Data Transfer Time	IEC/IEEE (201 measurement points): 3.0 ms (typical value); HiSLIP (with 1 Gbit/s LAN): 2.5 ms (typical value)
Operating System	Windows 10
Dimensions	Depth: 24 cm
Weight	Approximately 6 kg

Models

Models: Rohde & Schwarz R&S®ZNLE4 vector network analyzer

• Broad frequency range: from 100 kHz up to 20 GHz

• 2-port vector network analyzer for bidirectional measurements

• Easy to configure and use

• Compact and cost-efficient

Delivery Information

Dimension: 408×186×235mm

Weight: 6kg

Battery parameters: Equipped with batteries and DC power supply

Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.

Manuals + Resources

Rohde & Schwarz R&S®ZNLE4 vector network analyzer datasheet.pdf

Download

Rohde & Schwarz R&S®ZNLE4 vector network analyzer brochures.pdf

Download

Frequently Asked Questions

What is the frequency range of the Rohde & Schwarz R&S®ZNLE4?

The R&S®ZNLE4 features a broad frequency range from 100 kHz up to 20 GHz, with specific base models covering 100 kHz to 4.5 GHz (extendable down to 100 kHz via the R&S®ZNLE-B100 option).

Does the R&S®ZNLE4 require an external PC or monitor to run measurements?

No external PC or monitor is required. The instrument is engineered for complete standalone operation, powered by a built-in PC platform running Windows 10 with a fast, reliable solid-state drive.

What S-parameters can be measured with the 2-port configuration?

The unit provides 2 ports configured for complete bidirectional measurement of S11, S21, S12, and S22 parameters, making it ideal for characterizing passive RF components.

What calibration methods are compatible with this vector network analyzer?

The instrument supports both manual calibration kits (R&S®ZN-Z1xx) and automatic calibration units (R&S®ZN-ZE1xx). Automatic calibration provides rapid setup, minimizes human error, and ensures repeatability.

What are the dimensions and portability details of the unit?

The instrument has dimensions of 408 × 186 × 235 mm (depth: 24 cm) and weighs approximately 6 kg. It comes equipped with batteries and a DC power supply for flexible benchtop and field utility.
