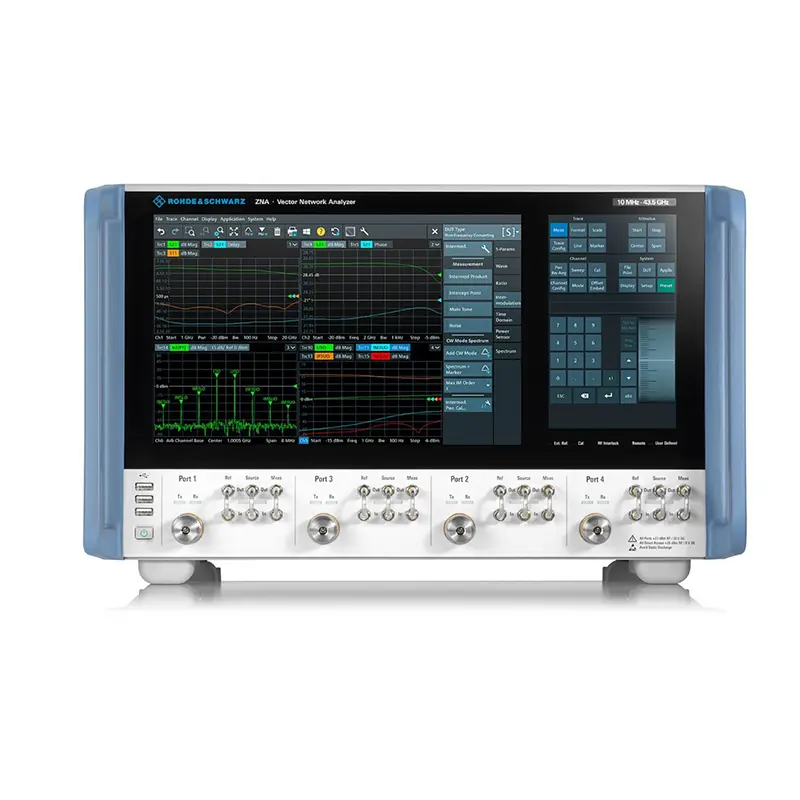

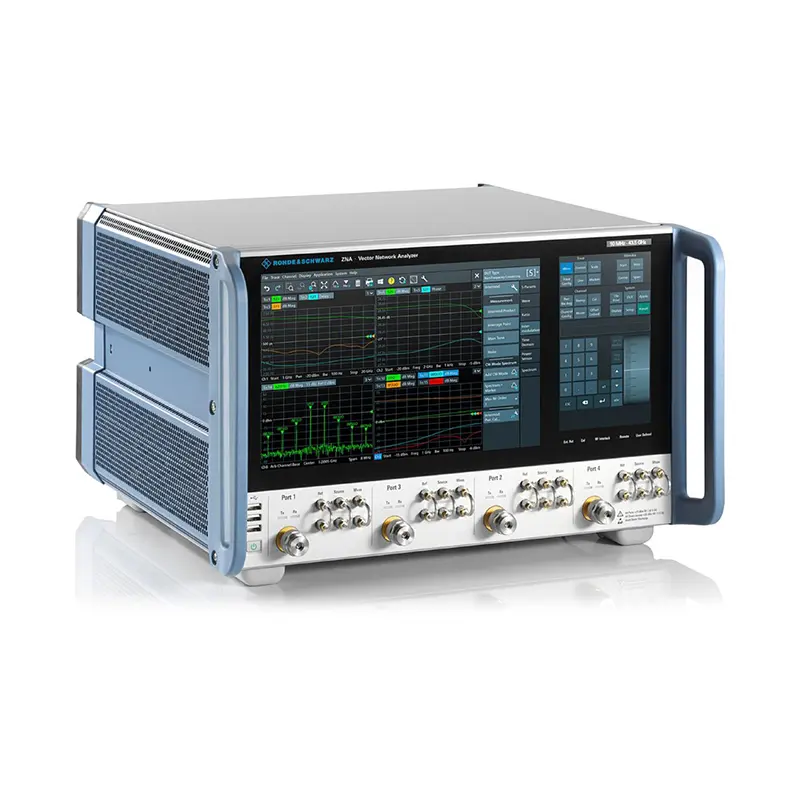

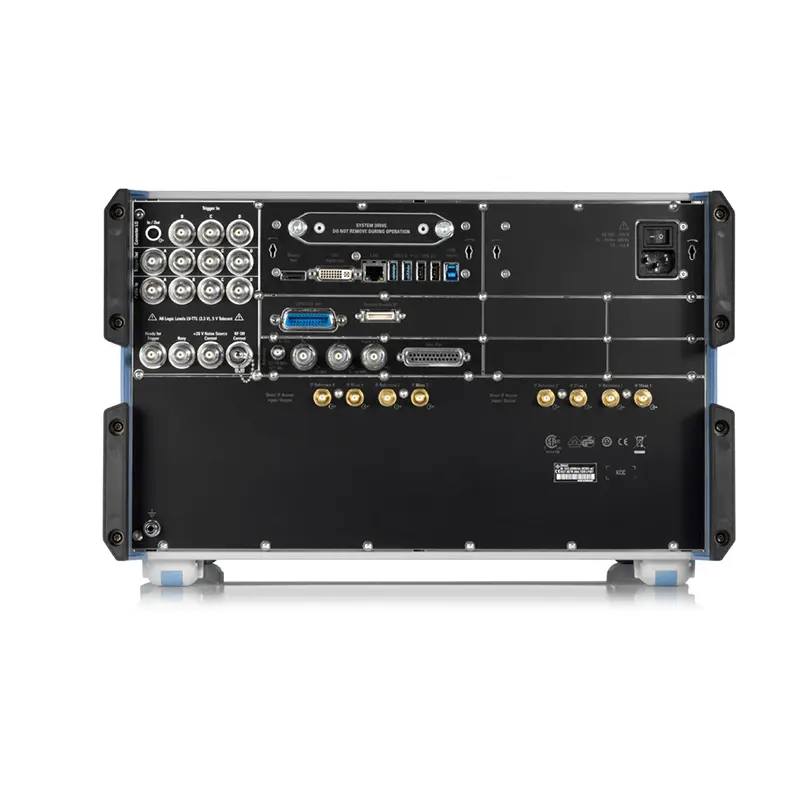

| Key Performance Parameter | Details & Values |
|---|---|
| Dynamic range | > 129 dB (specification, without options), 147 dB (typ., with options), up to 170 dB (maximum attainable range, allowing full 2-port correction) |
| Sensitivity | > -120 dBm (1 Hz IF bandwidth) (spec., without options), -162 dBm (1 Hz IF bandwidth) (meas., with options)¹ |
| Power sweep range | 100 dB (typ.), continuous electronic sweep range, can be shifted using mechanical step-attenuators |
| Source power linearity | 0.2 dB (typ., from -40 dBm to +10 dBm) |
| Receiver compression | 0.05 dB (typ., up to +8 dBm with reference to -10 dBm, at test port) |
| Trace noise | 0.005 dB (spec., RMS), 0.002 dB (typ., RMS) (10 GHz, 100 kHz measurement bandwidth, 0 dB reflection) |
| Speed | 10 MHz to 43.5 GHz, 500 kHz measurement bandwidth, 1601 points, 2-port calibration, sweep time: 96 ms (nom.) |
| Jitter Spectrum Analysis (JSA)¹ | Yes |
| Designation | Type | Frequency Range |
|---|---|---|
| License dongle, PC software | R&S®ZNPC | — |
| R&S®ZNA simulation | R&S®ZNXSIM-K2 | — |
| Time domain analysis (TDR) for simulation | R&S®ZNXSIM-K22 | — |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 2-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 4-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 4 test ports, complete system based on R&S®ZNA67, 4-port model, standard power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 2 test ports, complete system based on R&S®ZNA67, 2-port model, high power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Vector network analyzer system, 110 GHz, 4 test ports, complete system based on R&S®ZNA67, 4-port model, high power | R&S®ZNA67EXT | 10 MHz to 110 GHz |
| Parameter | Configuration / Model | Dimensions & Weight |
|---|---|---|
| Dimensions (W × H × D) | EIA RU1: 6 ²³⁄₃₂ | 461.4 mm × 284.6 mm × 462.1 mm (18.2 in × 11.2 in × 18.2 in) |
| Net Weight | 2-port models | 24 kg (52.9 lb) |
| 4-port models | 29 kg (63.9 lb) | |
| Shipping Weight | 2-port models | 30 kg (66.2 lb) |
| 4-port models | 35 kg (77.2 lb) |
