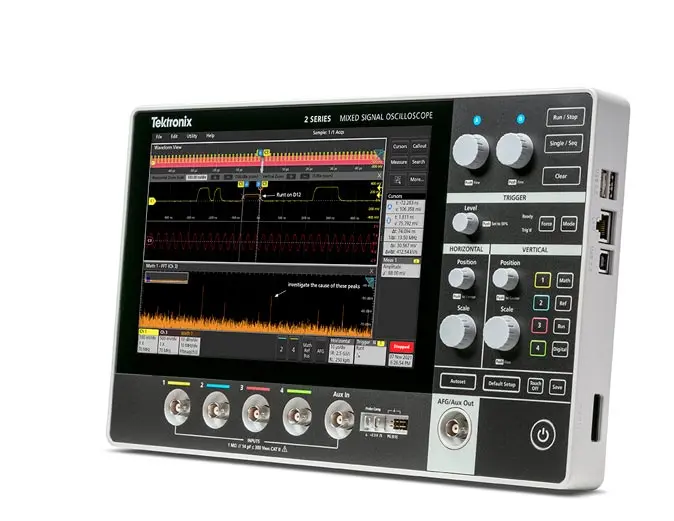

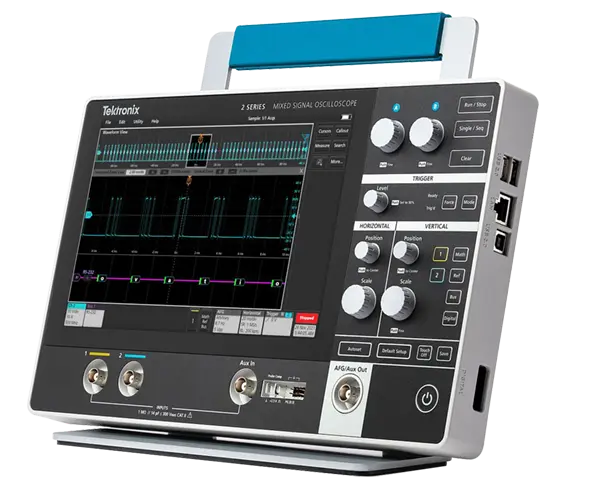

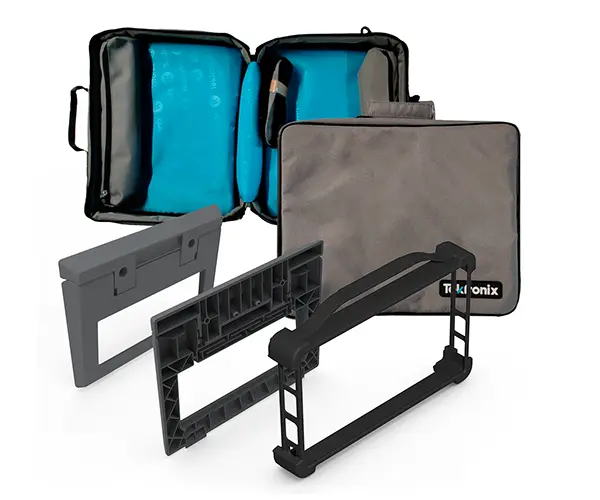

A small, multipurpose oscilloscope for everyday debugging.
In a small, 1.5" thick form factor, the 2 Series MSO has up to 4 analog channels, 500 MHz bandwidth, 2.5 GS/s sample rate, 16 channel MSO, 50 MHz AFG, 4-bit digital pattern generator, sophisticated triggers, and protocol decode. No matter where you work, the 2 Series MSO is the oscilloscope of choice for electronic testing and debugging.

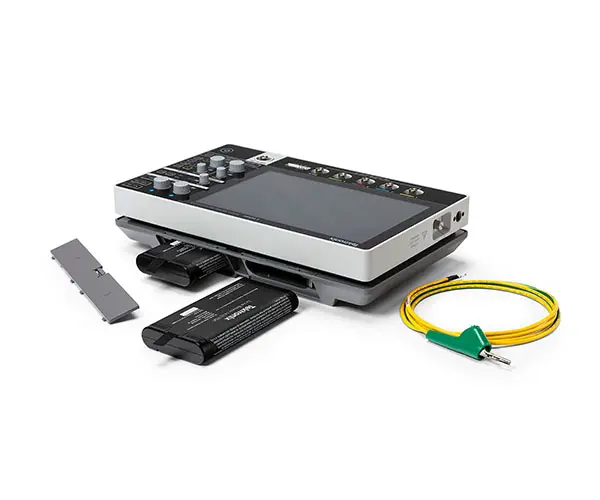

A part of the Tektronix family of award-winning next-generation oscilloscopes, the 2 Series MSO boasts a capacitive touchscreen and an extremely user-friendly interface that is truly made for touch. Any Tektronix next-generation oscilloscope is simple to use because of the same user interface and programmable interface. The instrument's capabilities are increased with the optional battery pack.
| Specification | MSO22 | MSO24 | MSO22-EDU | MSO24-EDU |
|---|---|---|---|---|
| Analog channels | 2 | 4 | 2 | 4 |
| Analog channel bandwidth | 70 MHz, 100 MHz, 200 MHz, 350 MHz, and 500 MHz (500 MHz bandwidth guaranteed from 4 mV/div to 10 V/div) |
70 MHz, 100 MHz, and 200 MHz | ||
| Sample rate | 1.25 GS/s All channels, 2.5 GS/s half channels Interleaved | |||
| Record length | 10 M | |||
| Waveform Capture Rate | > 4,000,000 wfms/s (typical) | |||
| Digital channels | 16 | |||
| AFG outputs | 1 (multiplexed with Aux Out) | |||
| Model | Description |
|---|---|
| MSO22 | Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
| MSO24 | Mixed Signal Oscilloscope: 4 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
| MSO22-EDU | Mixed Signal Oscilloscope: 2 analog channels, 16 digital channels, 2-ULTIMATE, 2-MSO, T5 |
| MSO24-EDU | Mixed Signal Oscilloscope: 4 analog channels, 16 digital channels, 2-ULTIMATE, 2-MSO, T5 |
