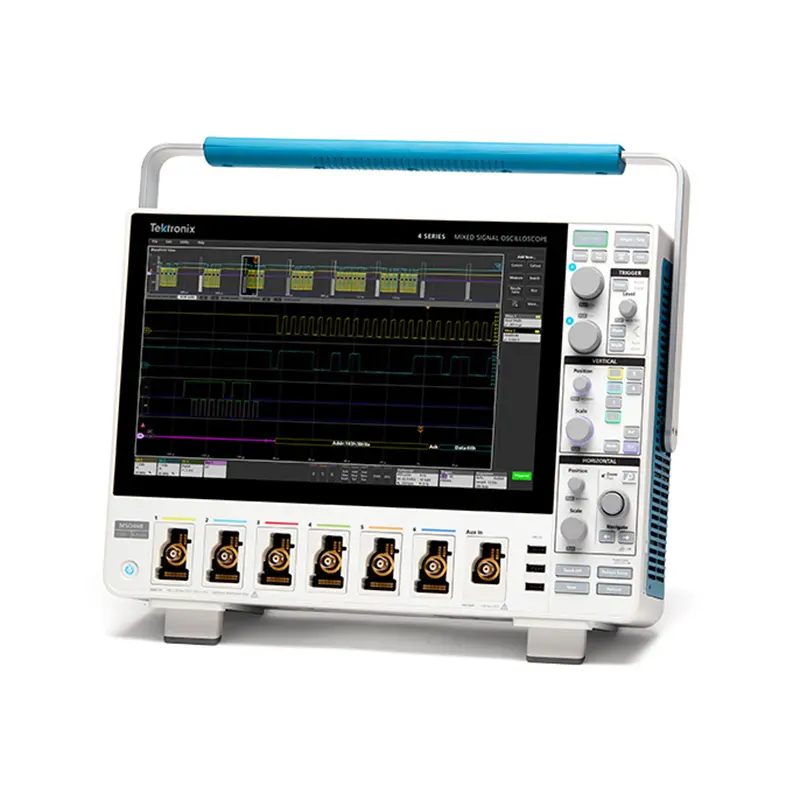

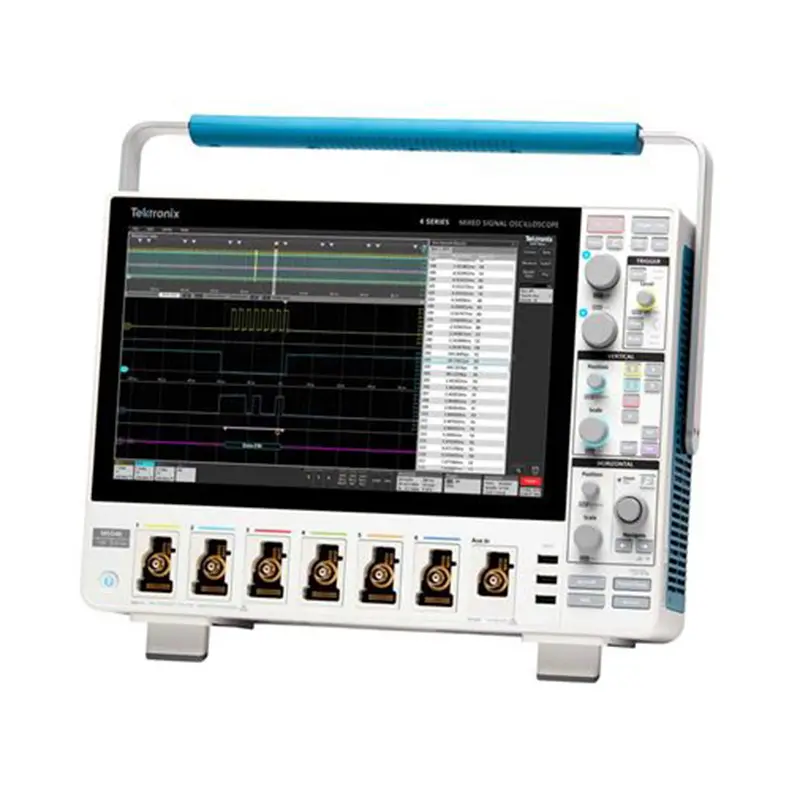

Ideal for debugging and validating embedded systems and power converters, the 4 Series B MSO raises the bar for bench oscilloscope performance, analytical capabilities, and user experience. This second-generation instrument introduces an advanced processing architecture that more than doubles responsiveness and significantly speeds up data transfers and automated measurements while providing complete remote operation and control.
Over 2x faster user interface responsiveness and substantially quicker automated measurements and data transfers.
4 or 6 input models. Each channel accepts 1 analog signal or 8 digital logic inputs via the TLP058 logic probe.
Optically-bonded 1920 x 1080 high-contrast capacitive multi-touch screen backed by an award-winning interface.
Native 12-bit analog-to-digital converters deliver up to 16 bits of vertical resolution in High Res acquisition mode.
| Parameter | 4 Channel Model (MSO44B) | 6 Channel Model (MSO46B) |
|---|---|---|
| FlexChannel Inputs | 4 Channels | 6 Channels |
| Maximum Analog Channels | 4 | 6 |
| Maximum Digital Channels (with logic probes) | 32 | 48 |
| Auxiliary Trigger Input | ≤300 VRMS (Edge Trigger only) | |
| Bandwidth (Calculated Rise Time) | 200 MHz (2.3 ns), 350 MHz (1.3 ns), 500 MHz (900 ps), 1 GHz (450 ps), 1.5 GHz (333 ps) | |
| DC Gain Accuracy (50 Ω) | ±1.0%, (±2.5% at 1 mV/Div and 500 µV/Div), de-rated at 0.100%/°C above 30 °C | |
| DC Gain Accuracy (1 MΩ & 250 kΩ) | ±1.0%, (±2.0% at 1 mV/Div and 500 µV/Div), de-rated at 0.100%/°C above 30 °C | |
| ADC Resolution | 12 bits | |
| Vertical Resolution (High Res Mode) | 8 bits @ 6.25 GS/s | 12 bits @ 3.125 GS/s | 13 bits @ 1.25 GS/s | 14 bits @ 625 MS/s | 15 bits @ 250 MS/s | 16 bits @ ≤125 MS/s | |
| Sample Rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) | |
| Record Length | 31.25 Mpoints standard (62.5 Mpoints optional upgrade) | |
| Waveform Capture Rate | >500,000 wfms/s typical | |
| Arbitrary / Function Generator | Optional 50 MHz with 13 predefined waveform types | |
| Digital Voltmeter (DVM) | 4-digit DVM (free with product registration) | |
| Trigger Frequency Counter | 8-digit frequency counter (free with product registration) | |
Height: 11.299 in (286.99 mm)
Width: 15.9 in (405 mm)
Depth: 6.1 in (155 mm)
MSO44B (4 Channels): < 15.96 lbs (7.25 kg)
MSO46B (6 Channels): < 16.55 lbs (7.5 kg)
Access documentation, service manuals, and datasheets for the Tektronix 4 Series B MSO instruments:
The MSO44B includes 4 FlexChannel® inputs supporting up to 4 analog channels and 32 digital logic channels. The MSO46B features 6 FlexChannel® inputs accommodating up to 6 analog channels, 48 digital logic channels, and exclusive support for Three-Phase Electrical Analysis.
Each FlexChannel® input can be used as a single analog channel (viewable in time domain, spectrum domain, or both simultaneously) or converted into 8 digital logic channels by attaching an optional TLP058 logic probe, eliminating dedicated digital-only port limitations.
The instrument features hardware 12-bit ADC vertical resolution at up to 3.125 GS/s. In High Res mode, the resolution dynamically increases up to 16 bits at sample rates of 125 MS/s or below.
Yes, analog bandwidth is fully upgradable across 200 MHz, 350 MHz, 500 MHz, 1 GHz, and 1.5 GHz options. Standard record length can also be upgraded from 31.25 Mpoints to 62.5 Mpoints per channel.
The 4 Series B MSO features an optically-bonded 13.3-inch Full HD (1920 x 1080) capacitive touchscreen with multi-touch gestures, paired with an award-winning interface designed specifically for intuitive touch navigation and remote desktop collaboration.
Upon product registration, users receive complimentary access to an integrated 4-digit Digital Voltmeter (AC RMS, DC, and DC+AC RMS voltage) and an 8-digit Trigger Frequency Counter.
