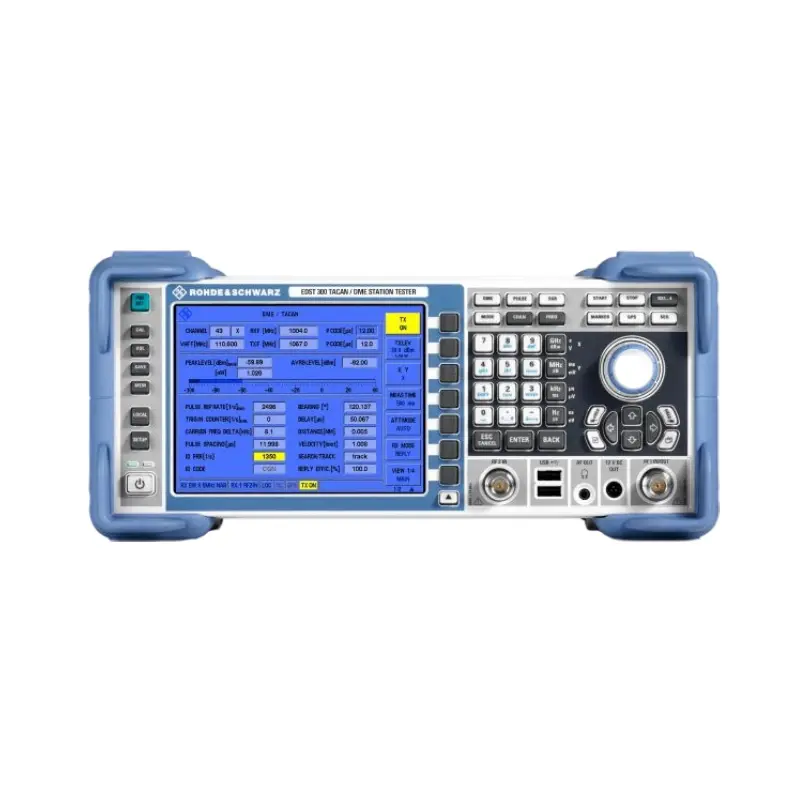

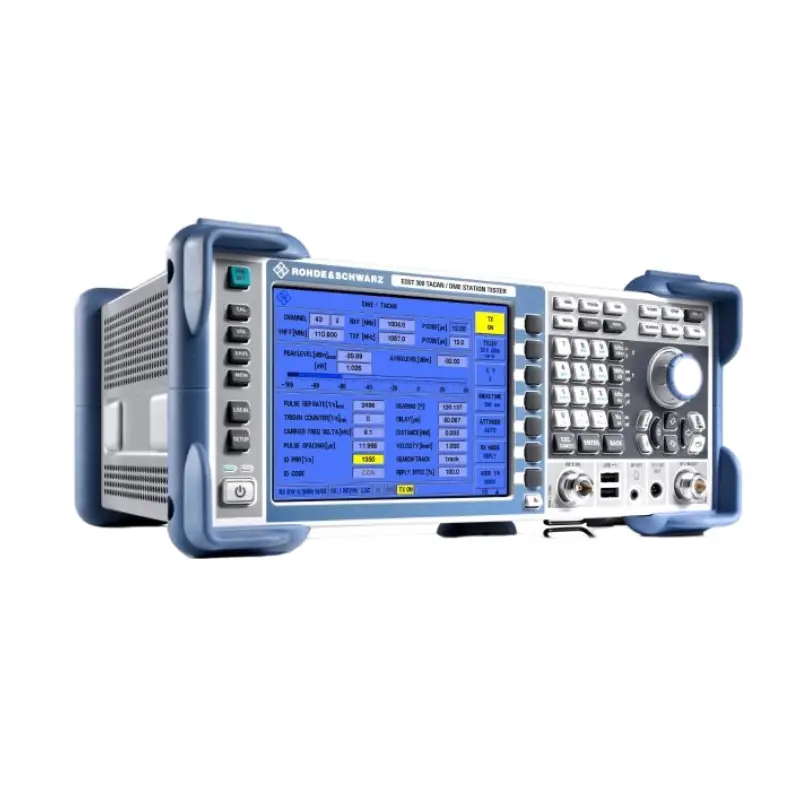

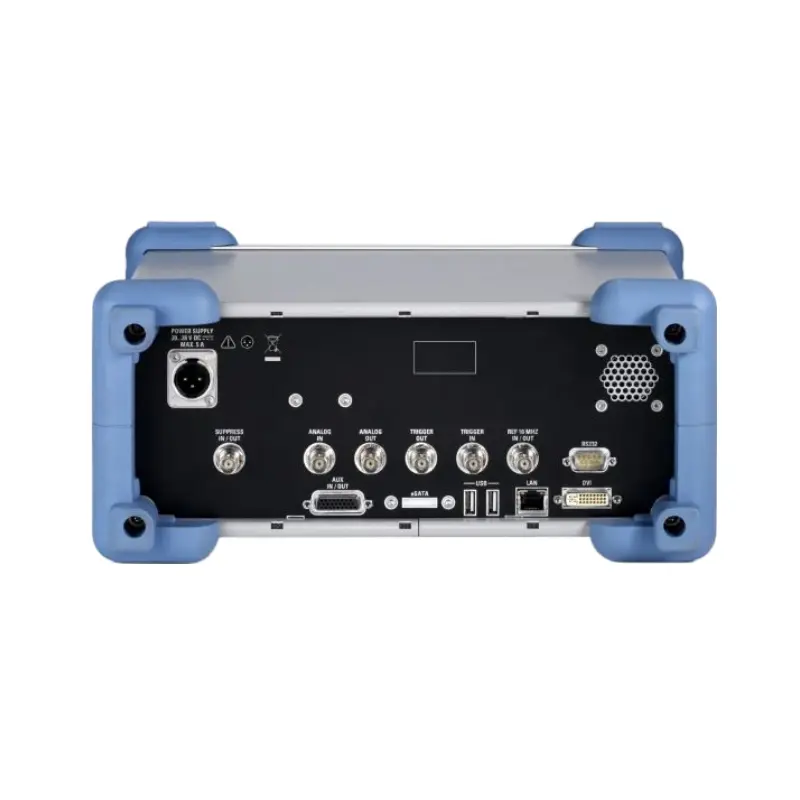

| Specification | Description |
|---|---|
| Frequency range | 960 MHz - 1215 MHz |
| Dynamic range | 110 dB |
| Receiver acquisition sensitivity | - 97 dBm |
| Absolute level measurement range (average) | –110 dBm to +13 dBm (nom.) |
| Absolute level measurement range (peak) | –100 dBm to +13 dBm (nom.) |
| DME input level range (pulse recognition efficiency > 70 %) | –95 dBm to +10 dBm (nom.) |
| DME total peak level deviation | < 1 dB (nom.), for standard DME signal in line with ICAO Annex 10, level range 0 dBm to –70 dBm, 95 % confidence level, +20 °C to +30 °C |
| DME pulse spacing uncertainty | < 0.05 μs |
| TACAN input level range | –92 dBm to +10 dBm |
| TACAN bearing deviation | < 0.5°, for –90 dBm to +10 dBm, standard TACAN signal in line with STANAG 5034, modulation depth of 15 Hz and 135 Hz signals = 20 %, measurement time ≥ 1 s |
| TACAN bearing acquisition time | < 3 s |
| Main delay measurement | < 50 ns |
| Bearing measurement accuracy | < 0.2° |
| Analysis bandwidth | 500 kHz |
| Pulse repetition rate range | 5 - 6000 pulses per second |
| Distance measurement uncertainty | ≤ - 80 dBm, 0.01 nm |
| Power supply | AC 100 - 240 V, DC 28 V |
| Dimensions | Depth: 266 mm (10.47 in), Height: 157 mm (6.18 in), Width: 342 mm (13.46 in) |
| Remote control | Via LAN interface |
| Data export | Via USB data logger |
