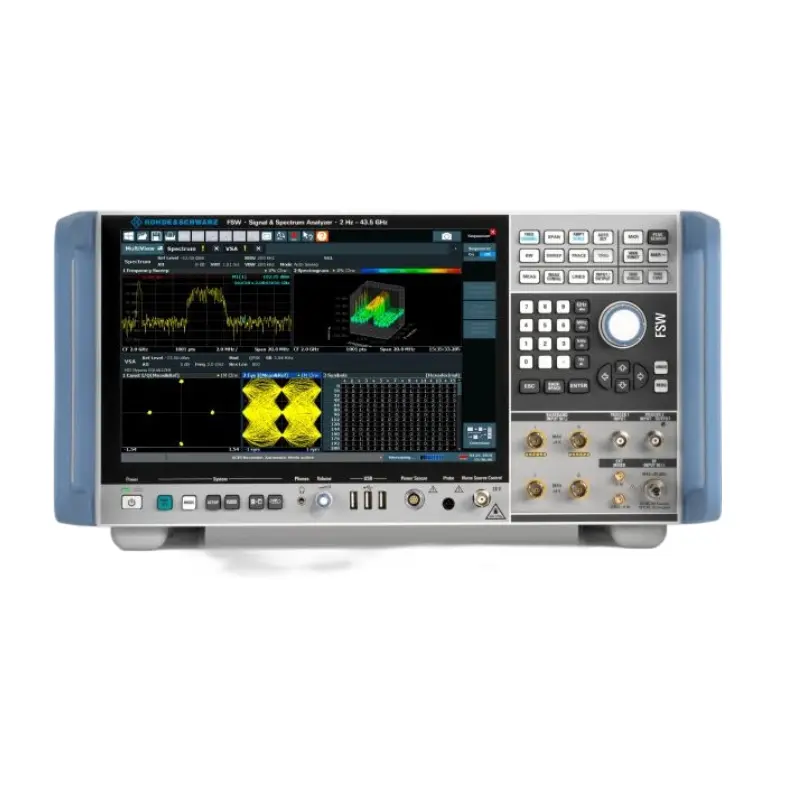

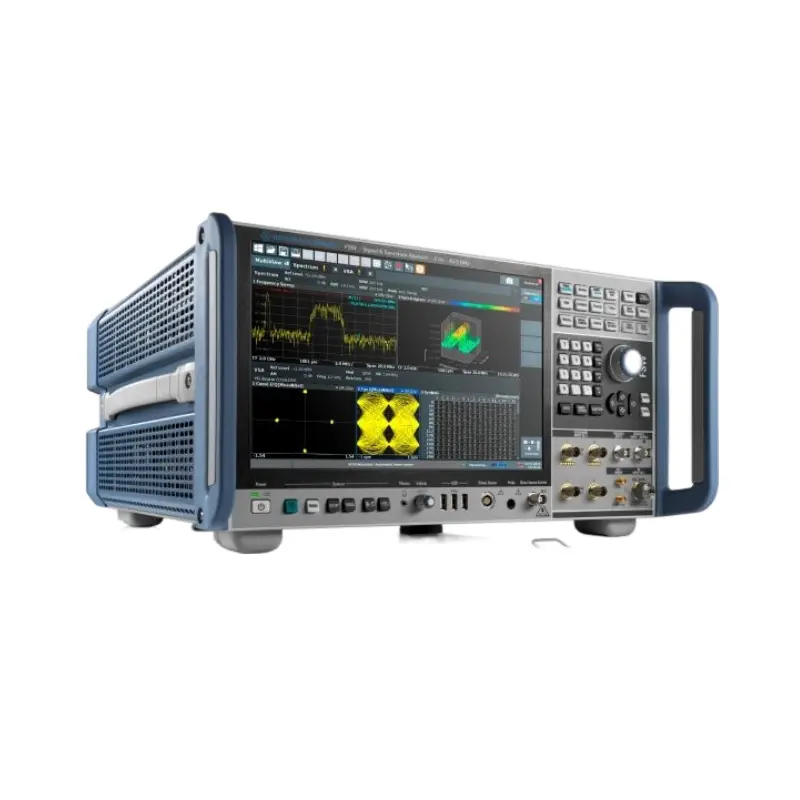

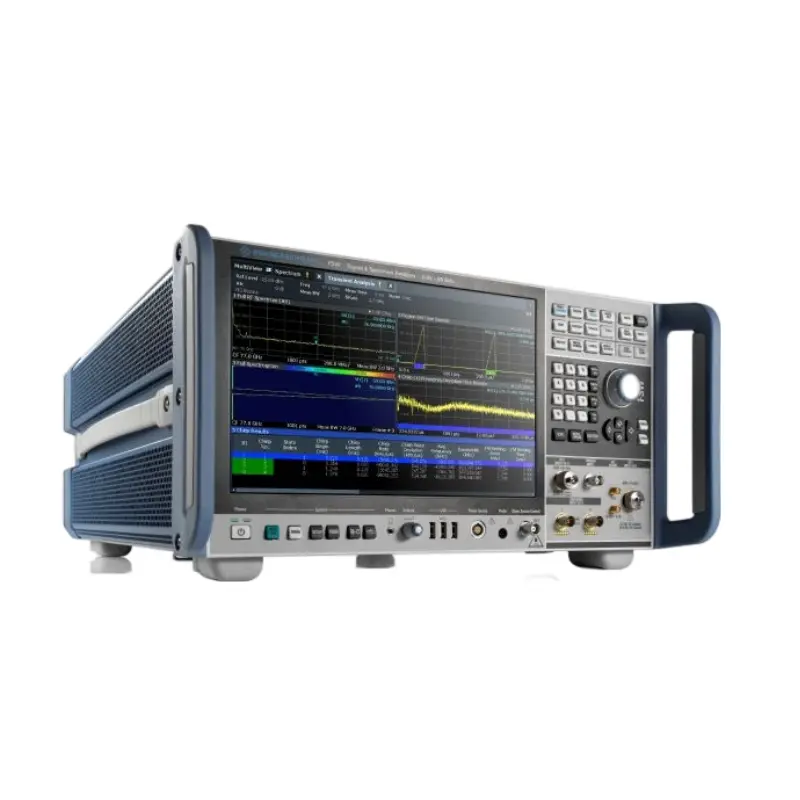

The R&S®FSW67's core strengths lie in its “wide frequency coverage + integrated multi-measurement capabilities,” positioning it as an all-in-one instrument capable of both “spectrum analysis” and “signal analysis.” Key specifications include:
The R&S®FSW67 adapts to diverse scenarios through flexible “core functions + optional modules” configuration. Its core capabilities and expansion options include:
Leveraging its wide frequency coverage, high precision, and strong scalability, the R&S®FSW67 focuses on “high-end applications,” specifically including:
| Specification Category | Details |
|---|---|
| Frequency Range | - Standard: 2 Hz to 67 GHz (direct measurement, no external mixer required) |
| - Extended: Up to 1.1 THz with optional external mixers (e.g., R&S®FSW-B110 for 110 GHz, R&S®FSW-B325 for 325 GHz) | |
| Frequency Accuracy | - ±(1 × 10⁻¹¹ × f₀ + 1 Hz) after 24 h warm-up (f₀ = measured frequency) |
| - Reference oscillator: OCXO (oven-controlled crystal oscillator) as standard; optional rubidium oscillator for higher stability | |
| Spectral Performance | - Displayed Average Noise Level (DANL): Typical -170 dBm/Hz (at 1 GHz, 1 Hz RBW, preamplifier on) |
| - Third-Order Intercept Point (TOI): Typical +15 dBm (at 1 GHz, 10 MHz RBW) | |
| - RBW Range: 1 Hz to 10 MHz (1-3-10 step sequence); optional 20 MHz/40 MHz RBW | |
| Analysis Bandwidth | - Standard: Up to 100 MHz (baseband I/Q capture) |
| - Optional: Up to 1.5 GHz with R&S®FSW-K106 (1.5 GHz IF bandwidth module) | |
| Measurement Speed | - Sweep Speed: Up to 100 GHz/s (spectral sweep, 1 Hz RBW) |
| - Real-Time Spectrum Analysis (RTSA): Optional, max real-time bandwidth 250 MHz (R&S®FSW-K60), minimum event detection time < 1 µs | |
| Signal Analysis Capabilities | - Modulation Formats: Supports 5G NR, 4G LTE/LTE-A, Wi-Fi 6/6E, DVB-S2X, Bluetooth, and custom modulated signals |
| - Demodulation Metrics: MER (±0.2 dB accuracy), EVM, phase error, amplitude error | |
| - Pulse Signal Analysis: Pulse width, PRF, duty cycle, rise/fall time measurement (min pulse width: 10 ns) | |
| Phase Noise | - Typical -128 dBc/Hz (at 1 GHz carrier, 10 kHz offset; 1 Hz RBW) |
| - Typical -145 dBc/Hz (at 1 GHz carrier, 1 MHz offset; 1 Hz RBW) | |
| Input Characteristics | - Input Impedance: 50 Ω (standard) |
| - Max Input Power: +20 dBm (without damage); +30 dBm (with optional R&S®FSW-K43 high-power attenuator) | |
| - Preamplifier: Built-in (1 GHz to 67 GHz), switchable | |

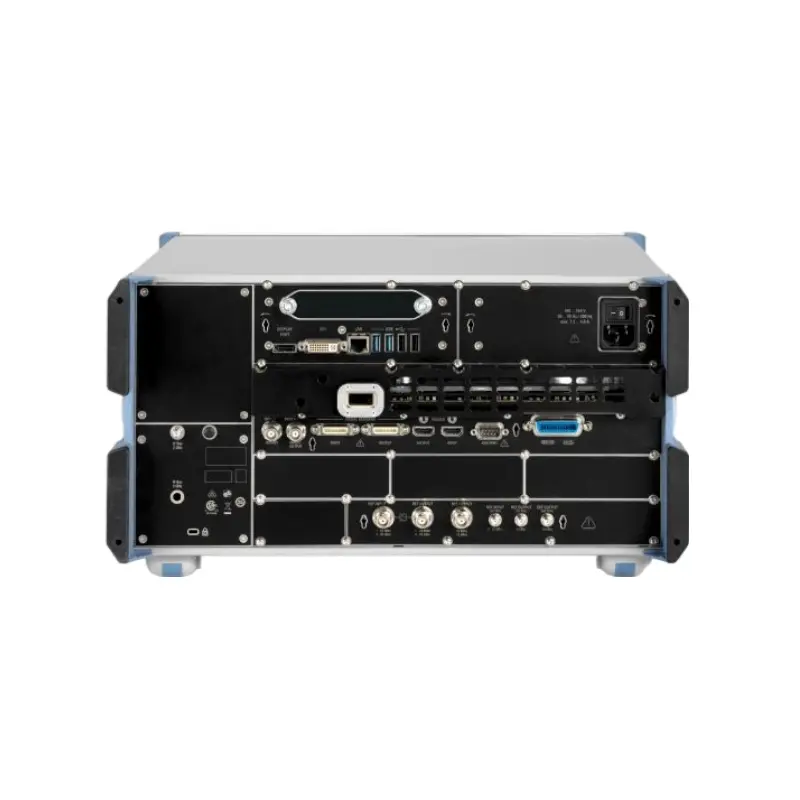

| Interface & Connectivity | - LAN (1 Gbit/s, LXI Class C compliant) |
| - GPIB (IEC/IEEE 488.2) | |
| - USB 3.0 (front & rear panels) | |
| - Trigger I/O (BNC, for external trigger/instrument synchronization) | |
| - HDMI (for external display) | |
| Physical & Environmental | - Dimensions (W × H × D): 442 mm × 177 mm × 635 mm (19-inch rack-mountable) |
| - Weight: Approximately 26 kg | |
| - Operating Temperature: 0 °C to 40 °C (at ≤ 90% relative humidity, non-condensing) | |
| Operating System & Software | - Built-in PC with Windows 10 Pro |
| - Standard software: R&S®FSW-BASE (spectral analysis), R&S®FSW-SIGNAL (basic signal analysis) | |
| - Optional software: R&S®FSW-K100 (5G NR analysis), R&S®FSW-K70 (satellite signal analysis), R&S®FSW-K60 (RTSA) |
Delivery information typically includes delivery times, shipping methods, packaging, etc., which may vary depending on the seller and the location of purchase.
The R&S®FSW67 provides direct, native frequency coverage from 2 Hz to 67 GHz without requiring external mixers. With optional R&S external harmonic mixer modules, frequency coverage can be extended up to 110 GHz, 325 GHz, and even 1.1 THz.
Yes. By equipping the analyzer with the optional R&S®FSW-K60 module, the instrument activates real-time spectrum analysis with bandwidth capabilities up to 250 MHz (and up to 800 MHz depending on system configuration), enabling minimum event detection times shorter than 1 µs.
The instrument comes standard with up to 100 MHz analysis bandwidth for baseband I/Q capture. It can be expanded up to 1.5 GHz using the R&S®FSW-K106 IF bandwidth module and offers up to 8.3 GHz internal analysis bandwidth.
The analyzer supports a wide spectrum of standards including 5G NR (via the R&S®FSW-K100 module), 4G LTE/LTE-A, Wi-Fi 6/6E, DVB-S2X, Bluetooth, custom digital modulations, and satellite communications (via R&S®FSW-K70).
Yes, automated testing is fully supported through standard GPIB, Gigabit LAN (LXI Class C compliant), and USB 3.0 interfaces. Test engineers can leverage SCPI recorder features and R&S®VISA software for simplified test code generation and unattended production line deployment.
No, the R&S®FSW67 operates without internal batteries. It is designed for standard AC mains power in laboratory, benchtop, or standard 19-inch rack-mount environments.
