The TBS2000B Series is made to be simple to use and facilitate rapid hands-on learning. You can assess signals more quickly thanks to dedicated controls that provide you instant access to crucial settings. You can view more of your signal with the TBS2000B because it has 10 vertical divisions and 15 horizontal divisions. Additionally, there is additional space on the huge display for menu information and measurement results.
You can swiftly pan through the recording and zoom in to view signal details using the Zoom tool. The new on-screen cursors are easy to read and comprehend since they superimpose the cursor dimensions on the screen.
The trigger system is engineered to debug modern mixed signal designs. In addition to standard edge triggering, it features runt and pulse width triggering—ideal for finding timeout conditions, narrow glitches, or pulses with lower-than-expected amplitudes.
Multiple acquisition modes tailor performance to your task: default Sample Mode handles the majority of applications, Peak Detect Mode effectively captures spikes and narrow noise, while Average Mode eliminates recurring noise.
| Models | TBS2072B | TBS2074B | TBS2102B | TBS2104B | TBS2202B | TBS2204B |
|---|---|---|---|---|---|---|
| Analog Channels | 2 | 4 | 2 | 4 | 2 | 4 |
| Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
| Max Sample Rate | 2 GS/s — Half Channel | |||||
| 1 GS/s — All Channels | ||||||
| Record Length | 5 M points | 5 M points | 5 M points | 5 M points | 5 M points | 5 M points |
The TBS2000B Series is available in 2 and 4 analog channel models across three bandwidth choices: 70 MHz (TBS2072B, TBS2074B), 100 MHz (TBS2102B, TBS2104B), and 200 MHz (TBS2202B, TBS2204B).
The instruments support a maximum sampling rate of up to 2 GS/s on half channels and 1 GS/s across all channels, backed by a generous 5 Mpoint record length on every channel.

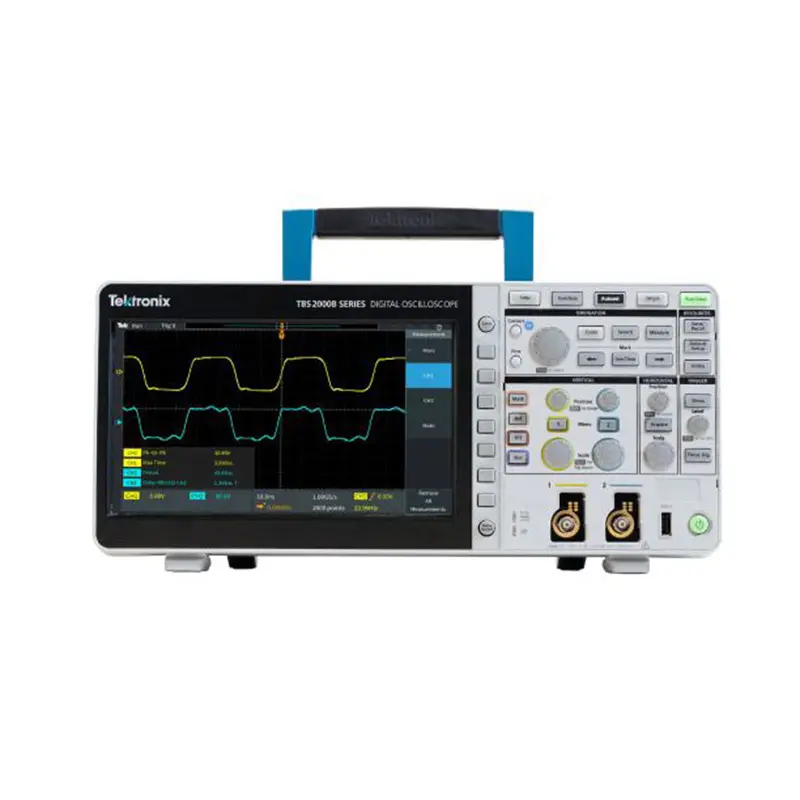

The TBS2000B features a large 9-inch WVGA color display configured with 15 horizontal divisions and 10 vertical divisions, delivering 50% more visible signal area along with dedicated space for measurement readouts and menu controls.
The oscilloscope provides edge, runt, and pulse width triggering to diagnose mixed-signal issues and narrow glitches. For waveform acquisition, it offers standard Sample Mode, Peak Detect Mode for glitch hunting, and Average Mode for reducing signal noise.

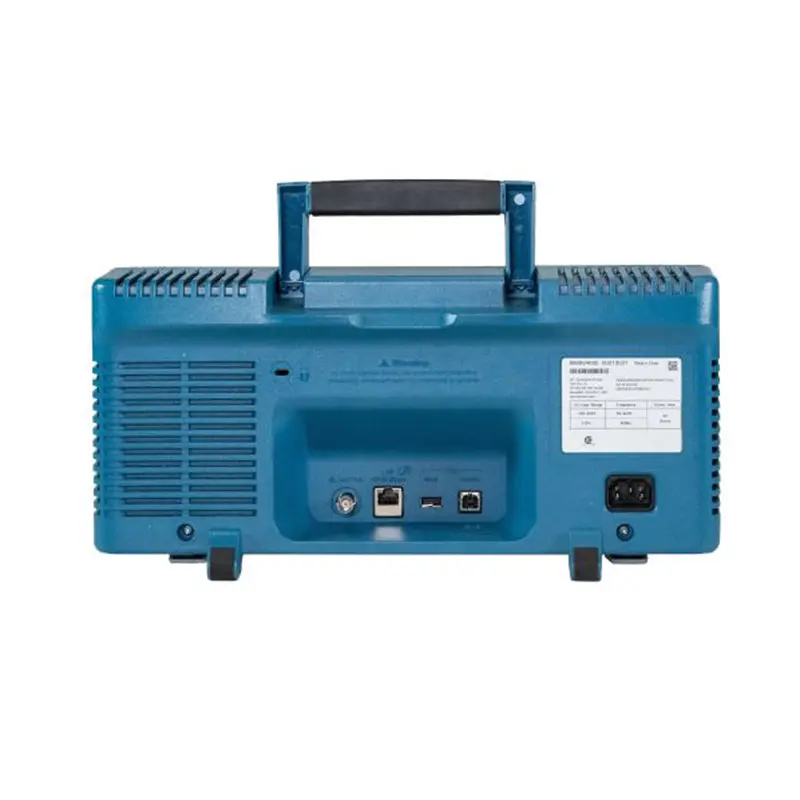

The unit utilizes the TekVPI probe interface, which automatically scales active, differential, and current probes. For connectivity, it incorporates front USB 2.0 host, rear USB 2.0 device, 10/100BASE-T Ethernet LAN, and Wi-Fi interface capability.

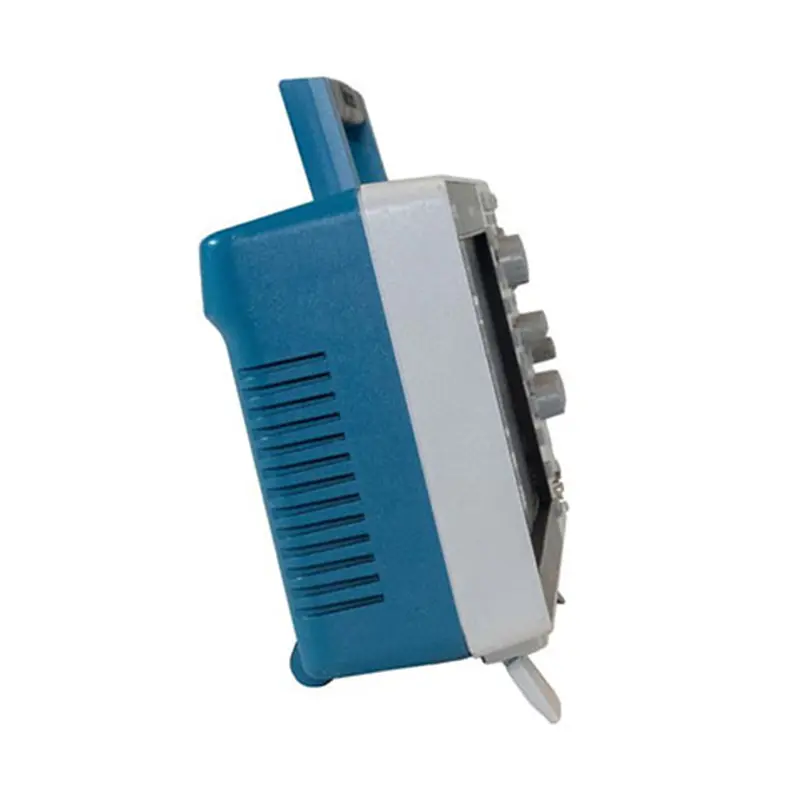

2-channel models (TBS2xx2B) measure 174.9 mm (H) x 372.4 mm (W) x 103.3 mm (D) with a standalone weight of 2.62 kg. 4-channel models (TBS2xx4B) measure 201.5 mm (H) x 412.8 mm (W) x 128.1 mm (D) and weigh 4.17 kg.
