Wholesale Tektronix TBS1000C Digital Storage Oscilloscope TBS1052C TBS1052C-EDU TBS1072C TBS1102C Exporter, Products

1 / 5

Wholesale Tektronix TBS1000C Digital Storage Oscilloscope TBS1052C TBS1052C-EDU TBS1072C TBS1102C Exporter, Products

For small business owners, embedded designers, and educational institutions, the TBS1000C oscilloscope offers industry-leading quality and dependability. The 2-channel scope gives you the confidence to study and experiment with its user-friendly interface, integrated support, and five-year warranty. The TBS1000C makes it easy to accomplish your objectives, whether you're an engineer, student, or business owner.

Send Inquiry

Product Description

Overview

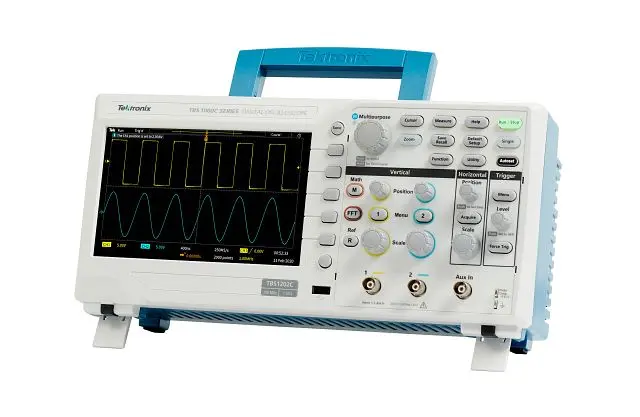

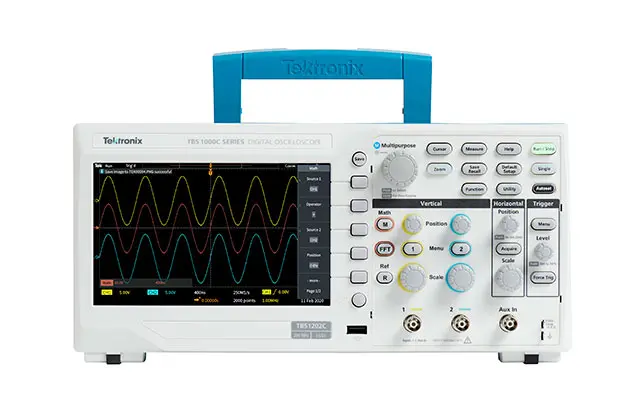

The compact size of the TBS1000C Series Digital Storage Oscilloscope allows for economical performance. It is made to satisfy the demands of the maker community, embedded design engineers, and educational institutions of today. The device has a 5-year guarantee, a 7-inch WVGA color display, bandwidths ranging from 50 MHz to 200 MHz, and a sample rate of up to 1 GS/s. The tool includes a cutting-edge courseware system that combines lab tasks with detailed instructions for students to follow. To make the instrument more approachable for a novice user, the HelpEverywhere system offers helpful hints and tips across the user interface.

Specifications

Key performance specifications

200 MHz, 100 MHz, 70 MHz, and 50 MHz bandwidth models
2-channel models
1 GS/s sample rate on all channels
20k point record length on all channels
Advanced triggers include pulse, runt, and line triggers
Five-year warranty

Key features

7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal

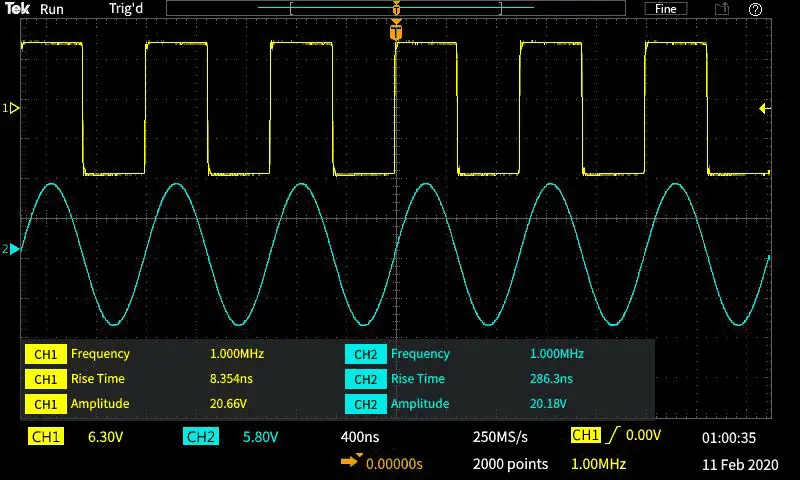

32 automated measurements
Dual window FFT with simultaneous time and frequency domain views
Trigger frequency counter
Pan and Zoom capability
Multi-language user interface with support for 10 languages in the user interface and front panel overlay
Small footprint and light weight
Fanless design contributes to low noise operation

Models

Parameters	TBS1052C	TBS1052C-EDU	TBS1072C	TBS1102C
Bandwidth	50 MHz	50 MHz	70 MHz	100 MHz
Channels	2	2	2	2
Sample Rate	1 GS/s	1 GS/s	1 GS/s	1 GS/s
Record Length	20 K points	20 K points	20 K points	20 K points

Delivery Information

Dimensions
Parameters	mm	in.
Height	154.95	6.1
Width	325.12	12.8
Depth	106.68	4.2
Shipping dimensions
Parameters	mm	in.
Height	266.7	10.5
Width	476.2	18.75
Depth	228.6	9
Weight
Parameters	kg	lb
Instrument only	1.979	4.36
Instrument with accessories	2.2	4.9

Manuals & Resources

Tektronix TBS1000C Digital Storage Oscilloscope TBS1052C TBS1052C-EDU TBS1072C TBS1102C

Tektronix TBS1000-Service-Manual-077077201-RevD.pdf

Download

Tektronix TBS1000C-User-Manual-EN-077157102.pdf

Download

Tektronix TBS1000C-Programmer-Manual-EN-US-077169102.pdf

Download

Tektronix TBS1000C-Datasheet-3GW616744.pdf

Download

Tektronix TBS1000C_SpecPV_EN-US_077-1583-03-Rev-A_077158303.pdf

Download

Frequently Asked Questions

What bandwidth options are available in the TBS1000C Series?

The series offers models with bandwidths ranging from 50 MHz, 70 MHz, 100 MHz, up to 200 MHz to cover various testing and development needs.

What is the standard sampling rate and record length for these models?

All models in the TBS1000C Series deliver a real-time sample rate of 1 GS/s and a record length of 20k points across all channels.

How does the HelpEverywhere feature work for beginner users?

The integrated HelpEverywhere system provides real-time contextual tips and explanations right on the user interface, helping students and new users navigate settings efficiently.

Is the TBS1000C oscilloscope suitable for quiet laboratory environments?

Yes, it features a fanless design that ensures silent operation, making it ideal for educational labs, maker workspaces, and low-noise environments.

What warranty coverage is included with the TBS1000C series?

The instrument comes with a manufacturer-backed five-year warranty, providing long-term reliability and peace of mind.
