Imperfections in frequency response are eliminated all the way to the probe tip using bandwidth improvement. Each channel features user-selectable filters that compensate for phase and magnitude to better depict very rapid signals. Furthermore, for applications that require the greatest measurement throughput, only Tektronix enables the user to turn off the bandwidth improvement.
More signal features (transients, flaws, and quick edges) are captured when all channels have a high sample rate operating simultaneously. 50 GS/s on all analog channels and 100 GS/s on two channels; 12.5 GS/s across all MSO70000DX Series logic channels.
High vertical precision and a low jitter noise level give your measurements more leeway. High resolution and extended-duration waveform capture are made possible by long record length. Standard 62.5 MS per channel; optional up to 500 MS on four channels and 1 GS on two channels. For uncompromised analog and digital acquisition, the logic channels' record lengths of the MSO70000DX Series match the analog record lengths. Managing lengthy recordings and comparing and analyzing various waveform segments are made easier with MultiView Zoom.
You can carry out accurate characterisation measurements with the MSO/DPO70000DX Series thanks to its excellent signal-to-noise ratio and low internal noise floor. Finding the slightest irregularities influencing a DUT's performance during debugging is made possible by a low noise floor and maximal signal quality of the measurement device. A greater dynamic range for RF signals results from a lower noise floor, which expands the range of applications for the MSO/DPO70000DX Series.
| Parameter | DPO70804DX MSO70804DX |
DPO71254DX MSO71254DX |
DPO71604DX MSO71604DX |
DPO72004DX MSO72004DX |
DPO72304DX MSO72304DX |
DPO72504DX MSO72504DX |
DPO73304DX MSO73304DX |
|---|---|---|---|---|---|---|---|
| Analog channels | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Digital channels (MSO Series only) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Analog bandwidth (user-selectable DSP enhance) (–3 dB) | 8 GHz | 12.5 GHz | 16 GHz | 20 GHz | 23 GHz (2 Ch) 23 GHz (4 Ch) |
25 GHz (2 Ch) 23 GHz (4 Ch) |
33 GHz (2 Ch) 23 GHz (4 Ch) |
| Hardware Analog Bandwidth (–3 dB) | 8 GHz (typical) | 12.5 GHz | 16 GHz | 20 GHz | 23 GHz | 25 GHz | 33 GHz |
| Rise time (typical) 10% to 90% | 52 ps | 32 ps | 26 ps | 22 ps | 17 ps | 16 ps | 13 ps |
| Rise time (typical) 20% to 80% | 38 ps | 23 ps | 19 ps | 15 ps | 13 ps | 12 ps | 9 ps |
| Sample rate (1, 2 ch) | 100 GS/s | 100 GS/s | 100 GS/s | 100 GS/s | 100 GS/s | 100 GS/s | 100 GS/s |
| Sample rate (3, 4 ch) | 50 GS/s | 50 GS/s | 50 GS/s | 50 GS/s | 50 GS/s | 50 GS/s | 50 GS/s |
| Sample rate (ET/IT mode) | 10 TS/s | 10 TS/s | 10 TS/s | 10 TS/s | 10 TS/s | 10 TS/s | 10 TS/s |
| Record length (Standard) | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M |
| Record length (Opt. 10XL) | 125 M | 125 M | 125 M | 125 M | 125 M | 125 M | 125 M |
| Record length (Opt. 20XL) | 250 M | 250 M | 250 M | 250 M | 250 M | 250 M | 250 M |
| Record length (Opt. 50XL) | 500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
500 M (4 Ch) 1 G (2 Ch) |
| Timing resolution (100 GS/s) | 10 ps | 10 ps | 10 ps | 10 ps | 10 ps | 10 ps | 10 ps |
| Duration at highest sample rate (Standard) | 0.63 ms | 0.63 ms | 0.63 ms | 0.63 ms | 0.63 ms | 0.63 ms | 0.63 ms |
| Duration at highest sample rate (Opt. 10XL) | 1.3 ms | 1.3 ms | 1.3 ms | 1.3 ms | 1.3 ms | 1.3 ms | 1.3 ms |
| Duration at highest sample rate (Opt. 20XL) | 2.5 ms | 2.5 ms | 2.5 ms | 2.5 ms | 2.5 ms | 2.5 ms | 2.5 ms |
| Duration at highest sample rate (Opt. 50XL) | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Vertical noise (% of full scale, typical) | 0.32% | 0.42% | 0.47% | 0.56% | 0.53% | 0.67% | 0.71% |
| Time base range (Auto mode) | 10 ps/div to 1000 s/div | ||||||
| Timing resolution (ET/IT mode) | 100 fs | ||||||
| Delta time measurement accuracy | 1.17 ps | 861 fs | 727 fs | 658 fs | 585 fs | 604 fs | 529 fs |
| Measurement | mm | in. |
|---|---|---|
| Height | 298 | 11.74 |
| Width | 451 | 17.75 |
| Depth | 489.97 | 19.29 |
| Measurement | mm | in. |
|---|---|---|
| Height | 311 | 12.25 |
| Width | 480.1 | 18.9 |
| Depth (from ear to back) | 546.1 | 21.5 |
| Configuration | kg | lb. |
|---|---|---|
| Net | 24 | 53 |
| Shipping | 34 | 67 |
| Configuration | kg | lb. |
|---|---|---|
| Net | 22 | 59 |
| Kit | 2.7 | 6 |

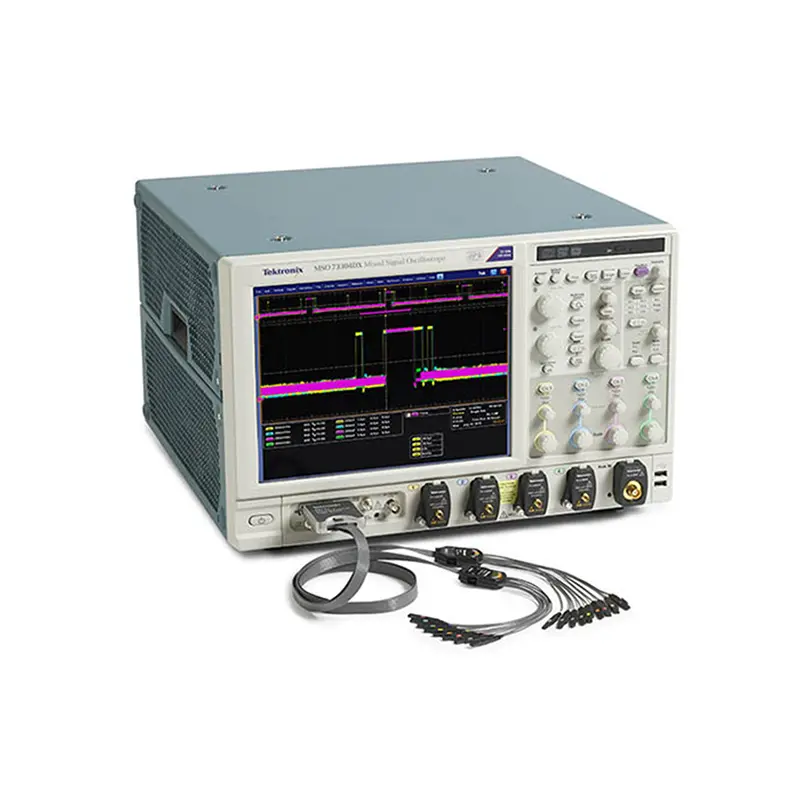

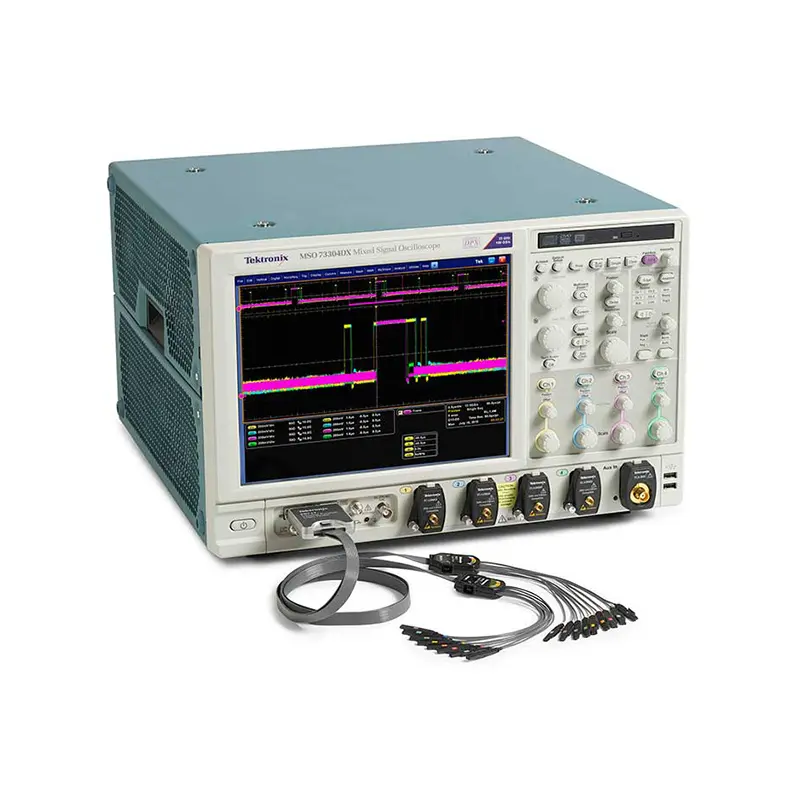

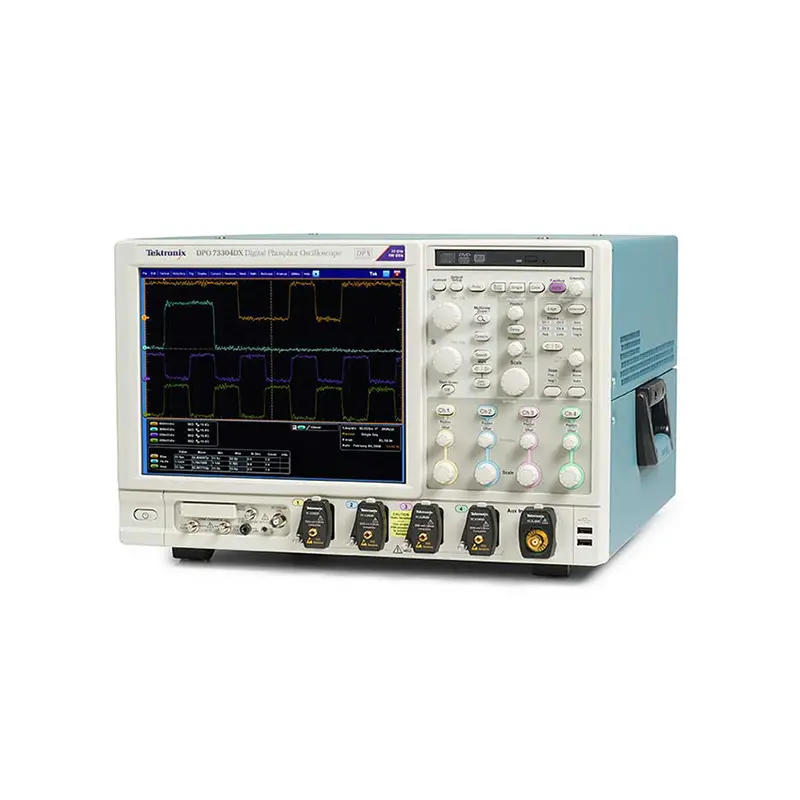

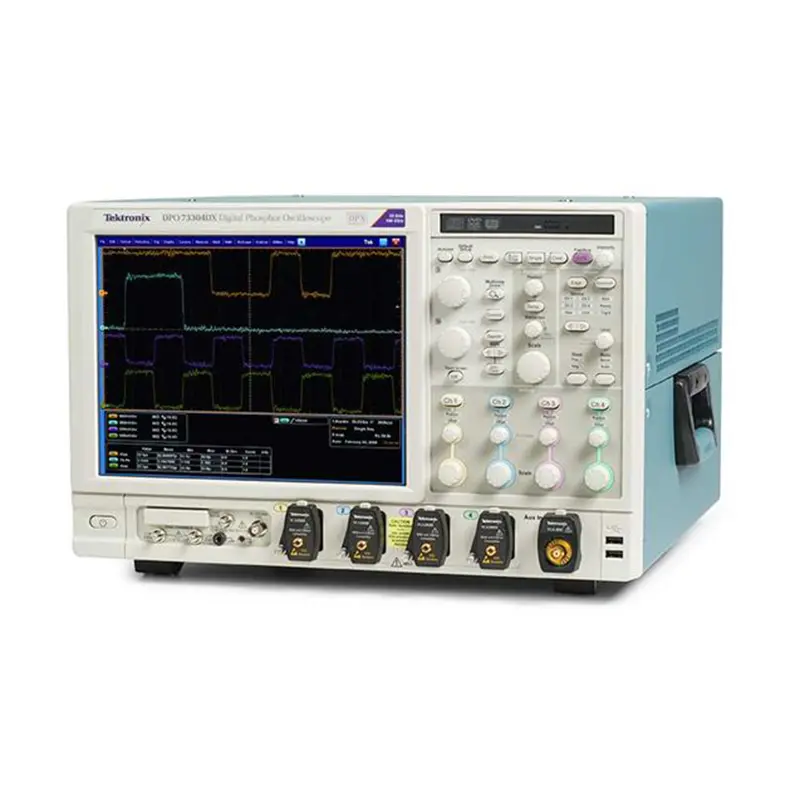

Tektronix MSO DPO70000DX Mixed Signal / Digital Phosphor Oscilloscopes Documentation
The series offers up to 33 GHz analog bandwidth with a rise time as fast as 9 ps (20% to 80%) on two channels on 33 GHz models, and up to 23 GHz real-time bandwidth simultaneously across all four analog channels.
The MSO/DPO70000DX provides an industry-leading 100 GS/s sample rate on two channels and 50 GS/s on all four analog channels. The logic channels on the MSO series sample at 12.5 GS/s with 80 ps timing resolution.
iCapture® allows engineers to route digital signals through an internal multiplexer to an analog channel, allowing you to observe the true analog characteristics of digital signals using a single probe connection without needing multiple physical setups.
Standard record length is 62.5 MS per channel, with options extending memory up to 500 MS across four channels or 1 GS on two channels (Opt. 50XL). The MultiView Zoom™ feature facilitates fast navigation and comparison across long memory acquisitions.
The platform supports automated serial analysis for PCI Express, 8b/10b serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, as well as MIPI® C-PHY, D-PHY, and M-PHY protocols.
Yes, Tektronix uniquely enables users to turn off bandwidth enhancement for specialized test cases and applications that require maximum measurement throughput.
