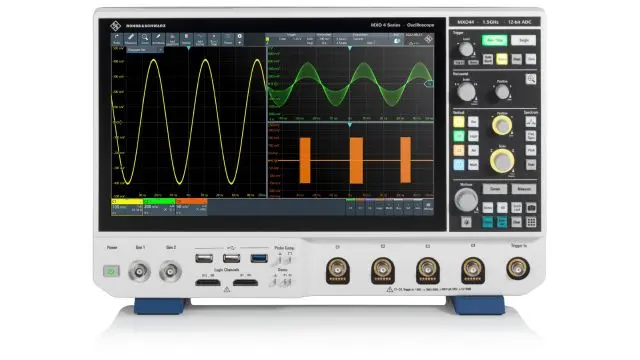

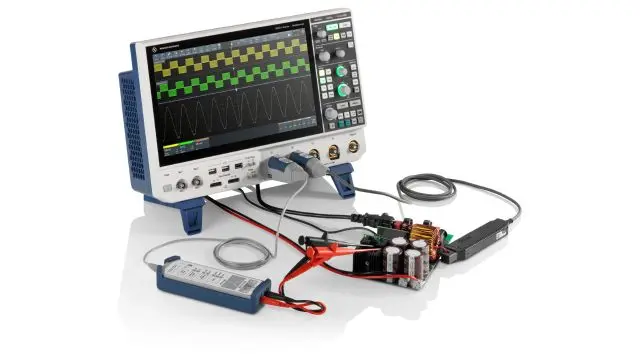

The R&S®MXO 4 series oscilloscopes represent a new generation of instruments centered on “accelerating measurement insights.” As the first oscilloscopes to achieve dual breakthroughs in both performance and cost-effectiveness, they deliver a decade-defining engineering innovation, creating highly efficient and precise testing tools for engineers.
This series incorporates multiple world-leading technologies: featuring the world's fastest real-time update rate of 4.5 million waveforms per second, enabling engineers to capture rare events undetectable by other instruments; equipped with a 12-bit ADC delivering 16 times the resolution of traditional 8-bit oscilloscopes at full sampling rates, achieving uncompromised precision measurement; All four channels come standard with 400 M points of acquisition memory, while the optional 800 M points of interleaved memory expands capacity up to 100 times the industry standard.
In terms of user experience, it far surpasses competitors with a 13.3-inch full HD capacitive touchscreen and intuitive interface, requiring less than 15 minutes to master and significantly lowering the learning curve. Core specifications are equally impressive: Bandwidth spans 200 MHz to 1.5 GHz, making it the world's first oscilloscope with a real-time update rate exceeding 4.5 million waveforms per second. It also boasts an industry-leading spectrum acquisition rate of 45,000 FFTs per second, supporting up to four simultaneous spectrum displays. Its advanced system architecture delivers 18-bit vertical resolution, 12-bit ADC, and 10 effective number of bits (ENOB). It supports region triggering across analog, spectrum, and math domains, and boasts the deepest standard memory in its class at 400 M points.
World's fastest real-time update rate, detecting rare signal faults that standard instruments miss.
16x resolution compared to traditional 8-bit systems, scalable up to 18-bit HD resolution with 10 ENOB.
Class-leading standard acquisition memory across all 4 channels, upgradable to 800 Mpts interleaved.
Intuitive capacitive multi-touch interface designed to master operations in less than 15 minutes.
| Base Configuration | ||
| Order Number | 1335.5050P15 | |
| Bandwidth | 500 MHz | |
| Number of Channels | 4 analogue channels, optional 16 digital channels | |
| Sample Rate | 5 Gsample/s | |
| Maximum Memory Depth | 400 Mpts per channel | |
| Mixed Signal Oscilloscope (MSO) | Supported (includes 16 digital channel option) | |
| Vertical System | ||
| Analog Channels | 4 | |
| Digital Channels (Optional) | 16 | |
| Analog Bandwidth (-3 dB) | R&S®MXO 4 (with R&S®MXO 4-B24x options) | 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz |
| Rise Time | R&S®MXO 4 (with R&S®MXO 4-B24x options) | 1.75 ns, 1 ns, 700 ps, 350 ps, 234 ps |
| Input Impedance | 50 Ω ± 1.5%, 1 MΩ ± 1% || 12 pF (meas) | |
| Input Sensitivity | at 50 Ω | 0.5 mV/div to 1 V/div, entire analog bandwidth supported for all input sensitivities |
| at 1 MΩ | 0.5 mV/div to 10 V/div, entire analog bandwidth supported for all input sensitivities | |
| Vertical Resolution | Up to 18 bit with HD mode (high definition) | |
| DC Gain Accuracy | Offset and position set to 0 V, after self-alignment | |
| input sensitivity > 5 mV/div | ±1% full scale | |
| input sensitivity 5 mV/div to ≥ 1 mV/div | ±1.5% full scale | |
| input sensitivity < 1 mV/div | ±2.5% full scale | |
| Logic Analyzer (MSO) Functionality | ||
| Digital Input Channels | 16 | |
| MSO Bandwidth | 400 MHz | |
| MSO Sampling Rate | 5 Gsamples/s per channel | |
| General Instrument Data | ||
| Dimensions (W × H × D) | 414 mm × 279 mm × 162 mm (16.3 in × 10.99 in × 6.38 in) | |
| Weight | 6.0 kg (13.23 lb) without options, nominal | |

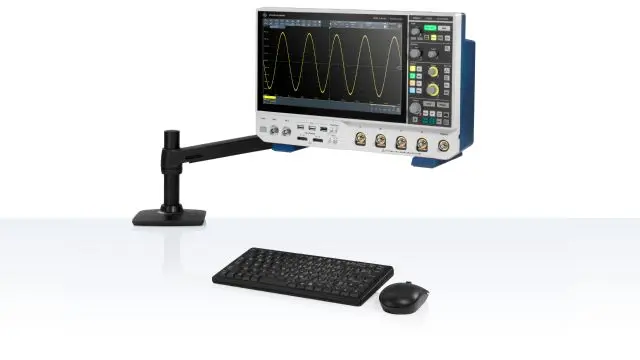

| Interfaces | 1 × USB 3.0 super speed port, 2 × USB 2.0 high speed ports, 2 × USB 3.1 gen1 ports, 1 × USB 3.1 gen1 type B plug, 1 Gbps LAN, HDMI for external monitor, External trigger, trigger output, Ref In, Ref Out, VESA mount | |
| Display | 13.3" LC TFT color display with capacitive touchscreen | |
MXO44-245 Next generation oscilloscope for accelerated insight.
