Wholesale Druck DPI 611 Handheld Pressure Calibrator Manufacturers, Exporter

1 / 1

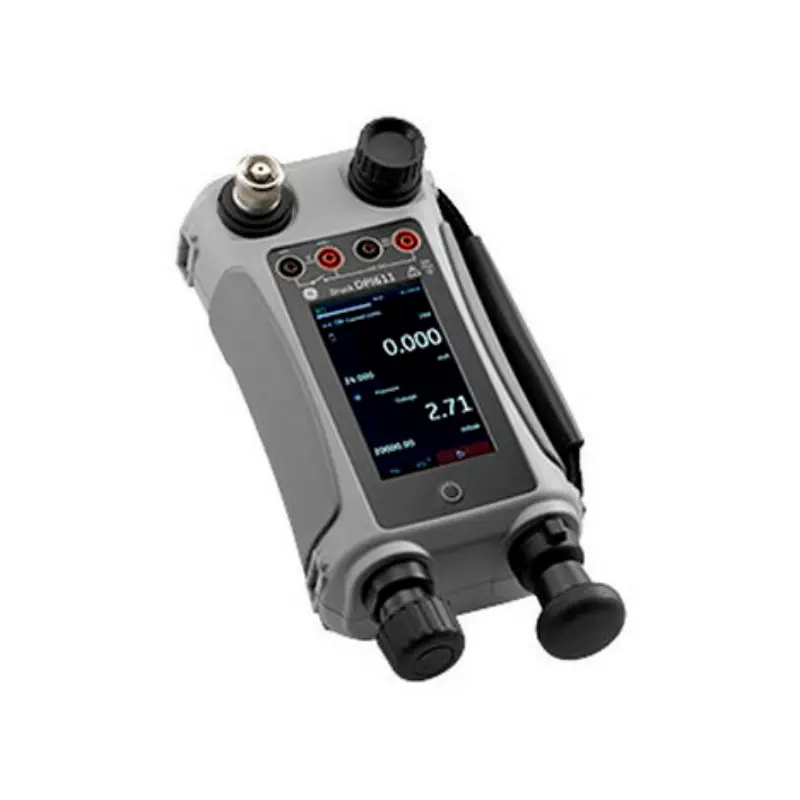

Wholesale Druck DPI 611 Handheld Pressure Calibrator Manufacturers, Exporter

The DPI 600 family was initially released in 1984, and the DPI 611 is its fourth generation. By offering all the instruments for pressure generation and signal measurement in compact, self-contained containers, the DPI 600 family transformed test and calibration. The DPI 600, now simply referred to as the "Druck," quickly emerged as the workhorse of the industry.

Send Inquiry

Product Description

Overview & Key Features

Enhanced Portability & Form Factor

●
Ultra-Compact Profile: Engineered to be half the size and significantly more portable, boasting a 33% mass reduction compared to the DPI 610.
●
Ergonomic Excellence: Streamlined dimensions facilitate easier transport and field maneuverability.

Superior Pressure Generation

●
Rapid Pressurization: Reaches 20 bar (300 psi) in under half a minute through a high-efficiency integrated pump.
●
Powerful Suction: Capable of achieving a 95% vacuum level for comprehensive negative pressure testing.

Unrivaled Precision

●
Refined Measurement: Delivers pressure readings with 2x the precision of previous generations.
●
Elite Electrical Performance: Provides three-fold improvement in electrical signal accuracy for mission-critical calibrations.

Intuitive User Experience

●
Streamlined Navigation: Features a gesture-based touchscreen utilizing a central DASHBOARD for oversight.
●
Rapid Configuration: "Quick TASK" menus and a "FAVORITES" library allow for a three-tap setup of any routine.
●
Efficient Workflow: Minimizes menu-diving to ensure the device is ready for use in seconds.

Automated Documentation

●
Digital Analysis: Automatically computes PASS/FAIL deviations to eliminate manual calculation errors.
●
Seamless Integration: Archives findings internally and syncs effortlessly with professional calibration management software.

Terminology Improvements

Smaller/Lighter: Ultra-Compact / Mass reduction

Generates: Pressurization / Reaches

Accuracy: Precision / Elite Performance

Simplified: Gesture-based / Streamlined

Interfaces: Syncs / Integration

General Specifications

Display	Size: 110 mm (4.3in) diagonal. 480x272 pixels. LCD colour display with touch screen
Internal memory	8 GB (nominal) user memory for automated procedures, calibration data and data log files
Languages	English (default), Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish
Operating temperature	-10° to 50°C (14° to 122°F). 0° to 40°C (32° to 104°F) when powered from optional mains adaptor IO620-PSU
Storage temperature	-20° to 70°C (-4° to 158°F)
Ingress protection	IP 54. Protected against dust and splashing water from any direction
Humidity	0 to 90% RH non-condensing. To Def Stan 66-31, 8.6 cat III
Shock / vibration	BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2
Altitude	Up to 2000m
EMC	BS EN 61326-1:2013
Electrical safety	BS EN 61010-1:2010
Pressure safety	Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Enclosure materials	Polycarbonate, polyamide, polypropylene, acrylic, cotton
Approved	CE marked

Models & Pressure Ranges

DPI611-05G: -1 to 1 bar / -14.5 to 15 psi gauge range

DPI611-07G: -1 to 2 bar / -14.5 to 30 psi gauge range

DPI611-10G: -1 to 7 bar / -14.5 to 100 psi gauge range

DPI611-11G: -1 to 10 bar / -14.5 to 150 psi gauge range

DPI611-13G: -1 to 20 bar / -14.5 to 300 psi gauge range

Delivery Information

Size (L:W:H)	270 x 130 x 120 mm (10.6 x 5.1 x 4.7 in)
Weight	1.96 Kg (4.3 lbs) including batteries

Manuals + Resources: Druck DPI 611 Handheld Pressure Calibrator

Druck DPI 611 Hand-held Pressure Calibrator Fact Sheet

Download

Making-Dynamic-Data-Acquisition-Measurements-Using-a-DAQ

Download

Frequently Asked Questions (FAQ)

What pressure ranges does the Druck DPI 611 support?

The Druck DPI 611 series offers five standard gauge pressure configurations: DPI611-05G (-1 to 1 bar / -14.5 to 15 psi), DPI611-07G (-1 to 2 bar / -14.5 to 30 psi), DPI611-10G (-1 to 7 bar / -14.5 to 100 psi), DPI611-11G (-1 to 10 bar / -14.5 to 150 psi), and DPI611-13G (-1 to 20 bar / -14.5 to 300 psi).

How fast can the DPI 611 generate pressure and vacuum?

Equipped with an integrated high-efficiency pump, the DPI 611 can generate test pressures up to 20 bar (300 psi) in under 30 seconds. It also provides negative pressure capability with up to 95% vacuum.

How does the DPI 611 compare to the legacy DPI 610?

The DPI 611 features an ultra-compact form factor that is half the size of the legacy DPI 610, offering a 33% weight reduction. Additionally, it offers double the pressure measurement precision and a three-fold improvement in electrical signal accuracy.

What is the environmental and ingress protection rating?

The instrument is IP 54 rated, protecting it against dust ingress and water splashing from any direction. It operates from -10°C to 50°C and meets stringent shock and vibration resistance standards (BS EN 61010-1:2010 and MIL-PRF-28800F CLASS 2).

Does the DPI 611 support automated documentation and software integration?

Yes. The DPI 611 features 8 GB internal memory for storing calibration routines and data logs. It automatically performs digital PASS/FAIL deviation analysis and synchronizes data with professional calibration management software.

What are the physical dimensions and weight of the device?

The handheld calibrator measures 270 x 130 x 120 mm (10.6 x 5.1 x 4.7 in) and weighs only 1.96 kg (4.3 lbs), including installed batteries, ensuring ergonomic field handling.
