Druck's DPI610 series pressure calibrator was an immediate success when it was introduced in 1997. Four inherently safe versions and seven commercial versions comprised the company's flagship calibrator model. The most recent iteration of the still-popular device in the industry is the DPI610E.
The DPI610E was created by combining a number of beloved characteristics from the original DPI601/605/610/615 devices with the most recent developments in pressure measurement technology.
Our newest portable is a battery-operated, standalone manual pressure gauge that can measure loops, generate pressure, and provide fine control. Most notably, it was created for instrument technicians based on feedback from field workers who stressed the importance of performance in pressure calibrators.
The DPI610E delivers intriguing new capabilities, such as an inbuilt barometer with a barometer port for simple calibration, while maintaining the distinctive handle, user-friendliness, and sturdy, dependable design of its predecessors. Furthermore, the DPI610E has an upgraded battery that may be used continuously for more than 60 hours after a single, two-hour charge.
Over 60 hours of continuous operation from a single, quick two-hour charge cycle.
Integrated dedicated barometer port simplifies precision barometric reference calibration.
IP54-rated environmental protection keeps dust and splashing liquids safely at bay.
| Display | Size: 112mm (4.4in) diagonal, 320 x 240 pixels, LCD monochrome display |
| Internal memory | 100,000 - point data logging memory, store user procedures and test results |
| Languages | English, Chinese, Dutch, French, German, Italian, Japanese, Korean, Portuguese, Spanish, Turkish, Polish |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
| Storage temperature | -20°C to 70°C (-4°F to 158°F) |
| Ingress protection | IP 54. Protected against dust and splashing water from any direction |
| Humidity | 0 to 90% RH non-condensing. To Def Stan 66 - 31, 8.6 cat III |
| Shock / vibration | BS EN 61010 - 1:2001 / MIL - PRF - 28800F CLASS 2 |
| Altitude | Up to 2000m |
| EMC | BS EN 61326 - 1:2013 |
| Electrical safety | BS EN 61010 - 1:2010 |
| Pressure safety | Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) |
| Enclosure materials | PC ABS, Polycarbonate, polyamide, polypropylene, acrylic, cotton (strap) |
| Approvals | CE marked, UKCA marked Hazardous Area version: (Ordering code 'SPC or SHC') ATEX, IECEx, UKEX, CCOE, XPL, KC, NEPES, ECASEx to EN60079 - 11:2012 Ex ia IIC T4 Ga (-10 to 50°C), CSA approved (Canada & US): Class I, Zone 0, AEx/Ex ia IIC T4 Ga (-10°C≤Ta≤ + 50°C) |
| Power supply | Integral Lithium ion battery Mains adaptor P/N IO610E - PSU 100 - 260V 50/60Hz AC, Output DC V=15V, 1.6A |
| Battery life | Much improved battery performance typically: • 100% Volts Measure, 0% Current Source 4mA, 0% Current Source 20mA -> 90 hours • 80% Volts Measure, 10% Current Source 4mA, 10% Current Source 20mA -> 74.8 hours • 40% Volts Measure, 40% Current Source 4mA, 20% Current Source 20mA -> 62 hours • 0% Volts Measure, 0% Current Source 4mA, 100% Current Source 20mA -> 31.5 hours • Full recharge in 2 hours with supplied charger |
| Connectivity | USB client micro - USB with supplied cable |

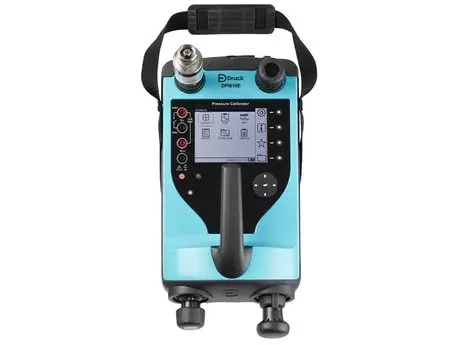

The DPI610E is a battery-operated, standalone portable pressure calibrator designed to generate pressure, measure loops, and offer fine control. It also includes an integrated barometer with a dedicated calibration port and internal memory for recording 100,000 data logging points.
The integral Lithium-ion battery delivers up to 90 hours of operation depending on working mode (over 60 hours continuous use typically). A full recharge is achieved in 2 hours using the supplied 100-260V AC mains adaptor.
Hazardous area versions (ordering code 'SPC' or 'SHC') are certified under ATEX, IECEx, UKEX, CCOE, XPL, KC, NEPES, and ECASEx to EN60079-11:2012 Ex ia IIC T4 Ga (-10°C to 50°C), as well as CSA certified for Class I, Zone 0, AEx/Ex ia IIC T4 Ga.

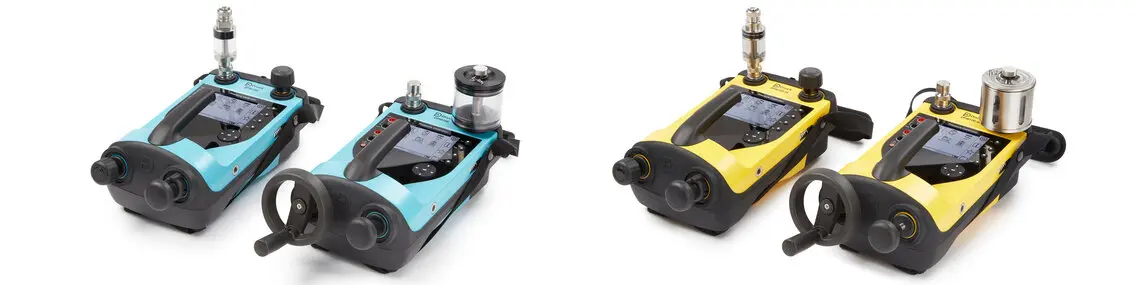

The Pneumatic unit measures 350 x 150 x 180 mm (13.8 x 5.9 x 7.1 in) and weighs 3.6 kg (8 lbs). The Hydraulic model measures 400 x 150 x 190 mm (15.7 x 5.9 x 7.5 in) and weighs 4.4 kg (10 lbs), both weights inclusive of the battery.
The calibrator provides IP54 ingress protection against dust and splashing water from any direction, operates at temperatures between -10°C and 50°C, and is rated for altitudes up to 2000 meters.
The DPI610E features a micro-USB client interface and comes with a supplied cable to easily connect and transfer logged procedures and test results to external systems.
