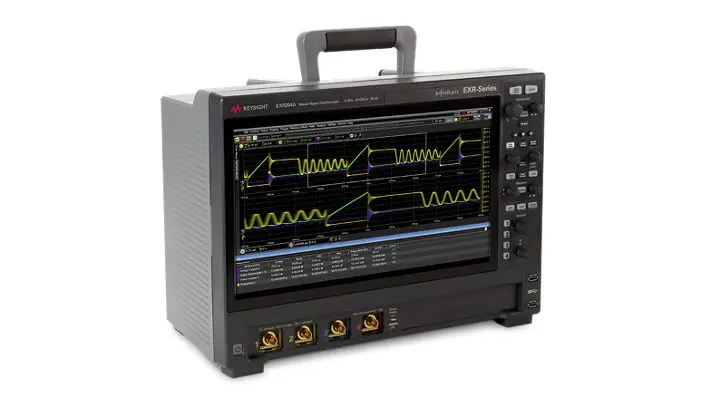

1 / 4
2 GHz on all 4 analog channels
Faster test speeds than ever before with ASIC technology
Accurate measurements with ENOB up to 9.0, noise as low as 43 µV
Maximum memory is a flexible 1.6 G points
Capabilities are extended with 7-in-1 instrument integration
Upgradeable in every possible way – including bandwidth and channel upgrades
| Bandwidth | 4 Channels Model | 8 Channels Model |
|---|---|---|
| 500 MHz | EXR054A | EXR058A |
| 1 GHz | EXR104A | EXR108A |
| 2 GHz | EXR204A | EXR208A |
| 2.5 GHz | EXR254A | EXR258A |
| 4 GHz | EXR404A | EXR408A |
| 6 GHz | EXR604A | EXR608A |
| Parameter | Category | Details & Values |
|---|---|---|
| Weight | Frame | 4-channel models: 13.75 kg (30.3 lbs.) 8-channel models: 14.50 kg (32.0 lbs.) |
| Shipping | 4-channel models: 20.95 kg (46.2 lbs.) 8-channel models: 21.90 kg (48.3 lbs.) |
|
| Dimensions | Height | 327 mm (12.9 in) with feet retracted |
| Width | 443 mm (17.5 in) | |
| Depth | 223 mm (8.8 in) including knobs and rear feet |
The Infiniium EXR-Series is available in both 4-channel and 8-channel models, with bandwidth options ranging from 500 MHz up to 6 GHz (500 MHz, 1 GHz, 2 GHz, 2.5 GHz, 4 GHz, and 6 GHz).
Yes, the oscilloscope is fully upgradeable in every possible way, allowing future hardware and software expansions including bandwidth increases and channel additions.
The series includes 100 Mpts of standard acquisition memory per channel and can be extended up to a maximum flexible capacity of 1.6 Gpts.
ASIC acceleration enables significantly faster test speeds, lower noise floors down to 43 µV, and high signal fidelity with an effective number of bits (ENOB) up to 9.0.
The 7-in-1 integration consolidates multiple workbench tools into a single unit, eliminating the need for standalone instruments and saving physical bench space.
The unit measures 327 mm (H) x 443 mm (W) x 223 mm (D). Unpackaged mainframe weight is 13.75 kg (30.3 lbs.) for 4-channel models and 14.50 kg (32.0 lbs.) for 8-channel models.
