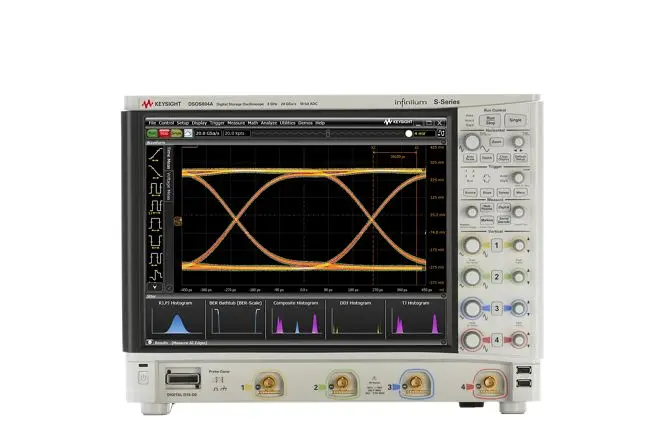

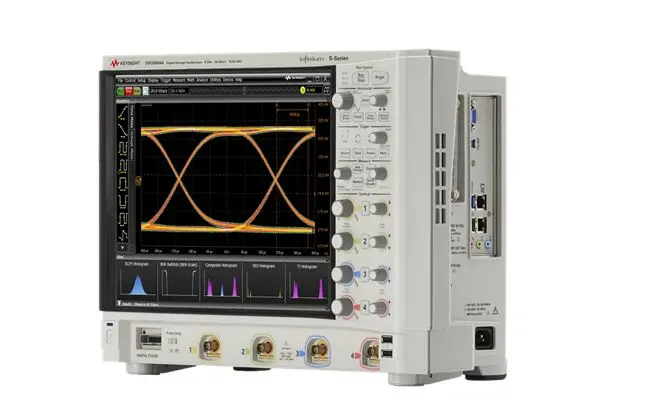

Minimize the risk of launching products susceptible to bugs and failures with an oscilloscope that displays the truest, granular details. Built from the same high-performance standard set by the MXR A, the MXR B-Series boasts newer, hardware-accelerated technology that speeds up test time. In addition to faster hardware, the MXR B-Series includes standard features like Keysight’s state-of-the-art InfiniiScan Event Identification Software, a built-in, 50 MHz arbitrary waveform generator, and a 50 MHz frequency response analyzer. The automated analysis tools, extra-low, front-end noise, and uncompromised performance of the MXR B-Series enable you to test faster, shorten time to market, and design without compromise using an oscilloscope that delivers dependable results.
Newer architecture speeds up test execution and cuts design validation cycles.
State-of-the-art event identification software identifies intermittent signal anomalies.
Standard integrated arbitrary waveform generator and frequency response analyzer.
High signal integrity and true granular detail visualization for sensitive measurements.
| DSO Model | MSO Model | Analog Bandwidth | Max Sample Rate | ADC Bits |
|---|---|---|---|---|
| DSOS054A | MSOS054A | 500 MHz | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | 10 |
| DSOS104A | MSOS104A | 1 GHz | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | |
| DSOS204A | MSOS204A | 2 GHz | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | |
| DSOS254A | MSOS254A | 2.5 GHz | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | |
| DSOS404A | MSOS404A | 4 GHz | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | |
| DSOS604A | MSOS604A | 6 GHz (when two channels are active, four-channel bandwidth is 4 GHz) | 20 GSa/s (2 channels), 10 GSa/s (4 channels) | |
| DSOS804A | MSOS804A | 8 GHz (when two channels are active, four-channel bandwidth is 4 GHz) | 20 GSa/s (2 channels), 10 GSa/s (4 channels) |
| Parameter | S-054A | S-104A | S-204A | S-254A | S-404A | S-604A | S-804A |
|---|---|---|---|---|---|---|---|
| Input Channels | DSO: 4 analog; MSO: 4 analog, 16 digital | ||||||
| Bandwidth (-3 dB) 50 Ω | 500 MHz | 1 GHz | 2 GHz | 2.5 GHz | 4 GHz | 6 GHz | 8 GHz |
| Bandwidth (-3 dB) 1 MΩ | 100 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz | 500 MHz |
| Vertical Resolution | 10 bits, up to 16 bits with high-resolution mode | ||||||
| Typical Rise/Fall Time | 860 ps | 430 ps | 215 ps | 172 ps | 107.5 ps | 71.7 ps | 53.8 ps |
| Rise/Fall Time (Fast Transition) | 620 ps | 310 ps | 155 ps | 124 ps | 77.5 ps | 51.7 ps | 33.8 ps |
| ENOB (typical) | 8.1 | 7.8 | 7.5 | 7.4 | 7.2 | 6.8 | 6.4 |
| Input Impedance | 50 Ω ± 3.5% (typically +1% at 25 °C) / 1 MΩ ± 1% (14 pF typical) | ||||||
| Input Sensitivity | 50 Ω: 1 mV/div to 1 V/div; 1 MΩ: 1 mV/div to 5 V/div | ||||||
| Input Coupling | 50 Ω: DC; 1 MΩ: DC, AC (> 11 Hz) | ||||||
| Bandwidth Limit Filters | Analog: 20 MHz, 200 MHz | ||||||
| Analog Bandwidth | 400 MHz |
| Max Input Voltage | ± 40 VPEAK |
| Input Dynamic Range | ± 10 V about threshold |
| Minimum Input Voltage Swing | 500 mVp-p |
| Input Impedance | 100 kΩ ± 2% (~8 pF) at probe tip |
| Resolution | 1 bit |
| Channel-to-Channel Skew | 500 ps (typical) |
| Threshold Selections | TTL, CMOS (5.0 V, 3.3 V, 2.5 V), ECL, PECL, User-defined (± 8 V in 10 mV increments) |
| Threshold Accuracy | ± (100 mV + 3% of threshold setting) |
| Channel-to-Channel Isolation | Digital: 18.3 kHz up to scope bandwidth, in increments of 100 kHz (under 1 GHz) or 10 MHz (1 GHz and above). Filter options: Brick Wall, 4th Order Bessel, and Bandpass. DC to 100 MHz: 50 dB 100 MHz to 1 GHz: 40 dB > 1 GHz: 30 dB |
| DC Gain Accuracy | ± 2% full scale (± 1% typical) |
| Max Input Voltage | 50 Ω: 5 V RMS or ± 40 VMAX (DC+VPEAK). Probing technology allows for testing of higher voltages. 1 MΩ: 30 V RMS or ± 40 VMAX (DC+VPEAK). Included N2873A 10:1 probe supports 300 V RMS or ± 400 VMAX (DC+VPEAK). No transient overvoltage allowed in either 50 Ω or 1 MΩ path. |
| Offset Range (50 Ω) | All vertical ranges: ± 12 divisions or ± 4 V, whichever is smaller. < 10 mV/div: ± 2 V ≥ 10 mV/div: ± 5 V ≥ 20 mV/div: ± 10 V ≥ 100 mV/div: ± 20 V |
| Offset Range (1 MΩ) | ≥ 1 V/div: ± 40 V |
| Offset Accuracy | ≤ 2 V: ± 0.1 div ± 2 mV ± 1% ≥ 2 V: ± 0.1 div ± 2 mV ± 1.5% |
| Dynamic Range | +4 divisions from center screen |
| DC Voltage Measurement Accuracy | Dual cursor: [(DC gain accuracy) + (resolution)] Single cursor: [(DC gain accuracy) + (offset accuracy) + (resolution/2)] |
The series provides options from 500 MHz up to 8 GHz. Specific models include 500 MHz (DSOS054A/MSOS054A), 1 GHz (DSOS104A/MSOS104A), 2 GHz (DSOS204A/MSOS204A), 2.5 GHz (DSOS254A/MSOS254A), 4 GHz (DSOS404A/MSOS404A), 6 GHz (DSOS604A/MSOS604A), and 8 GHz (DSOS804A/MSOS804A).
All models feature an intrinsic 10-bit vertical analog-to-digital converter (ADC) resolution, which reaches up to 16 bits in high-resolution mode. The maximum sampling rate is 20 GSa/s on 2 channels and 10 GSa/s across all 4 channels.
MSO models equip users with 16 dedicated digital timing channels alongside 4 analog channels. The digital channels feature 400 MHz bandwidth, a ±40 VPEAK maximum input voltage, user-defined or standard logic threshold selections (TTL, CMOS, ECL, PECL), and 500 ps typical channel-to-channel skew.
The instruments integrate hardware-accelerated test technology, InfiniiScan Event Identification Software, a 50 MHz arbitrary waveform generator (AWG), and a 50 MHz frequency response analyzer (FRA) as standard features.
With feet retracted, the unit measures 33 cm (12.9 in) high, 43 cm (16.8 in) wide, and 23 cm (9 in) deep. The instrument frame weight is 12 kg (26.4 lbs), with a total packaged shipping weight of 20 kg (44.1 lbs).
For 50 Ω path, the maximum voltage is 5 V RMS or ± 40 VMAX (DC+VPEAK). For 1 MΩ path, it supports 30 V RMS or ± 40 VMAX (DC+VPEAK), expandable to 300 V RMS or ± 400 VMAX using the included N2873A 10:1 passive probe.
