Your High Definition Multi-media Interface (HDMI) designs for set-top boxes, digital video recorders, DVD players, and motherboard systems can be quickly and easily verified and debugged with the D9021HDMC electrical performance validation and compliance software for HDMI transmitters that supports Infiniium V, Z, and UXR-Series oscilloscopes.

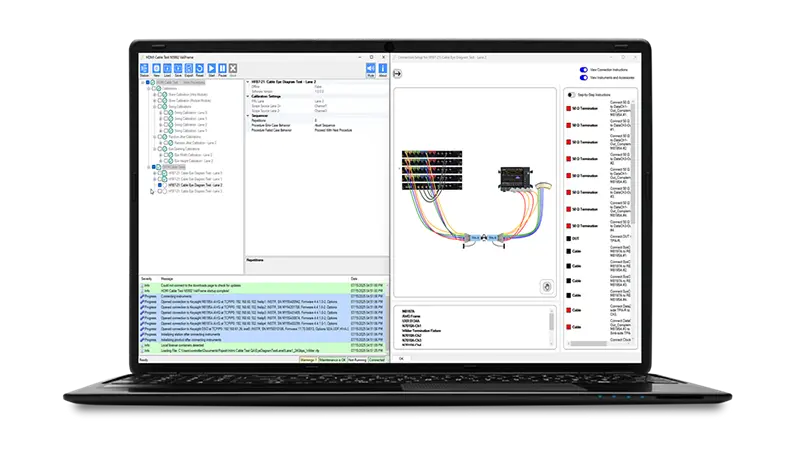

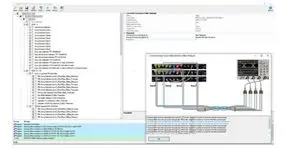

The HDMI compliance test program allows you to perform HDMI electrical checklist tests automatically and presents the findings in an extensive report format. The report includes measurement data as well as a margin analysis that illustrates the degree to which your device passed or failed each test.
Runs electrical checklist evaluations automatically, delivering granular margin analyses and comprehensive test reports.
Enables execution on the oscilloscope or offline on a PC with the Infiniium Offline D9010BSEO licensed compliance application.
Provides complete support spanning HDMI 2.0, HDMI 2.1 TMDS, HDMI 2.1 FRL, and HDMI 2.2 FRL signaling standards.

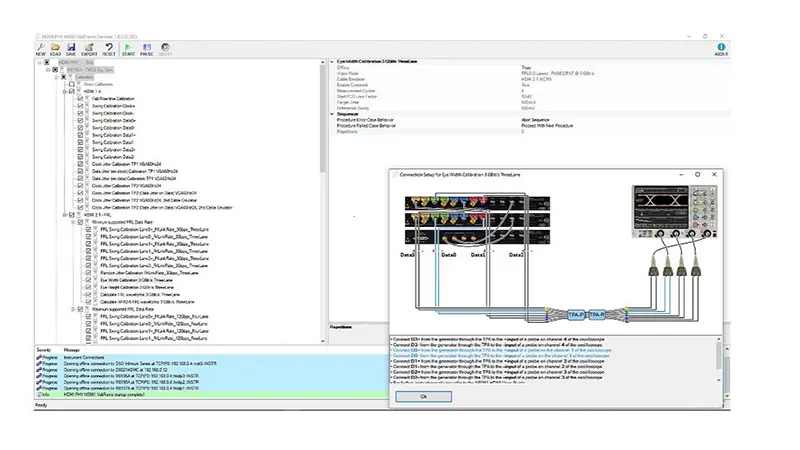

Waveform post-processing is supported by this software, which significantly increases productivity. After waveforms have been obtained, post-processing can be carried out on the oscilloscope or on a PC running an Infiniium Offline D9010BSEO licensed compliance application. A test point adapter with an HDMI plug (TPA-P), probe amplifiers and probe heads, premium matched cables, and an EDID and SCDC controller device are additional necessary parts for the solution.

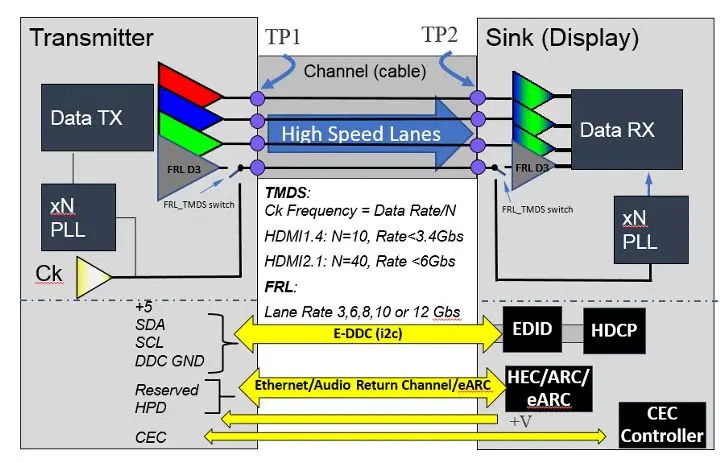

Originally HDMI 2.0, HDMI2.1 TMDS For both TP2 differential measurements and single-ended measurements, HDMI2.1 FRL and HDMI2.2 FRL require single-ended connections. N7010A active termination adapters are the most affordable connection option offered by Keysight probe and switching, whereas N7003A infiniimode amplifiers with internal switches allow for full FRL testing on a single connection. A mainframe and switch modules are needed for the switch matrix system, which allows for full automation for testing every HDMI version for a device.
