DC current sourcing, simulation, and loop current measurement.
Clear screen visibility in dark or low-light working environments.
Durable, rugged housing built for everyday field conditions.
Integrated intelligent power-saving functionality.
| Parameter | Range | UT705 Accuracy |
|---|---|---|
| Measure Accuracy | ||
| DC Voltage (V) | 30.000V | ±(0.02+2) |
| DC Current (A) | 24.000mA | ±(0.02+2) |
| Loop Current | 24.000mA | ±(0.02+2) |
| Source Accuracy | ||
| DC Current (Source) | 24.000mA | ±(0.02+2) |
| DC Current (Simulate) | 24.000mA | ±(0.02+2) |
| Specification | Details |
|---|---|
| Product Color | Red and grey |
| Product Net Weight | 410g |
| Product Size | 96mm x 193mm x 47mm |

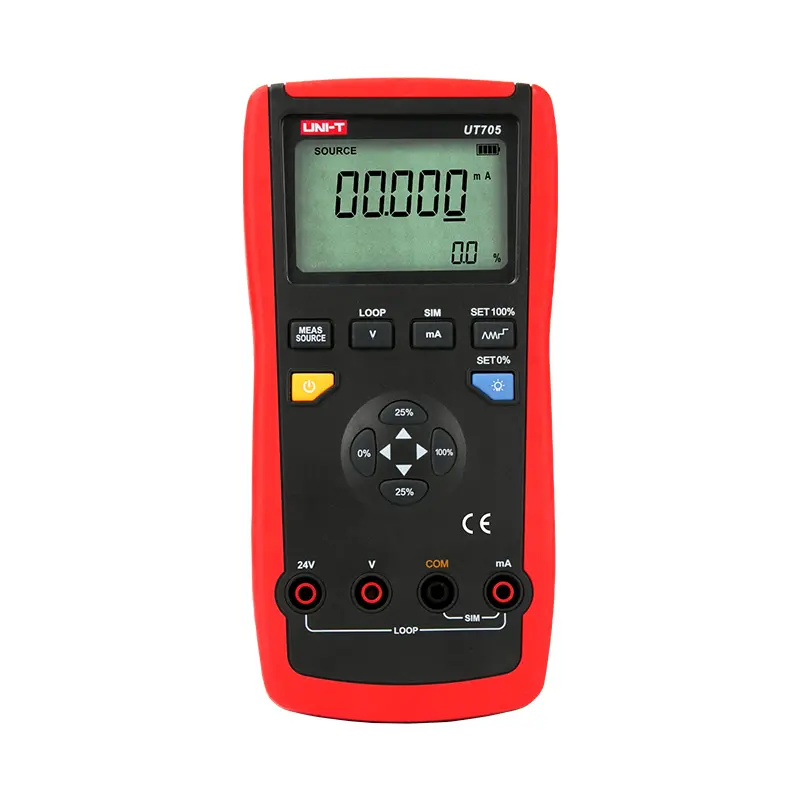

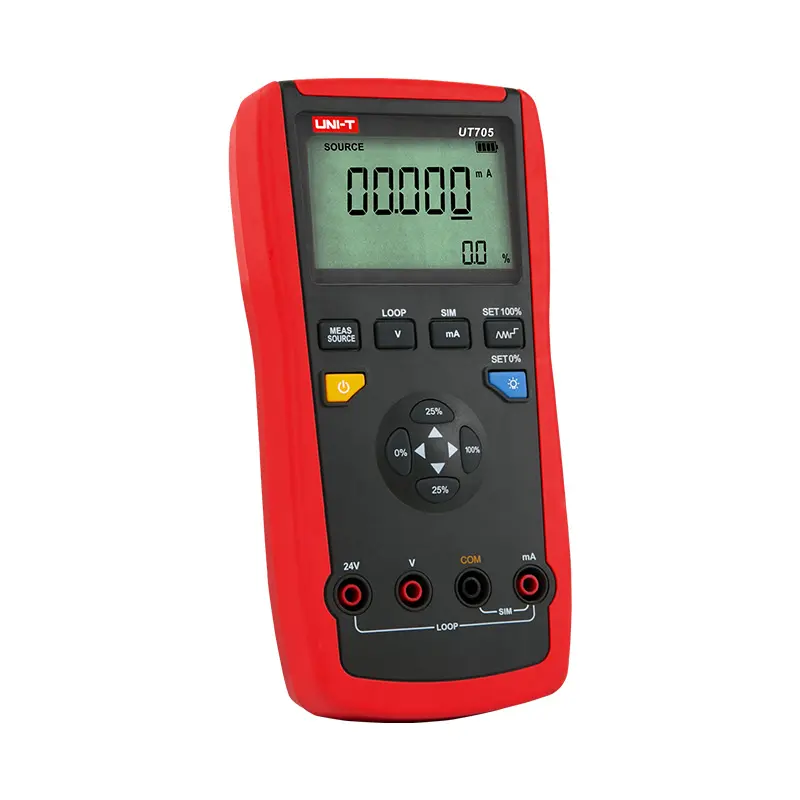

The UT705 is engineered specifically for single-function loop calibration and maintenance tasks, offering high-precision DC current generation, simulation, and loop measurement capabilities.
The UT705 provides a high measurement accuracy of ±(0.02+2) across DC voltage (up to 30.000V), DC current (up to 24.000mA), and loop current (up to 24.000mA).
Yes, the device features both DC current sourcing and simulation up to 24.000mA with a high accuracy rating of ±(0.02+2), complemented by configurable steps and ramp outputs.
Yes, the unit features 1-meter drop resistance, an LCD display with backlight for visibility in dark workspaces, and an auto power-off function to preserve battery life.
The calibrator weighs approximately 410g and features a compact profile measuring 96mm x 193mm x 47mm, housed in a red and grey case.
Official documentation includes the UT705 technical specifications datasheet and the complete UT705 English User Manual.
