| Category | Details |
|---|---|

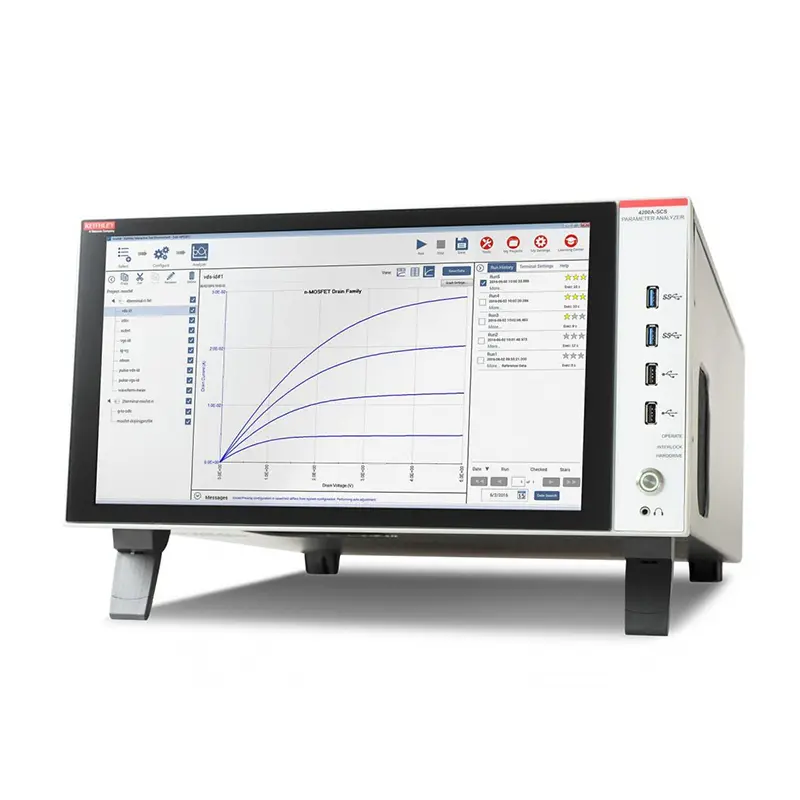

| Mainframe Display | 15.6 in. LCD, capacitive touchscreen |
| 1920×1080 full HD | |
| 10-point touch | |
| External Display | External VGA, HDMI, or Display Port: Designed to work with an external monitor of resolution 1920×1080 |
| Temperature Range | Operating: +10° to +40°C |
| Storage: -15° to +60°C | |
| Humidity Range | Operating: 5% to 80% RH, non-condensing |
| Storage: 5% to 90% RH, non-condensing | |
| Altitude | Operating: 0 to 2000 m |
| Storage: 0 to 4000 m | |
| Power Requirements | 100 V to 240 V, 50 to 60 Hz |
| Maximum VA | 1000 VA |
| Regulatory Compliance | Safety: European Low Voltage Directive, NRTL listed by Intertek for the US and Canada |
| EMC: European EMC Directive | |

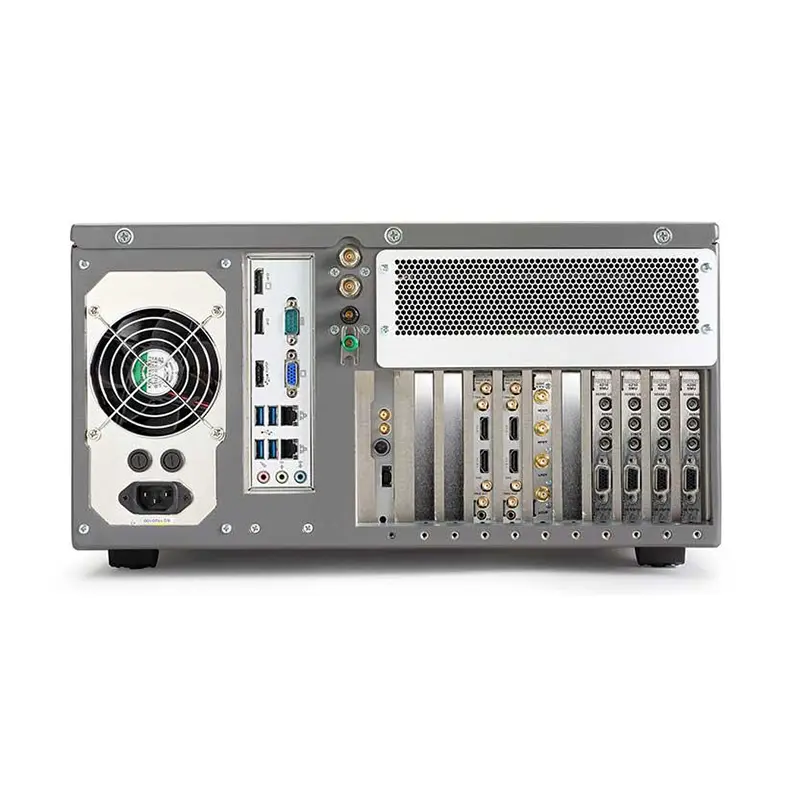

| I/O Ports | USB, SVGA, Display Port, RS-232, GPIB, Ethernet, mouse, keyboard, audio |
| Ground Unit | Voltage error when using the ground unit is included in 4200-SMU, 4210-SMU, and 4200-PA specifications |
| No additional errors are introduced when using the ground unit | |
| Output Terminal Connection | Dual triaxial, 5-way binding post |
| Maximum Current | 2.6 A using dual triaxial connection; 9.5 A using 5-way binding posts |
| Load Capacitance | No limit |
| Cable Resistance | FORCE ≤10, SENSE ≤10 Ω |
| LCD Display Pixel Guideline | LCD displays are made up of a matrix of pixels consisting of red, green, and blue sub-pixels. Defects are categorized as Bright or Black pixel/dot defects. |
| Bright dot defect: A dot always lit, visible on a black check pattern. | |
| Black dot defect: A dot that appears black or purple (magenta) on red, green, and/or blue patterns. | |
| Maximum of 6 bright dot defects permitted upon receipt; maximum of 3 pairs. Three adjacent bright dots are not permitted. | |
| Maximum of 5 black dot defects permitted; two adjacent black dots count as a single defect. Maximum of 3 pairs. Three adjacent black dots are not permitted. |
| Model | Description | Key Measurements | Range | Measure Resolution |
|---|---|---|---|---|
| 4200-SMU | Medium Power Source-Measure Unit | DC I-V | ±105 mA, ±210 V | 0.2 μV, 100 fA |
| 4201-SMU | Medium Power SMU with increased low I stability | DC I-V | ±105 mA, ±210 V | 0.2 μV, 100 fA |
| 4210-SMU | High Power Source-Measure Unit | Very Low Frequency C-V, OSCV | ±1.05 A, ±210 V | 0.2 μV, 100 fA |
| 4211-SMU | High Power SMU with increased low I stability | DC I-V | ±1.05 A, ±210 V | 0.2 μV, 100 fA |
| 4200-PA | Remote Preamplifier Module | Extends current ranges for all SMUs | - | 0.2 μV, 10 aA |
| 4210-CVU | Capacitance-Voltage Unit | AC Impedance, C-V, C-f, C-t | 1 kHz - 10 MHz, ±30 V built-in DC bias (60 V differential), ±210 V DC bias with SMUs, 100 mV AC drive | 1 aF, 1 nS, 0.001 degree |
| 4215-CVU | High Resolution Capacitance-Voltage Unit | AC Impedance, C-V, C-f, C-t | 1 kHz - 10 MHz, ±30 V built-in DC bias (60 V differential), ±210 V DC bias with SMUs, 1 V AC drive | 1 kHz, 1 aF, 1 nS, 0.001 degree |

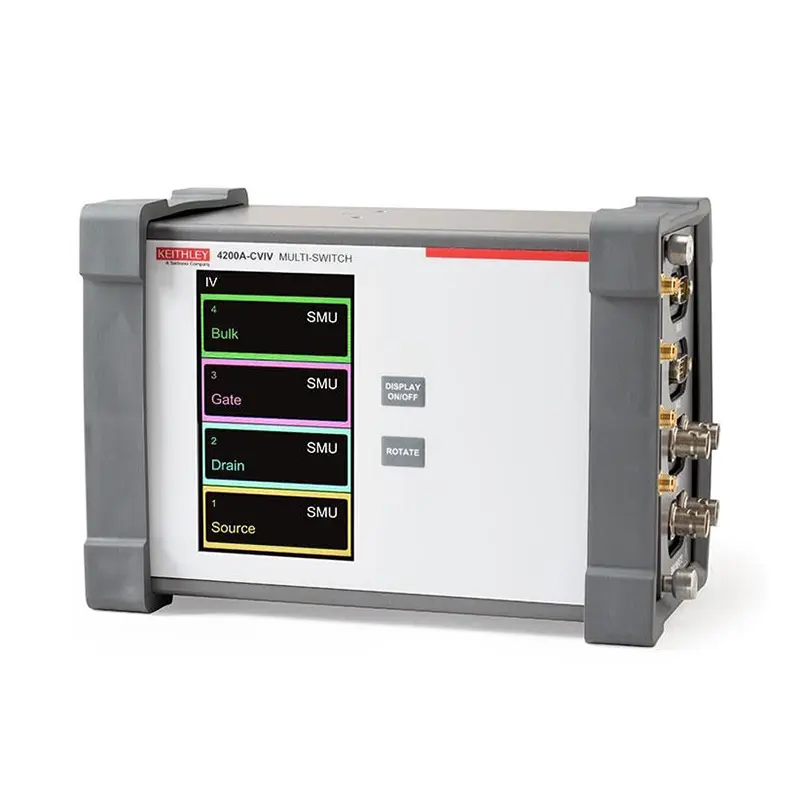

| 4200A-CVIV | I-V/C-V Multi-Switch Module | DC I-V and C-V with Automatic Switching | - | - |
| 4225-PMU | Ultra-Fast Pulse Measure Unit | Pulsed I-V, SegmentARB™ Multi-level Pulsing, Transient Waveform Capture | ±40 V (80 Vp-p), ±800 mA, 200 MS/s simultaneous I and V measure, 2048 unique segments, 20 ns PW source only, 60 ns PW source/measure | 75 nA |
| 4225-RPM | Remote Preamplifier/Switch Module | Enables automatic switching between SMU, CVU and PMU, Extends current range of 4225-PMU unit | - | 200 pA |
| 4220-PGU | High Voltage Pulse Generator Unit | Pulsed Voltage Source, SegmentARB™ Multi-level Pulsing | ±40 V (80 Vp-p), 2048 unique segments | - |
| Ground Unit | Built-in, Low Noise Ground Unit | - | Triaxial connection: 2.6 A, Binding post: 9.5 A | - |
