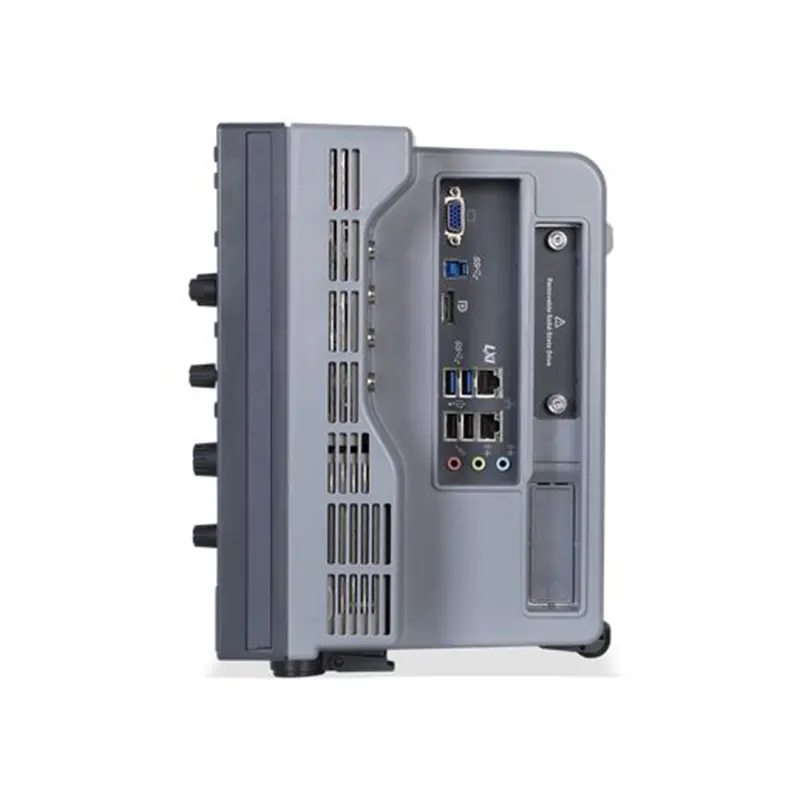

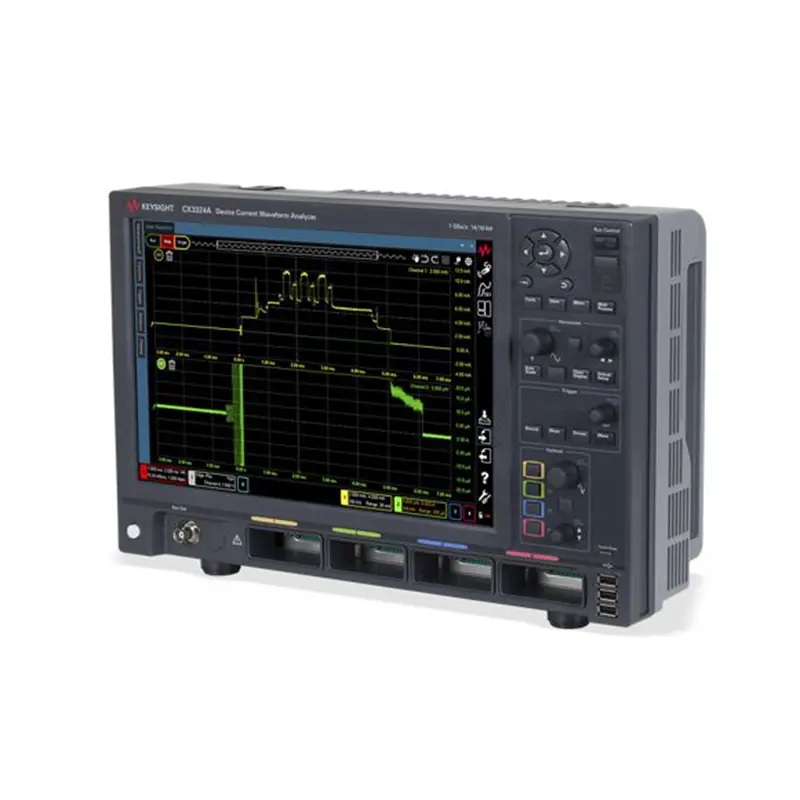

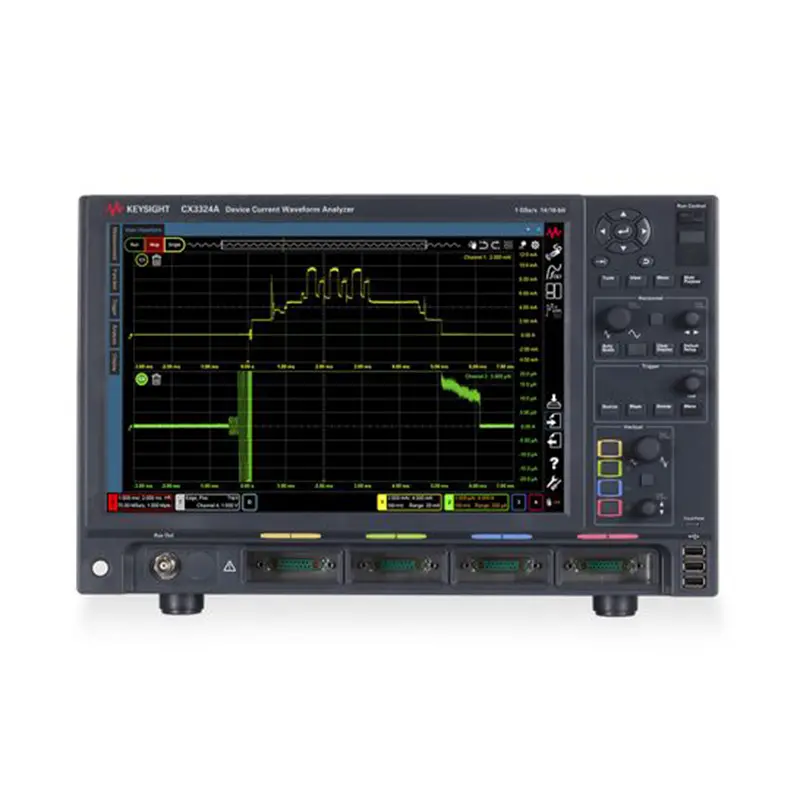

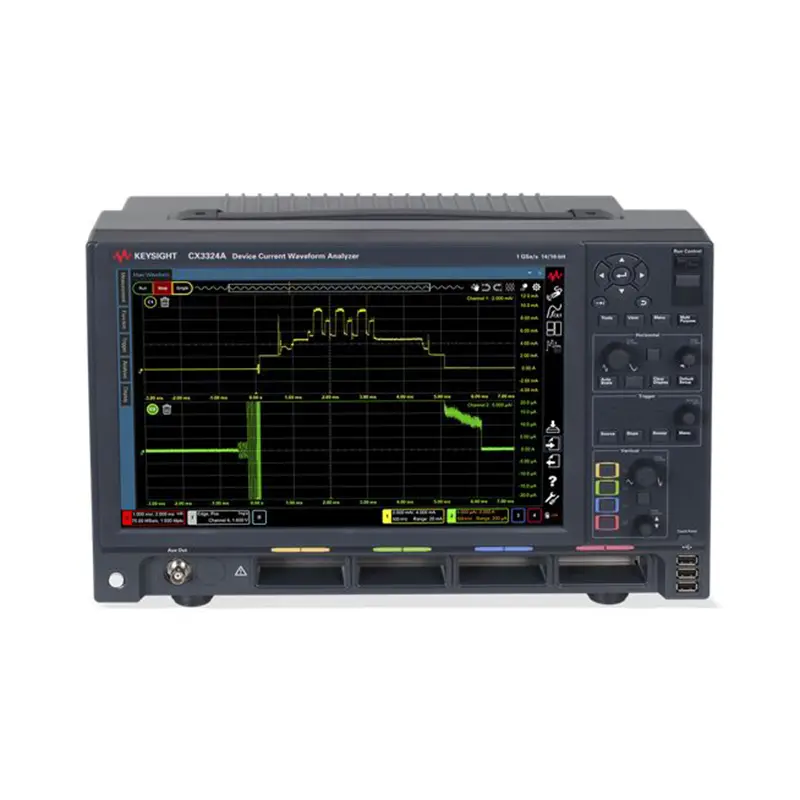

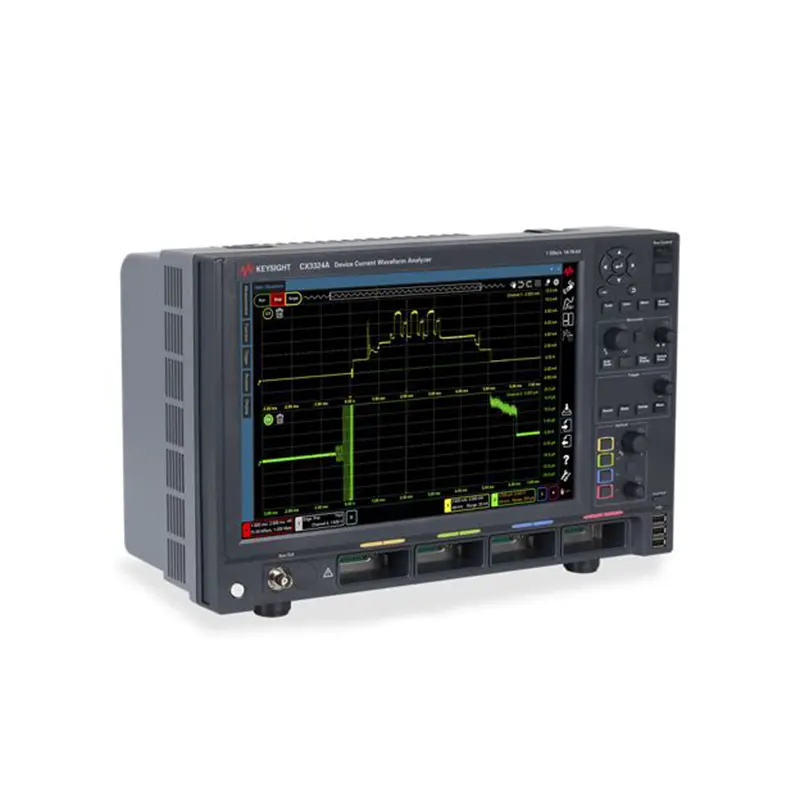

For engineers and academics that require more than two channels for current waveform studies, the CX3324A is a 4-channel variant. Power measurements are made possible by combining a passive probe interface (CX1151A) with a differential sensor (CX1105A) or current sensor (CX1101A, CX1102A, CX1103A, and CX1104A). There are options for memory depth (4 Mpts/ch, 16 Mpts, 64 Mpts, and 256 Mpts) and bandwidth (50 MHz, 100 MHz, and 200 MHz). For CX3300 users that require greater performance, upgrades are also offered for both bandwidth and memory depth options. This 4-channel type can be utilized with an 8-channel digital channel (CX1152A) to increase your triggering versatility.
KEY FEATURES
Mainframe Specifications
- 4 analog channels compatible with current & differential sensors and passive probe interface adapters
- Bandwidth selections: 50 MHz, 100 MHz, 200 MHz
- Memory depth choices: 4 Mpts/ch, 16 Mpts/ch, 64 Mpts/ch, 256 Mpts/ch
- WXGA 14.1-inch capacitive multi-touch display
Measurement Capabilities
- 14-bit or 16-bit broad dynamic range
- Optimized for capturing output from low-noise current sensors
- 1 GSa/s sampling rate and maximum 200 MHz bandwidth
- Common trigger varieties and math operations provided
Optional Accessory Products
- Current sensors: CX1101A, CX1102A, CX1103A, CX1104A
- Differential sensors: CX1105A
- Adapters: CX1151A
- Digital channel: CX1152A (exclusive to CX3324)
Analysis Functions
- “Anywhere” zoom function for in-depth waveform examination
- Automatic power and current profiling tool
- Statistical analysis tools: histogram, CCDF
- Spectrum analysis (FFT) functionality
TECHNICAL SPECIFICATIONS
| Input channels |
8 channels |
| User - defined threshold range |
± 25 V, 10 mV step |
| Maximum input voltage |
± 40 V peak |
| Threshold accuracy |
± (150 mV + 3% of threshold setting) |
| Input dynamic range |
± 25 V |
| Minimum input voltage swing |
500 mV peak - to - peak |
| Input impedance |
10 MΩ ± 2% with approximately 8 pF in parallel |
| Channel - to - channel skew |
4 ns |
| Resolution |
1 - bit |
| Maximum real time sample rate |
500 MSa/s |
| Maximum memory depth per channel |
128 Mpts |
| Minimum width glitch detect |
7 ns |
MODEL COMPARISON
| Comparison Items |
CX3322A |
CX3324A |
| Number of analog channels |
2 |
4 |
| Number of digital channels |
N/A |
8 with CX1152A |
| Max. analog bandwidth |
50 MHz, 100 MHz, or 200 MHz |
50 MHz, 100 MHz, or 200 MHz |
| Max. memory depth |
4 Mpts, 16 Mpts, 64 Mpts or 256 Mpts |
4 Mpts, 16 Mpts, 64 Mpts or 256 Mpts |
| Measurement mode - Scope mode |
Default |
Default |
| Measurement mode - Data logger mode |
Option |
Option |
PHYSICAL & DELIVERY SPECIFICATIONS
Weight: Mainframe: 11 kg
Dimensions (feet retracted): 425.6 mm (W), 266.1 mm (H), 196.7 mm (D)
MANUALS & RESOURCES
FREQUENTLY ASKED QUESTIONS
What are the primary differences between the CX3322A and CX3324A?
The primary difference is the number of channels: the CX3324A features 4 analog channels and supports 8 digital channels using the CX1152A adapter, whereas the CX3322A features 2 analog channels with no digital channel support.
What bandwidth and memory options are supported on the CX3324A?
Bandwidth options available are 50 MHz, 100 MHz, and 200 MHz. Available memory depth choices include 4 Mpts/ch, 16 Mpts/ch, 64 Mpts/ch, and 256 Mpts/ch. Upgrades are available for both bandwidth and memory depth.
Which current and differential sensors are compatible with this mainframe?
The CX3324A works seamlessly with current sensors CX1101A, CX1102A, CX1103A, CX1104A, differential sensor CX1105A, and the passive probe adapter CX1151A.
What measurement dynamic range and sampling rate does the CX3324A provide?
It offers a wide dynamic range of 14-bit or 16-bit resolution, along with a sampling rate of up to 1 GSa/s, optimized specifically for measuring signals from low-noise sensors.
Can the CX3324A operate in Data Logger mode?
Yes, while Scope mode is standard, Data Logger mode is available as an optional measurement upgrade on the CX3324A mainframe.
What are the dimensions and weight of the CX3324A mainframe?
The mainframe weighs approximately 11 kg and has dimensions of 425.6 mm (Width) x 266.1 mm (Height) x 196.7 mm (Depth) with the feet retracted.
