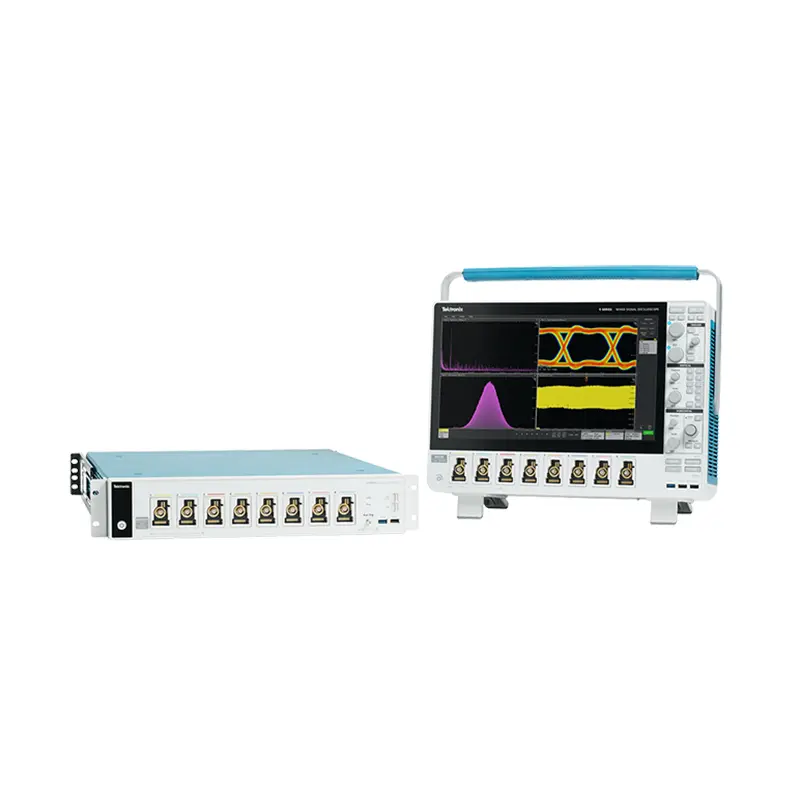

Up to 8 analog or 64 digital logic channels with optional probes
500 MHz (800 ps) and 1 GHz (400 ps) configurations
Up to 16 bits vertical resolution with High Res mode
Ultra-fast real-time sampling across all analog and digital channels
| FlexChannel inputs | 8 |
| Maximum analog channels | 8 |
| Maximum digital channels (with optional logic probes) | 64 |
| Bandwidth (calculated rise time) | 500 MHz (800 ps), 1 GHz (400 ps) |
| DC Gain Accuracy |
50 Ω: ±1.0%, (±2.0% at ≤ 1 mV/div), ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) 1 MΩ: ±1.0%, (±2.0% at ≤ 1 mV/div), ±0.5% of full scale, (±1.0% of full scale at 1 mV/Div and 500 μV/Div Settings) |
| ADC Resolution | 12 bits |
| Vertical Resolution |
8 bits @ 6.25 GS/s 12 bits @ 3.125 GS/s 13 bits @ 1.25 GS/s (High Res) 14 bits @ 625 MS/s (High Res) 15 bits @ 312.5 MS/s (High Res) 16 bits @ ≤125 MS/s (High Res) |
| Sample Rate | 6.25 GS/s on all analog / digital channels (160 ps resolution) |
| Record Length | Up to 500 Mpoints on all analog / digital channels |
| Waveform Capture Rate | >500,000 wfms/s |

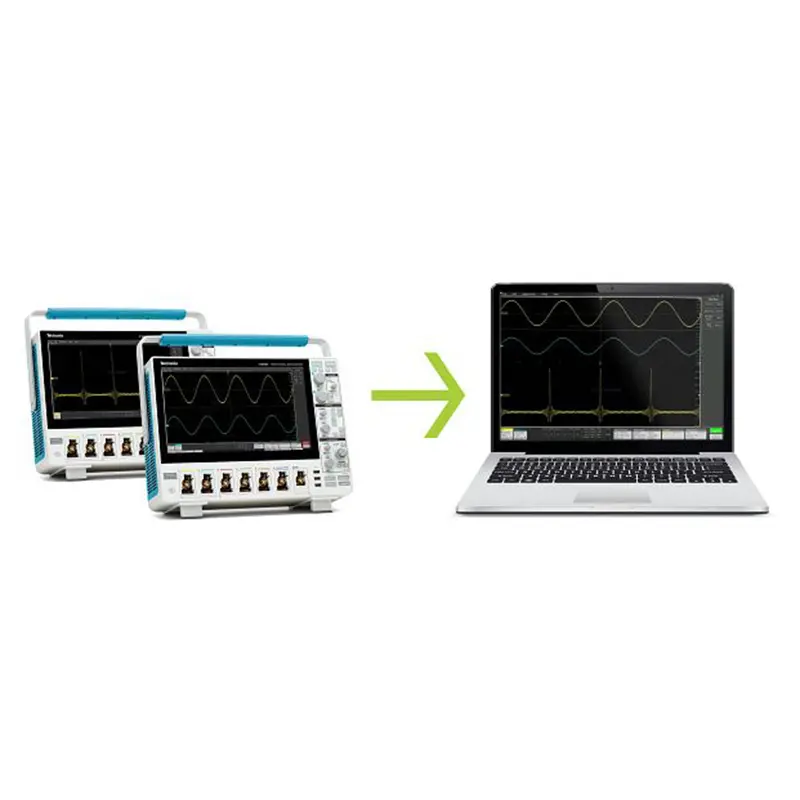

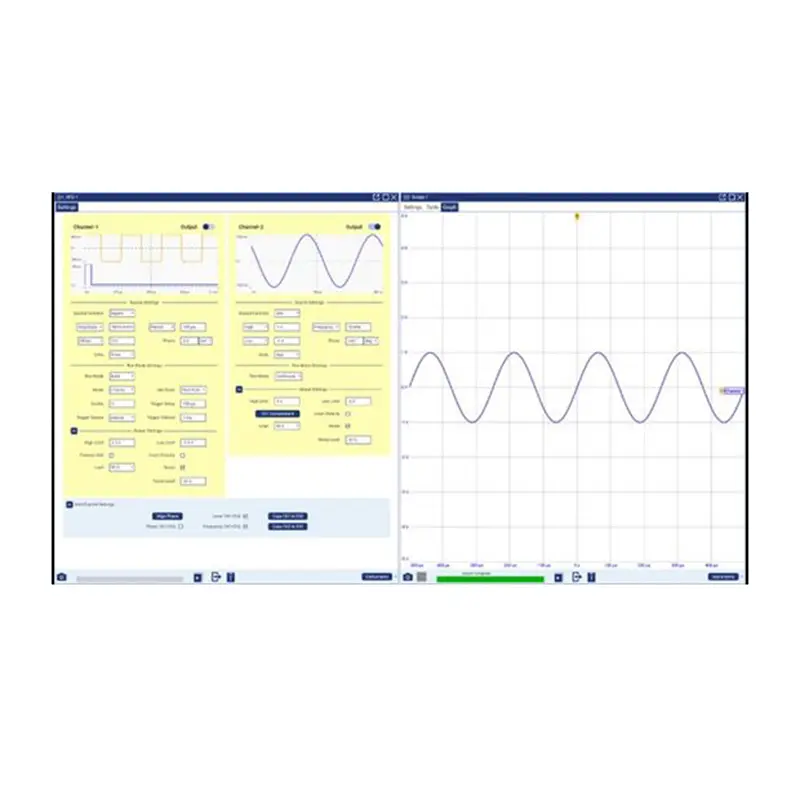

| Arbitrary/Function Generator (opt.) | 13 predefined waveform types with up to 50 MHz output |
| DVM | 4-digit DVM (free with product registration) |
| Trigger Frequency Counter | 8-digit frequency counter (free with product registration) |
| Model | Description |
|---|---|

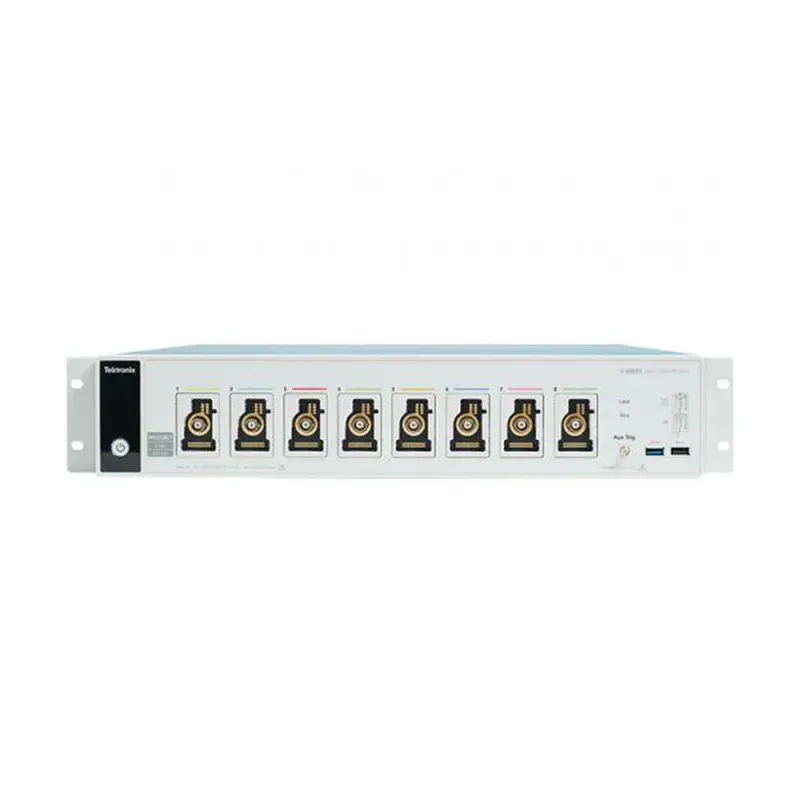

| MSO58LP BW-1000RL | Low Profile Mixed Signal Oscilloscope; 1 GHz bandwidth, (8) FlexChannels with 125 M record length |
| MSO58LPGSA BW-1000RL | Low Profile Mixed Signal Oscilloscope; 1 GHz bandwidth, (8) FlexChannels with 125 M record length; Trade Agreements Act (TAA) compliant |
| MSO58LP BW-500 | Low Profile Mixed Signal Oscilloscope; 500 MHz bandwidth, (8) FlexChannels |
| Dimensions Height | 3.44 in (87.3 mm) |
| Width | 17.01 in (432 mm) |
| Depth | 23.85 in (605.7 mm) |

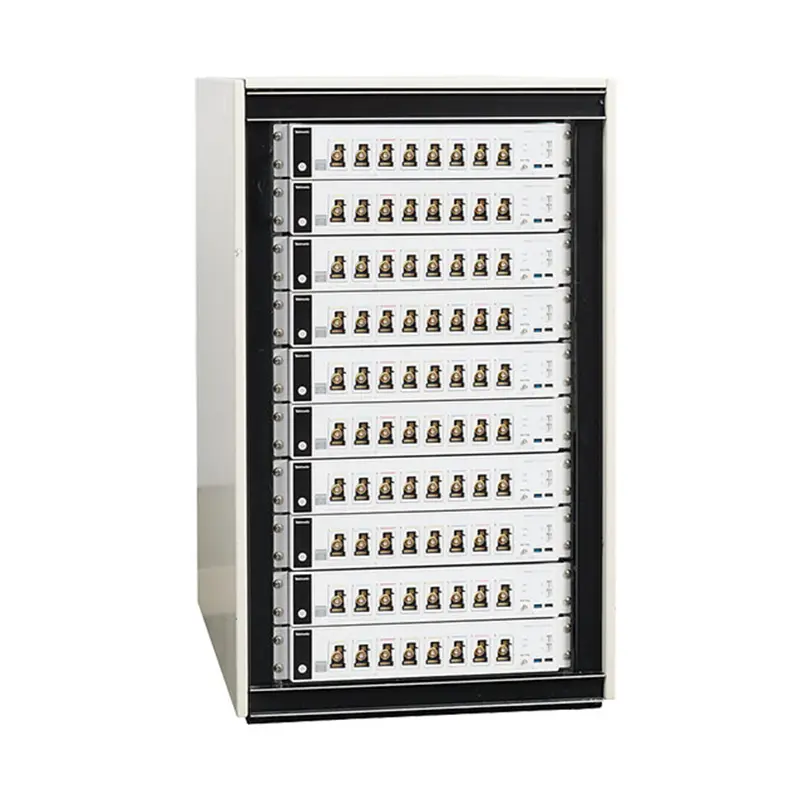

| Fits rack depths from | 24 inches to 32 inches |
| Weight | 25.5 lbs (11.6 kg) |
