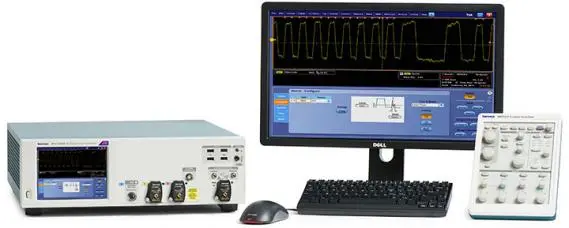

For ultra-bandwidth applications, oscilloscopes from the DPO70000SX Series offer the most precise real-time performance.
| Platform Series | Performance Specifications |
|---|---|
| DPO70000SX ATI Performance Oscilloscopes | · 70 GHz, 59 GHz, or 50 GHz analog bandwidth |
| · Low-noise ATI architecture | |
| · 200 GS/s, 5ps/Sample real-time sample rate | |
| DPO70000SX TekConnect Performance Oscilloscope | · 33, 25, 23, 20, 16, or 13 GHz analog bandwidth |
| · 100 GS/s, 10 ps/Sample real-time sample rate | |
| · Bandwidth upgradable to ATI 70 GHz, 59 GHz, 50 GHz models |
| Parameter | DPO77002SX / DPS77004SX | DPO75902SX / DPS75904SX | DPO75002SX / DPS75004SX | |||
|---|---|---|---|---|---|---|
| ATI Channel | TekConnect Channels | ATI Channel | TekConnect Channels | ATI Channel | TekConnect Channels | |
| Analog channels / bandwidth |
DPO77002SX: 1 ch / 67 GHz 1 ch / 70 GHz (typical) DPS77004SX: 2 ch / 67 GHz 2 ch / 70 GHz (typical) |
DPO77002SX: 2 ch / 33 GHz DPS77004SX: 4 ch / 33 GHz |
DPO75902SX: 1 ch / 59 GHz DPS75904SX: 2 ch / 59 GHz |
DPO75902SX: 2 ch / 33 GHz DPS75904SX: 4 ch / 33 GHz |
DPO75002SX: 1 ch / 50 GHz DPS75004SX: 2 ch / 50 GHz |
DPO75002SX: 2 ch / 33 GHz DPS75004SX: 4 ch / 33 GHz |
| Sample rate per channel | 200 GS/s | 100 GS/s | 200 GS/s | 100 GS/s | 200 GS/s | 100 GS/s |
| Rise time (typical) |
10% to 90%: 5.6 ps 20% to 80%: 4.3 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
10% to 90%: 6.8 ps 20% to 80%: 5.2 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
10% to 90%: 7.8 ps 20% to 80%: 6 ps |
10% to 90%: 13 ps 20% to 80%: 9 ps |
| Vertical Noise (% of full scale), BWE on, max sample rate (typical) | 0.83% of full scale @ 0 V offset (300 mVFS) | 0.71% of full scale @ 0 V offset (500 mVFS) | 0.77% of full scale @ 0 V offset (300 mVFS) | 0.71% of full scale @ 0 V offset (500 mVFS) | 0.69% of full scale @ 0 V offset (300 mVFS) | 0.71% of full scale @ 0 V offset (500 mVFS) |
| Record length, points (each channel, standard) | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M | 62.5 M |
| Record length (each channel, Opt. 10XL) | 125 M | 125 M | 125 M | 125 M | 125 M | 125 M |
| Record length (each channel, Opt. 20XL) | 250 M | 250 M | 250 M | 250 M | 250 M | 250 M |
| Record length (each channel, Opt. 50XL) | 1 G | 1 G | 1 G | 1 G | 1 G | 1 G |
| Timing resolution | 5 ps (200 GS/s) | 10 ps (100 GS/s) | 5 ps (200 GS/s) | 10 ps (100 GS/s) | 5 ps (200 GS/s) | 10 ps (100 GS/s) |
| Duration at highest sample rate (Standard) | 313 µs | 625 µs | 313 µs | 625 µs | 313 µs | 625 µs |
| Duration at highest sample rate (Opt. 10XL) | 625 µs | 1.25 ms | 625 µs | 1.25 ms | 625 µs | 1.25 ms |
| Duration at highest sample rate (Opt. 20XL) | 1.25 ms | 2.5 ms | 1.25 ms | 2.5 ms | 1.25 ms | 2.5 ms |
| Duration at highest sample rate (Opt. 50XL) | 5.0 ms | 10 ms | 5.0 ms | 10 ms | 5.0 ms | 10 ms |

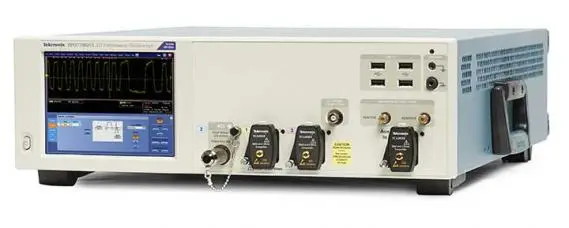

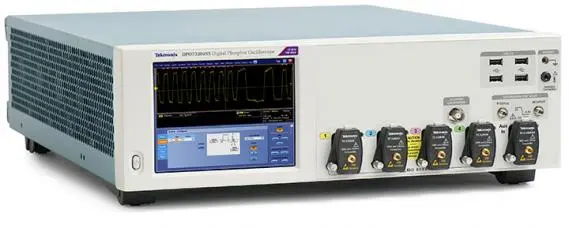

The DPO70000SX ATI Performance models provide 70 GHz, 59 GHz, or 50 GHz analog bandwidth with a real-time sampling rate of 200 GS/s (5 ps/sample). The TekConnect models offer bandwidth options between 13 GHz and 33 GHz with a 100 GS/s real-time sample rate.
ATI (Asynchronous Time Interleaving) architecture is engineered for low noise and ultra-high bandwidth up to 70 GHz at 200 GS/s. In contrast, TekConnect channels support up to 33 GHz at 100 GS/s and can be upgraded to ATI 50 GHz, 59 GHz, and 70 GHz configurations.
The UltraSync multi-unit time synchronization bus enables precise, scalable performance across multi-channel systems, allowing flexible integration within compact 5 ¼" (3U) packages.
The series includes an edge trigger bandwidth exceeding 25 GHz, a unique envelope trigger, and a 14.1 Gbps hardware serial trigger that isolates pattern-dependent effects by locking onto the first occurrence of 8b/10b, 64b/66b, or generic NRZ patterns. It also integrates a built-in bit error detector.
Standard memory depth is 62.5 M points per channel. Optional upgrades include Opt. 10XL (125 M points), Opt. 20XL (250 M points), and Opt. 50XL (1 G points per channel), allowing signal capture durations up to 10 ms at the highest sample rate.
Standard units measure 157 mm (6.0 in) high, 452 mm (17.8 in) wide, and 553 mm (21.8 in) deep with an instrument weight of 19 kg (42 lbs). Rackmount configurations measure 177 mm (7.0 in) high, 440 mm (19.75 in) wide, and 523 mm (20.6 in) deep.
