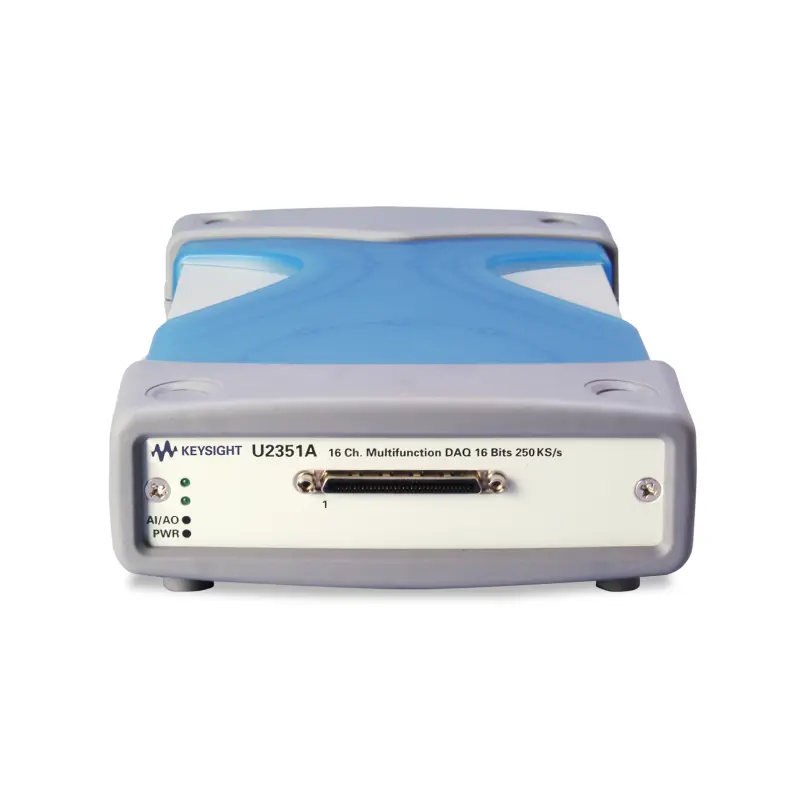

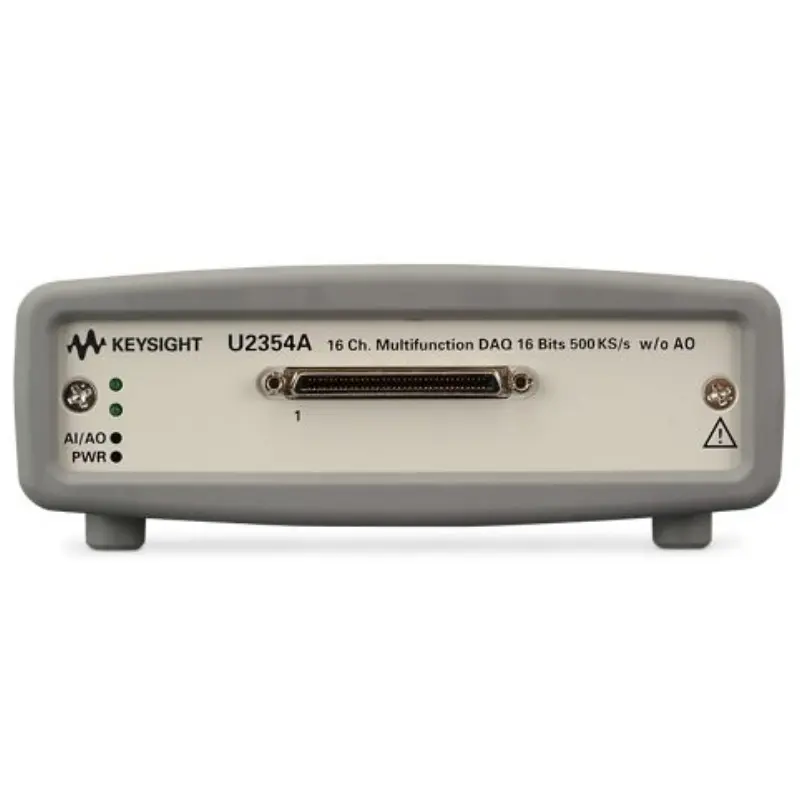

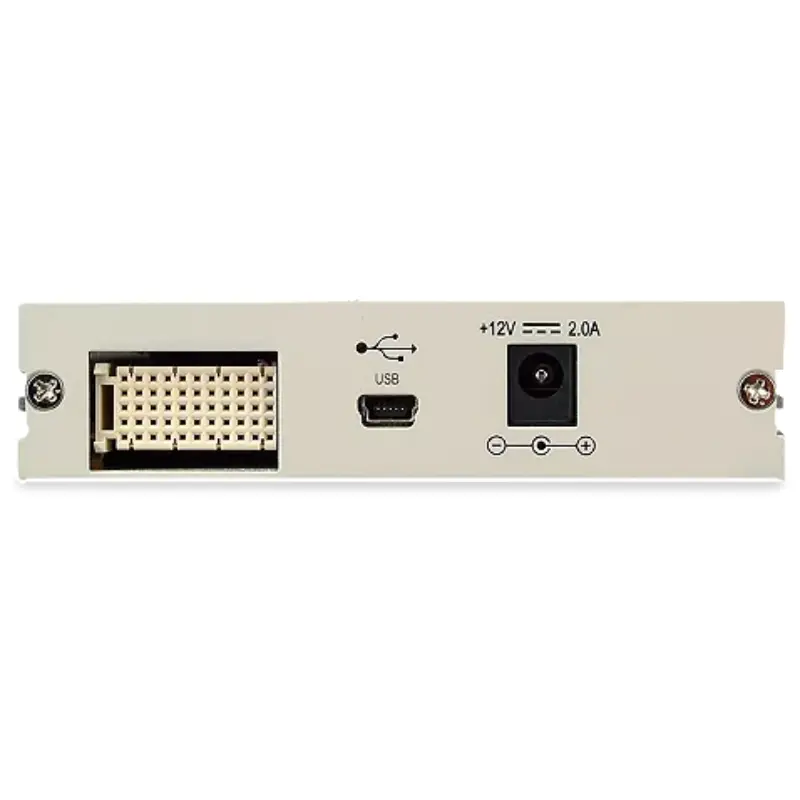

A high-performance PC data-acquisition solution is provided by the Keysight Technologies, Inc. U2300A Series USB Modular Multifunction Data Acquisition (DAQ) devices. There are two families of U2300A Series DAQ devices: four models of the basic multifunction DAQ and three models of the high density multifunction DAQ. Applications for the U2300A Series DAQ devices are found in both industrial and educational settings. The quick sampling rates of the U2300A series DAQ, which can be used in both industrial and educational settings, make it ideal for research and development, manufacturing, and design validation designers.
| Remote interface |
Hi-Speed USB 2.0
USBTMC-USB488¹
|
| Power requirement |
+12 VDC (TYPICAL)
2 A (MAX) input rated current
|
| Power consumption | +12 VDC, 550 mA maximum |
| Operating environment |
|
| Storage compliance | -20 °C to 70 °C |
| Shock and vibration | Tested to IEC/EN 60068-2 |
| IO connector | 68-pin female VHDCI Type |
| Module dimension (W × D × H) |
120.00 mm × 182.40 mm × 44.00 mm (with plastic casing)
105.00 mm × 174.54 mm × 25.00 mm (without plastic casing)
|
| Terminal block dimension | 103.00 mm × 85.20 mm × 42.96 mm |
| Weight |
565 g (with plastic casing)
400 g (without plastic casing)
|
The Keysight U2300A Series consists of two product families: four models of the basic multifunction DAQ and three models of the high density multifunction DAQ.
The U2300A Series connects via Hi-Speed USB 2.0 and supports the USBTMC-USB488 standard protocol.
The device operates with a typical power requirement of +12 VDC (2 A maximum input rated current) and has a maximum power consumption of +12 VDC, 550 mA.
The module features a standard 68-pin female VHDCI Type I/O connector for external interfacing.
The device is rated for indoor use with an operating temperature between 0 °C and +55 °C, relative humidity from 15% to 85% RH (non-condensing), and altitudes up to 2,000 meters.
With plastic casing, it measures 120.00 mm × 182.40 mm × 44.00 mm and weighs 565 g. Without plastic casing, it measures 105.00 mm × 174.54 mm × 25.00 mm and weighs 400 g.
