China Druck DPI 880 Manufacturers, Supplier

1 / 2

China Druck DPI 880 Manufacturers, Supplier

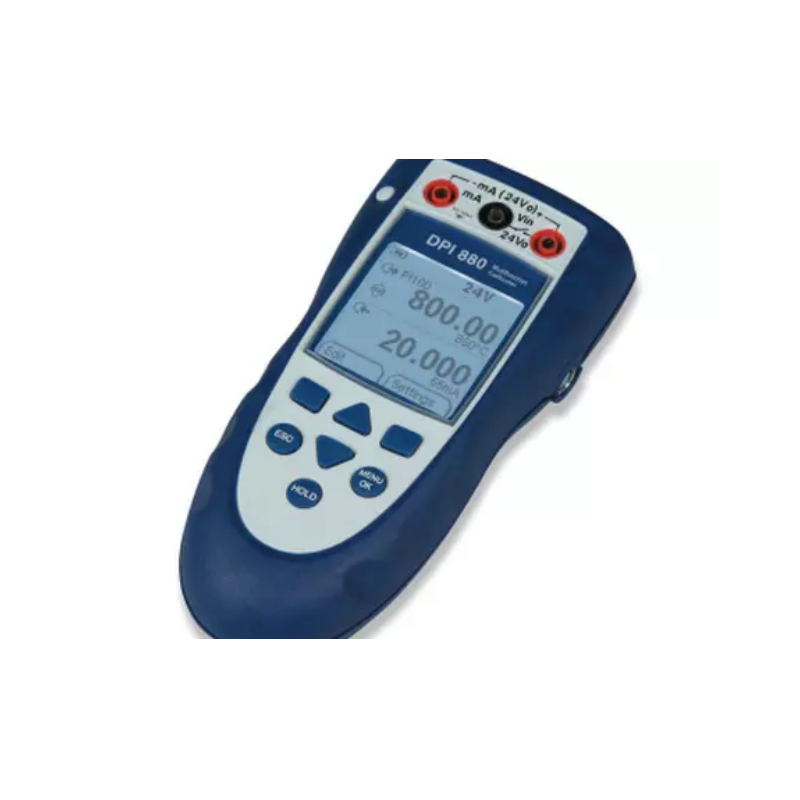

For testing, adjusting, and calibrating almost any process parameter, the DPI 880 multi-function calibrator is an incredibly small and easy-to-use device. It records switch values, supplies 24 V loop power, and measures, sources, and simulates mA, mV, V, RTDs, thermocouples, ohms, frequency, pulses, and pressure.

Send Inquiry

Product Description

Key Technical Performance & Diagnostics

Technical Performance & Signal Handling

Versatile Signal Processing: Generates and monitors mA, mV, Volts, resistance, frequency, and pulse counts.
Comprehensive Temperature Simulation: Supports input/output for 8 distinct RTD types and 12 thermocouple varieties.
Extensive Pressure Integration: Compatible with 32 interchangeable modules, spanning ranges from 10 in H₂O up to 10,000 psi (25 mbar to 700 bar).
Synchronous Measurement: Features dual-channel capability for concurrent reading of multiple parameters.

Advanced Testing & Diagnostics

Automated Verification: Built-in routines for streamlined switch testing and pneumatic/hydraulic leak detection.
Integrated Power & Connectivity: Equipped with a 24V internal loop supply and a dedicated HART® resistor for smart transmitter communication.
Intelligent Data Logging: Archives up to 1,000 time-stamped data points via an onboard real-time clock.

Ergonomics & Build Quality

Ruggedized Construction: Engineered with a weatherproof, heavy-duty chassis for demanding field environments.
Enhanced Visibility: Features an expansive, high-contrast backlit screen for low-light conditions.
Portable Design: Lightweight, streamlined form factor optimized for single-handed navigation.
Seamless Expansion: Utilizes "Plug-and-Play" technology for immediate recognition of IDOS universal pressure sensors.

Technical Specifications

Electrical connection	4mm sockets and mini-jack thermocouple socket
Calibrated temperature	50°F to 86°F (10°C to 30°C) unless otherwise stated
Operating temperature	14°F to 122°F (-10°C to 50°C) unless otherwise stated Temperature coefficient: 14°F to 50°F, 86°F to 122°F: 0.0017%FS/°F (-10°C to 10°C, 30°C to 50°C: 0.003%FS/°C) For ohms: 14°F to 50°F, 86°F to 122°F: 0.0028%FS/°F (-10°C to 10°C, 30°C to 50°C: 0.005%FS/°C)
Storage temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	0% to 90% non-condensing, Def Stan 66-31, 8.6 Cat III
Shock and vibration	BS EN61010:2001, Def Stan 66-31, 8.4 Cat III
EMC	BS EN61326-1:1998 + A2:2001
Safety	Electrical BS EN61010:2001. Pressure Equipment Directive (PED), Class SEP. CE marked
Display	Graphic LCD with backlight
Batteries	3 AA alkaline, >50 hours measure, >10 hours 24V source
Size (L x W x H) & Weight	7.1 in x 3.3 in x 2 in (180 mm x 85 mm x 50 mm), 15 oz (425 g)

Manuals & Resources

Druck DPI 880 Multi-Function Calibrator

Druck DPI 880 Multi-Function Calibrator Datasheet - EN

Download Resource

Key Vocabulary Enhancements Used

Sources and reads: Generates and monitors / Signal processing

Simulates: Input/Output support

32 pressure modules: Interchangeable modules / Sensors

Simultaneous: Synchronous / Concurrent

Robust and weatherproof: Ruggedized / Heavy-duty chassis

Compact/Simple: Streamlined / Optimized form factor

Frequently Asked Questions

What types of signals can the Druck DPI 880 generate and monitor?

The Druck DPI 880 provides comprehensive signal processing capability to generate and measure mA, mV, Volts, resistance, frequency, and pulse counts, alongside dual-channel capability for concurrent readings.

Which temperature sensors are compatible with this calibrator?

It features extensive temperature simulation and reading capabilities, supporting input and output for 8 distinct RTD types and 12 different thermocouple types.

How does external pressure module integration work?

The DPI 880 utilizes plug-and-play technology compatible with 32 interchangeable IDOS pressure modules, covering measurement spans from 10 in H₂O up to 10,000 psi (25 mbar to 700 bar).

Does the DPI 880 provide internal power for transmitters?

Yes, it features an integrated 24V loop power supply along with a dedicated HART® resistor to facilitate effortless communication and testing of smart transmitters.

What is the battery life expectancy in standard field operations?

Powered by 3 standard AA alkaline batteries, the unit delivers over 50 hours of continuous measurement operation and more than 10 hours when operating with a 24V loop source.

What diagnostics routines are pre-programmed into the instrument?

The instrument includes automated routines for switch testing, pneumatic or hydraulic leak detection, and built-in data logging capable of storing up to 1,000 time-stamped records.
