Best Tektronix Mixed Domain Oscilloscope MDO4000C MD04014 D04024 -MD04054 MD04056 MD04104 Manufacturers, Exporter

1 / 5

Best Tektronix Mixed Domain Oscilloscope MDO4000C MD04014 D04024 -MD04054 MD04056 MD04104 Manufacturers, Exporter

The MDO4000 is the most potent mixed domain oscilloscope, with up to six instruments, including a function generator and an integrated spectrum analyzer. It can synchronize RF, analog, and digital channels, which gives you unparalleled insight into your design.

Send Inquiry

Product Description

Overview

Beyond merely having a strong scope Today's engineering designs combine wireless interfaces, serial buses, and processors in a sophisticated way. An extendable platform and a reliable Tektronix oscilloscope form the foundation of the MDO4000C. Adapt it to your testing requirements. To assist in addressing complicated design challenges, incorporate 16 logic channels, a 50 MHz arbitrary/function generator, protocol analysis, and an integrated true hardware 3 or 6 GHz spectrum analyzer.

Highlights

More than 125 trigger combinations in the time AND frequency domains make up the integrated triggered acquisition system.

Wave Inspector® controls for a 20 Mpoint record duration

Real spectrum analysis is made possible by true spectrum analyzer hardware.

Expandable functionality ensures applicability well into the future

Specifications & Features

Key Performance Specifications

4 analog channels
1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models
16 digital channels
MagniVu™ high - speed acquisition provides 60.6 ps fine timing resolution
1 RF channel
50 kHz to 3 GHz or 50 kHz to 6 GHz frequency range models
Ultra - wide capture bandwidth ≥1 GHz
Standard passive voltage probes 3.9 pF capacitive loading and 500 MHz or 1 GHz bandwidth

Key Features

Mixed - domain analysis: Time - correlated analog, digital, and RF signal acquisitions in a single instrument
Wave Inspector® controls provide easy navigation of time - correlated data in both the time and frequency domains
Amplitude, frequency, and phase vs. time waveforms derived from RF input
Selectable spectrum time to discover and analyze how RF spectrum changes over time - even on a stopped acquisition
Spectral analysis: Dedicated front - panel controls for commonly performed tasks
Automated peak markers identify frequency and amplitude of spectrum peaks; Manual markers enable non - peak measurements
Trace types include: Normal, Average, Max Hold, and Min Hold
Detection types include: +Peak, -Peak, Average, and Sample

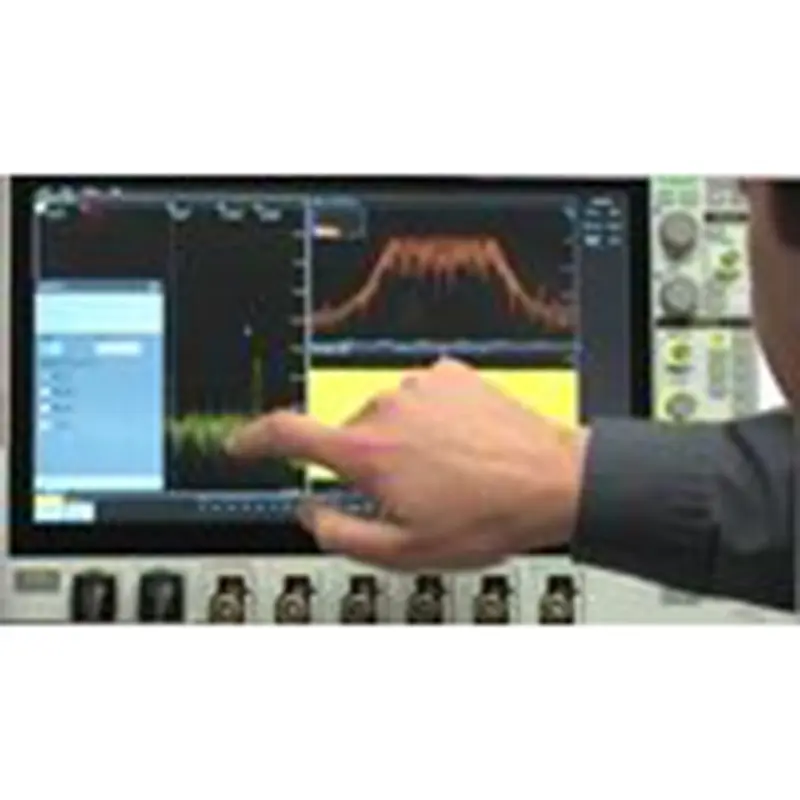

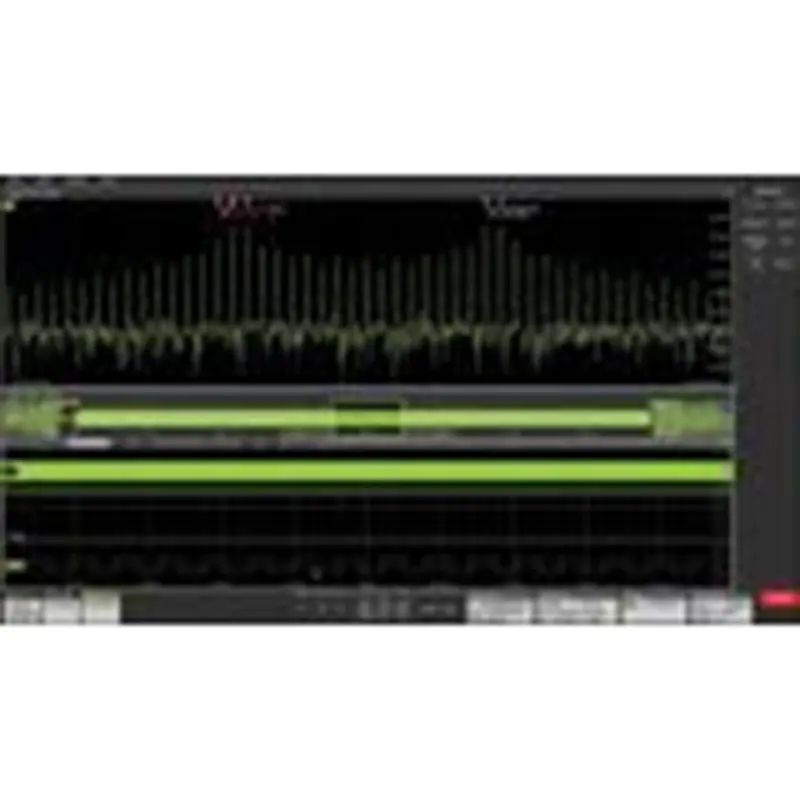

Spectrogram display enables easy observation and insight into slowly changing RF phenomena
Automated measurements include: Channel Power, Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW)
Trigger on RF power level; Triggered or Free Run spectral analysis
Optional serial triggering and analysis - serial protocol trigger, decode, and search for I²C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS - 232/422/485/UART, MIL - STD - 1553, and I²S/LJ/RJ/TDM

Models Comparison

Parameter	MD04014 - 3	MD04024 - 3	MD04054 - 3	MD04056 - 4	MD04104 - 3	MD04106 - 4
Analog channels	4	4	4	4	4	4
Analog channel	100 MHz	350 MHz	500 MHz	500 MHz	1 GHz	1 GHz
Rise time	3.5 ns	1 ns	700 ps	700 ps	350 ps	350 ps
Sample rate (1 ch)	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s	5 GSa/s	5 GSa/s
Sample rate (4 ch)	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s	2.5 GSa/s	5 GSa/s	5 GSa/s
Record length (1 ch)	20M	20M	20M	20M	20M	20M
Record length (4 ch)	20M	20M	20M	20M	20M	20M
Digital channels	16	16	16	16	16	16
RF channels	1	1	1	1	1	1
RF channel frequency	50 kHz - 3 GHz	50 kHz - 3 GHz	50 kHz - 3 GHz	50 kHz - 6 GHz	50 kHz - 3 GHz	50 kHz - 6 GHz

Delivery Information

Display: 10.4 in. (264 mm) bright XGA color display

Dimensions: Small footprint and lightweight- Only 5.8 in. (147 mm) deep and 11 lb. (5 kg)

Manuals & Resources

Tektronix Mixed Domain Oscilloscope MDO4000C MD04014 D04024 -MD04054 MD04056 MD04104

TEKTRO~1.PDF

Download

TEKTRO~2.PDF

Download

Frequently Asked Questions

What frequency range is supported by the integrated RF channel?

The integrated RF spectrum analyzer channel offers models with frequency ranges from 50 kHz to 3 GHz or 50 kHz to 6 GHz, providing an ultra-wide capture bandwidth of ≥1 GHz.

What is the timing resolution of the digital channels?

The 16 digital channels utilize MagniVu™ high-speed acquisition to deliver a fine timing resolution of 60.6 ps.

Which serial protocol buses are supported for triggering and analysis?

Optional serial triggering, decode, and search capabilities support I²C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I²S/LJ/RJ/TDM.

What automated RF measurements are integrated into the spectral analysis?

Automated measurements include Channel Power, Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW), with automated and manual peak markers available.

What are the physical dimensions and screen specifications?

The instrument features a 10.4-inch (264 mm) bright XGA color display and a compact footprint that measures only 5.8 inches (147 mm) in depth, weighing just 11 lb. (5 kg).

What are the record length and maximum sampling rates available?

The system provides a 20 Mpoint record length across 1 and 4 channels with sample rates up to 2.5 GSa/s or 5 GSa/s, managed by Wave Inspector® controls.
