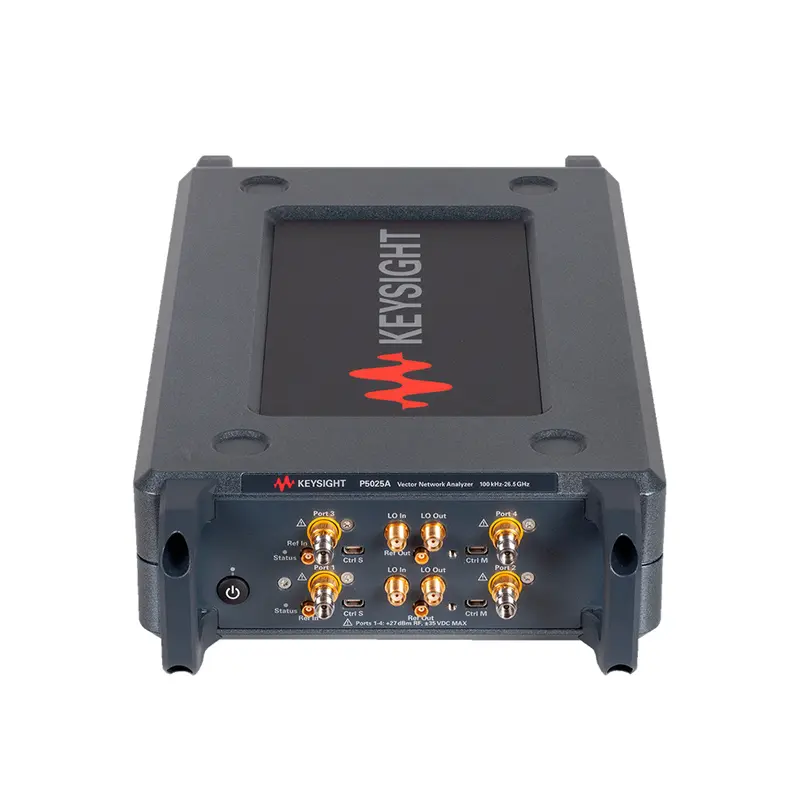

Obtain a frequency span of 9 kHz to 20 GHz in a flexible, high-performance compact VNA.
Select from an extensive variety of measurement uses to gain further understanding of your RF test.
Acquire the identical intuitive GUI as Keysight’s high-performance PNAs.
Perform calibration rapidly with compatibility for all Keysight electronic calibration (ECal) modules.
| Description | Specification | Typical |
|---|---|---|
| Frequency resolution | 1 Hz | -- |
| Frequency accuracy | ± 7 ppm (25 ± 5 °C) | -- |
| Frequency stability | -- | ± 7 ppm ± 3 ppm/year maximum |
| Description | Specification |
|---|---|
| System IF bandwidth range | 1 Hz to 15 MHz |
| Number of points | 1 to 100,003 |
| Description | Details |
|---|---|
| Test port |
Connector type: 3.5 mm female (P5000A to P5005A, P5020A to P5025A) 2.4 mm female (P5006A, P5007A, P5026A, P5027A) 1.85 mm female (P5008A, P5028A) Center pin recession: 0.003 inch (characteristic) Impedance: 50 Ω (nominal) |
| External reference input |
Connector type: MCX Input amplitude range: -3 to +10 dBm Input frequency: 10 MHz ± 10 ppm Impedance: 50 Ω (nominal) |
| External reference output |
Connector type: MCX Output amplitude range: 0 to +3 dBm Output frequency: 10 MHz ± 7 ppm Impedance: 50 Ω (nominal) |
| Description | Details |
|---|---|
| USB ports |
Type A female (USB 2.0 only, Downstream - facing) Type C female (USB 3.0 only, Upstream - facing) |
| Power connector | Kycon KPJX - 4S - S DC power connector (4 pins) |
| 10 MHz In (SMB male) | 10 MHz ± 25 ppm (not used by Streamline Series VNA) |
| 10 MHz Out (SMB male) | 10 MHz ± 25 ppm (not used by Streamline Series VNA) |
| Trig 1 (SMB male) | 3.3 V CMOS (TTL compatible, 5 V tolerant) |
| Trig 2 (SMB male) | 3.3 V CMOS (TTL compatible, 5 V tolerant) |
| Description | Specification |
|---|---|
| P5000A to P5004A, P5020A to P5024A | 0 dBm |
| P5005A to P5008A, P5025A to P5028A | -15 dBm |
| Dimensions, weight | 2 - port | 4 or 6 - port |
|---|---|---|
| Width | 176 mm (6.93 in.) | 176 mm (6.93 in.) |
| Height | 48 mm (1.89 in.) | 68 mm (2.68 in.) |
| Depth | 333 mm (13.11 in.) | 333 mm (13.11 in.) |
| Weight | 1.88 kg (4.14 lbs) |
2.82 kg (6.22 lbs, 4 - port) 2.98 kg (6.57 lbs, 6 - port) |
| Dimensions, weight | 2 - port | 4 - port |
|---|---|---|
| Width | 176 mm (6.93 in.) | 176 mm (6.93 in.) |
| Height | 48 mm (1.89 in.) | 68 mm (2.68 in.) |
| Depth | 333 mm (13.11 in.) | 333 mm (13.11 in.) |
| Weight | 2.02 kg (4.45 lbs) | 3.18 kg (7.01 lbs) |

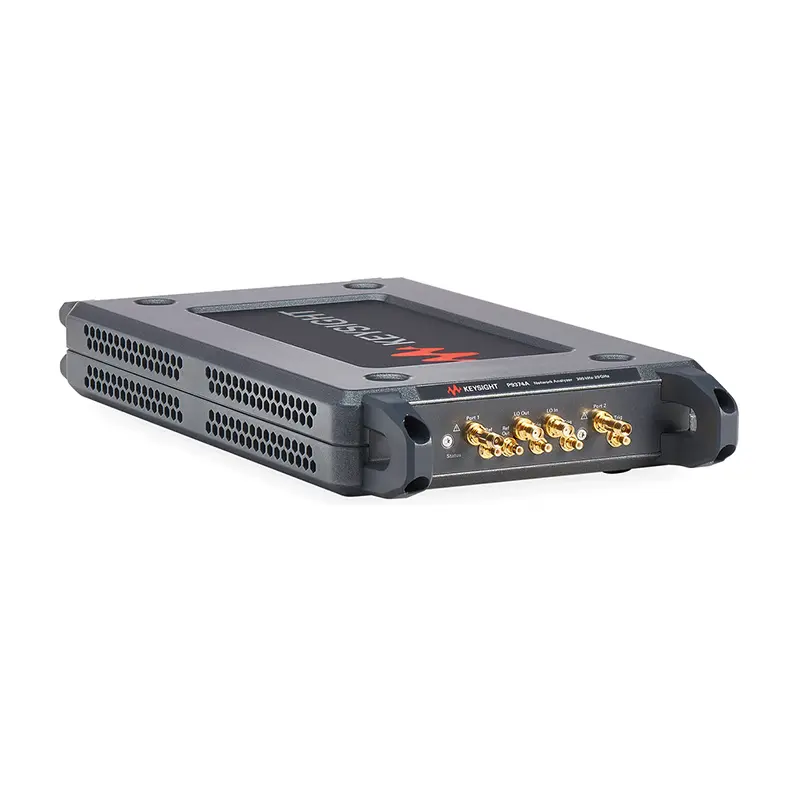

The Streamline Series provides a flexible, high-performance frequency span ranging from 9 kHz up to 20 GHz (such as the P5004A model), capable of covering diverse RF measurement applications.
Depending on the model range: 3.5 mm female for P5000A–P5005A and P5020A–P5025A; 2.4 mm female for P5006A, P5007A, P5026A, and P5027A; and 1.85 mm female for P5008A and P5028A. All test ports have a 50 Ω nominal impedance.

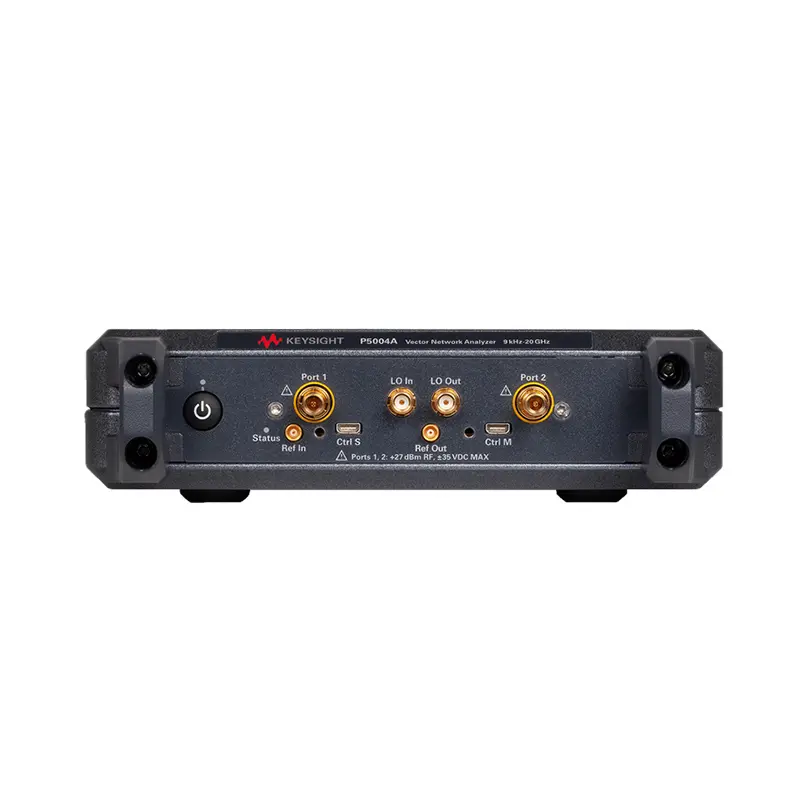

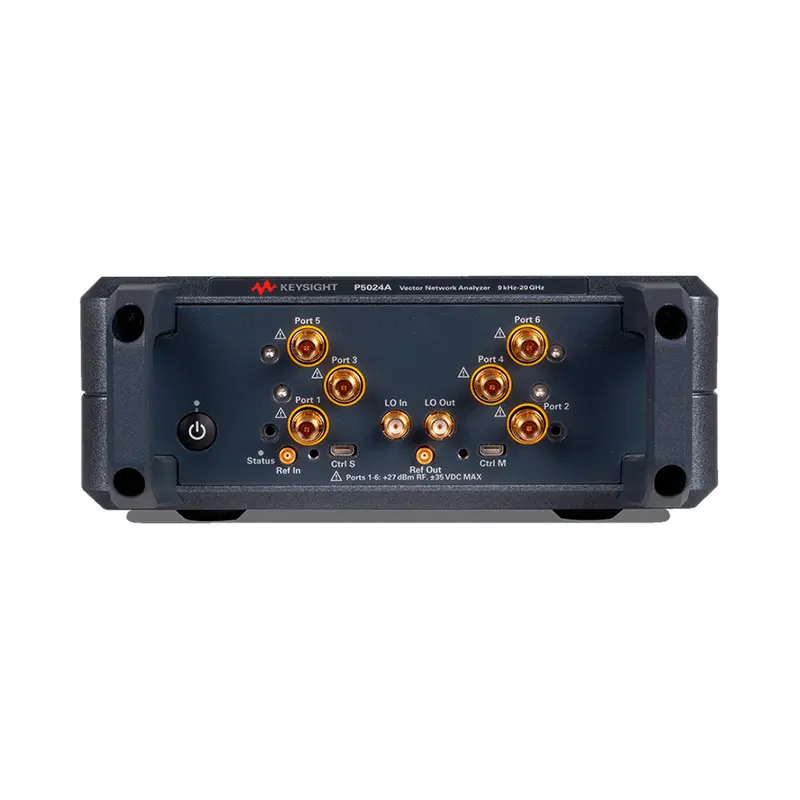

The front panel includes MCX connectors for both External Reference Input (10 MHz ± 10 ppm, -3 to +10 dBm) and External Reference Output (10 MHz ± 7 ppm, 0 to +3 dBm) with 50 Ω nominal impedance.
Yes, the unit provides full compatibility with all Keysight electronic calibration (ECal) modules to deliver swift, repeatable, and highly precise calibration routines.
The instrument supports a system intermediate frequency (IF) bandwidth ranging from 1 Hz to 15 MHz, alongside customizable trace resolution from 1 to 100,003 measurement points.
The rear panel features an upstream USB 3.0 Type-C interface for host communication, a downstream USB 2.0 Type-A port, dual 3.3 V CMOS TTL-compatible SMB trigger inputs (Trig 1 and Trig 2), and a 4-pin DC power connector.
