| Frequency range | — | 70 MHz to 410 MHz |
| Frequency setting resolution | ILS, VOR | 100 Hz |
| COM, GBAS | 10 Hz | |
| Frequency measurement resolution | — | 1 Hz |
| Preselection filter ranges | standard | 70 MHz to 410 MHz |
| with R&S®EVSG-K23 option | ||
| marker beacon | 74.7 MHz to 75.3 MHz | |
| ILS LLZ, VOR | 108 MHz to 118 MHz | |
| COM 1 | 118 MHz to 145 MHz | |
| ILS GS, COM 2 | — | 220 MHz to 410 MHz |
| Reference frequency, internal | ||
| Accuracy | (time since last adjustment × aging rate) + temperature drift + calibration accuracy | |
| Aging per year | — | 1 × 10⁻⁷ (nom.) |
| Temperature drift (−10°C to +50°C) | — | 1 × 10⁻⁷ (nom.) |
| Achievable initial calibration accuracy | — | 5 × 10⁻⁶ (nom.) |
| Spectral purity / SSB phase noise (frequency = 110 MHz, carrier offset) | ||
| SSB phase noise | 10 kHz | −105 dBc (1 Hz) (typ.) |
| 25 kHz | −115 dBc (1 Hz) (typ.) | |
| 100 kHz | −125 dBc (1 Hz) (typ.) | |
| 1 MHz | −145 dBc (1 Hz) (typ.) | |
The standard frequency range of the instrument spans from 70 MHz to 410 MHz, providing high resolution across ILS, VOR, COM, and GBAS operational bands.

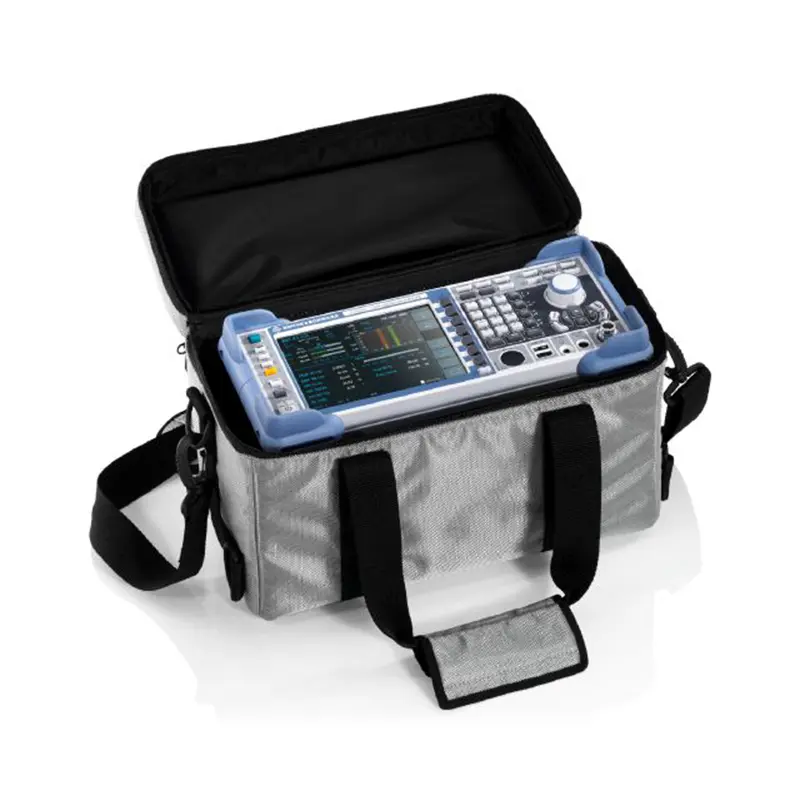

Yes. It features a compact and sturdy lightweight build, internal battery-driven operation, rugged transit weather protection, and is safely transported in a dedicated hard-casing box.
Yes. The system is designed specifically to perform thorough in-depth signal analyses conforming strictly to international ICAO regulations.
The unit measures 342 mm × 157 mm × 200 mm (13.46 in × 6.18 in × 7.87 in) and weighs 5.1 kg (11.25 lb), making it highly portable.
With the optional R&S®EVSG-K23 preselection filter, dedicated bands are provided for Marker Beacon (74.7 to 75.3 MHz), ILS LLZ/VOR (108 to 118 MHz), COM 1 (118 to 145 MHz), and ILS GS/COM 2 (220 to 410 MHz).
Yes. It supports straightforward remote control and integration through standard interfaces along with integrated triggering and synchronization features.
