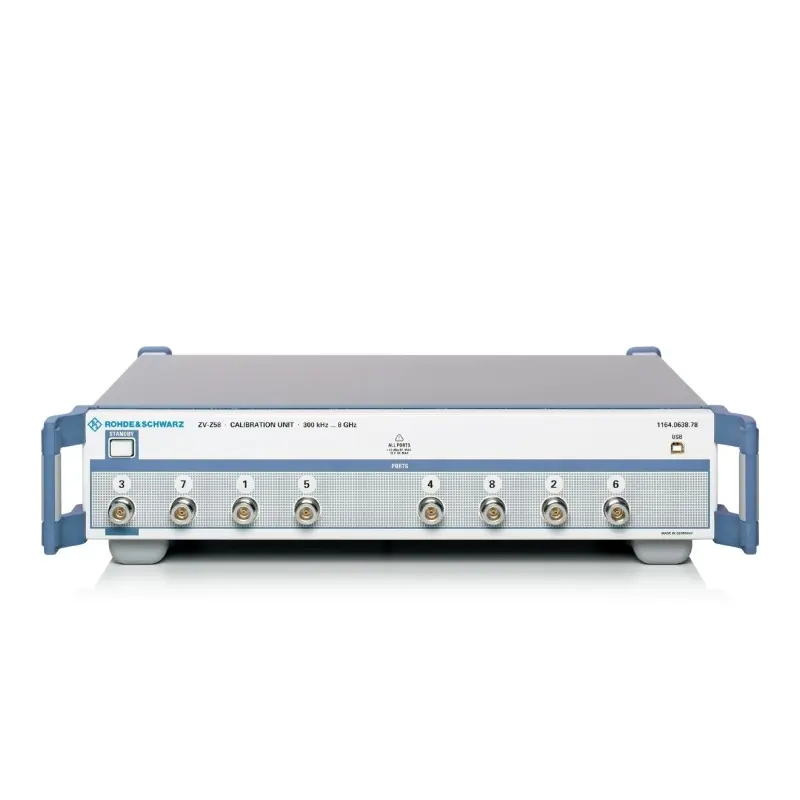

The multiport VNAs R&S®ZNBT8, R&S®ZNBT20, and R&S®ZNBTxx can be quickly and easily calibrated using the R&S®ZV-Z58 and R&S®ZV-Z59 calibration equipment. A whole 6/8 port calibration can be completed with a single keystroke, and up to 6/8 ports can be connected simultaneously (the R&S®ZV-Z5x series also contains the unique R&S®ZN-Z53 unit, 300 kHz to 3 GHz, 2 ports, for calibration in 75 Ω systems).
| Model | Type | Frequency Range | Connector Type |
|---|---|---|---|
| R&S®ZV-Z58 | Calibration unit | 300 kHz to 8 GHz | 3.5 mm (f) |
| R&S®ZV-Z58 | Calibration unit | 300 kHz to 8 GHz | N (f) |
| R&S®ZV-Z59 | Calibration unit | 10 MHz to 20 GHz | 3.5 mm (f) |
| Category | Parameter | Specification |
|---|---|---|
| Temperature loading | Operating temperature range | +5 °C to +40 °C |
| Permissible temperature range | 0 °C to +50 °C | |
| Storage temperature range | –40 °C to +70 °C (in line with IEC 60068-2-1 and IEC 60068-2-2) | |
| Damp heat | Relative humidity | +40 °C at 85 % rel. humidity |
| Mechanical resistance | Vibration test, sinusoidal | 5 Hz to 150 Hz (in line with IEC 60068-2-6) |
| Vibration test, random | 10 Hz to 300 Hz (in line with IEC 60068-2-64) | |
| Shock test | 40 g shock spectrum (in line with IEC 60068-2-27, MIL-STD-810) | |
| Calibration interval | Recommended interval | 1 year |
| EMC, RF emission | Industrial environments | In line with CISPR 11/EN 55011 group 1 class A. Suitable for industrial use. Not for residential/commercial areas unless EN 61000-6-3 is met. |
| EMC, other emissions & immunity | Standard compliance | In line with IEC/EN 61326; emission: class B; immunity: industrial environment |
| Safety | Safety standards | In line with IEC 61010-1, EN 61010-1, UL 61010B-1, CSA C22.2 No. 61010.1 |
| Power supply | R&S®ZV-Z52/Z53/Z54/Z55 | 5 V, 500 mA via universal serial bus (USB) |
| R&S®ZV-Z58 and R&S®ZV-Z59 | 100 V to 240 V (AC) with tolerance ±10%, 50 Hz to 60 Hz with tolerance ±5%, safety class I in line with VDE 411 | |
| Power consumption | R&S®ZV-Z52/Z53/Z54/Z55 | 2.5 W |
| R&S®ZV-Z58 and R&S®ZV-Z59 | 125 W, typ. 20 W |
| Item | Applicable Model | Dimensions / Weight |
|---|---|---|
| Dimensions (W × H × D) | R&S®ZV-Z52, R&S®ZV-Z53, R&S®ZV-Z54, R&S®ZV-Z55 | 121.0 mm × 56.0 mm × 155.0 mm (4.8 in × 2.2 in × 6.1 in) |
| R&S®ZV-Z58 and R&S®ZV-Z59 | 465.1 mm × 108.4 mm × 350.0 mm (18.3 in × 4.3 in × 13.8 in) |
|
| Weight | R&S®ZV-Z52, R&S®ZV-Z53, R&S®ZV-Z54, R&S®ZV-Z55 | 750 g (1.7 lb) |
| R&S®ZV-Z58 and R&S®ZV-Z59 | 5 kg (11 lb) | |
| Shipping weight | R&S®ZV-Z52, R&S®ZV-Z53, R&S®ZV-Z54, R&S®ZV-Z55 | 3 kg (6.6 lb) |
| R&S®ZV-Z58 and R&S®ZV-Z59 | 13 kg (29 lb) |
